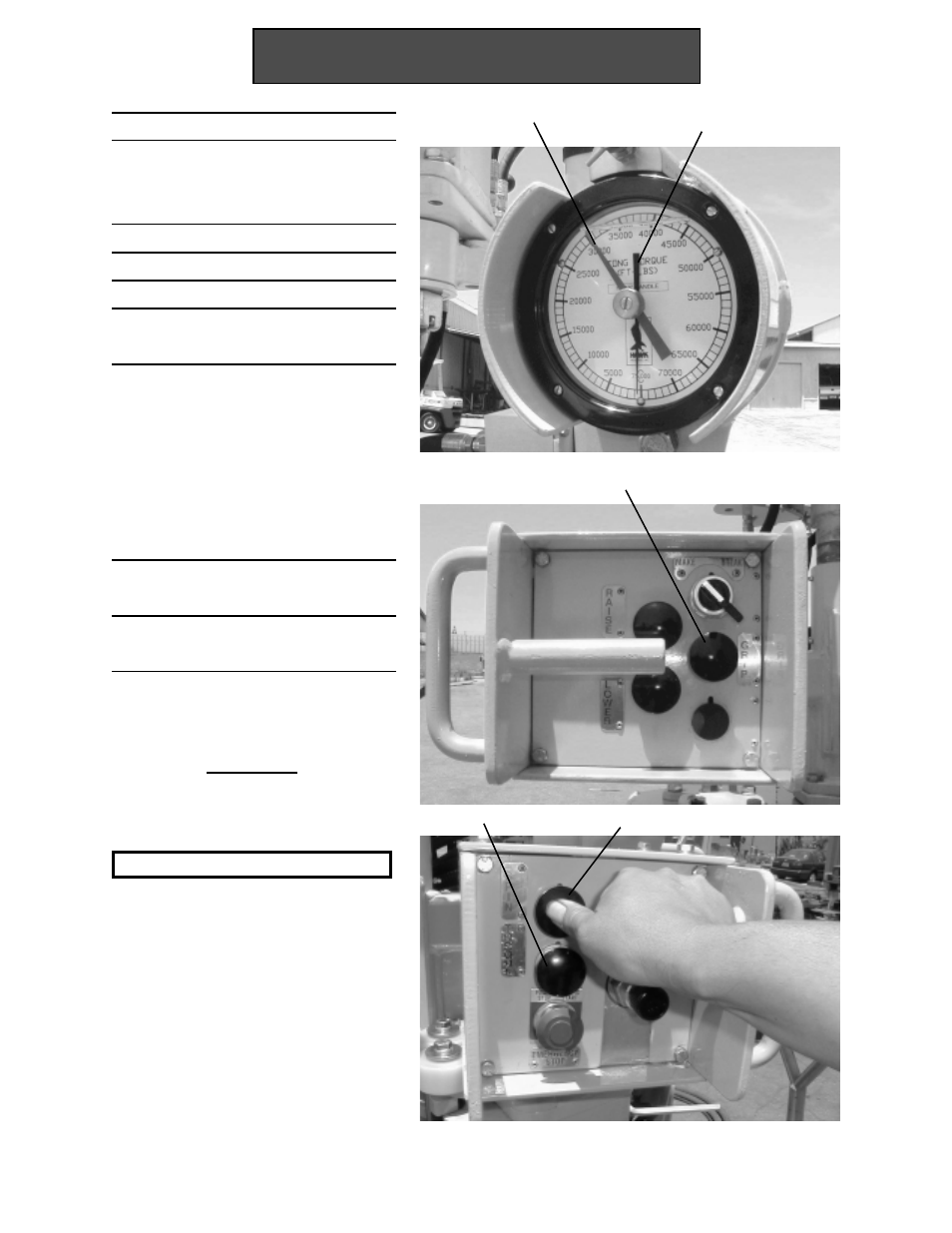

Make Up
1. Follow the steps on pages 14-21.
2. Press and hold Spin (S) until the
stand rotates down to the
shoulder.
3. Release Spin (S).
4. Push in the wrench Grip (G).
5. Push and hold down Torque (T).
6. Watch the Torque gauge needle
(TN).
7. When the Torque gauge needle
rises above and settles at the
desired torque (this rising above
is a normal hydraulic adjustment),
release Torque (T). Immediately
release the Middle wrench Grip
(MG).
8. Release Torque (T). Immediately
release the wrench Grip (G).
9. The Hawkjaw can now be re-
moved from the pipe.
RN
Shown set for 30,000 ft. lbs.
S T
Operation 23
TN
If the Torque cylinder strokes out
before the desired torque is reached,
the Torque gauge needle (TN) will
fall off almost to zero. If this
happens, release Torque (T).
Immediately release the Middle
wrench Grip (MG). Wait for the
Torque cylinder to reset. Push and
hold the Middle wrench Grip (MG).
Repeat Steps 6-10.
LOW TORQUE WARNING SYSTEM
G
WARNING
Make sure the Torque gauge
needle settles at the desired torque.
