7.11. USB

USB (Universal Serial Bus) is a Bus system for the connection of a Computer with external Devices for the exchange

of data. The USB is by the relatively high possible data rates and the automatic recognition of devices and their

characteristics for the connection of nearly all device types of Mouse and Keyboard up to Non removable disks and

Cameras suitably. The number of USB connections of a computer can also increased by USB HUB.

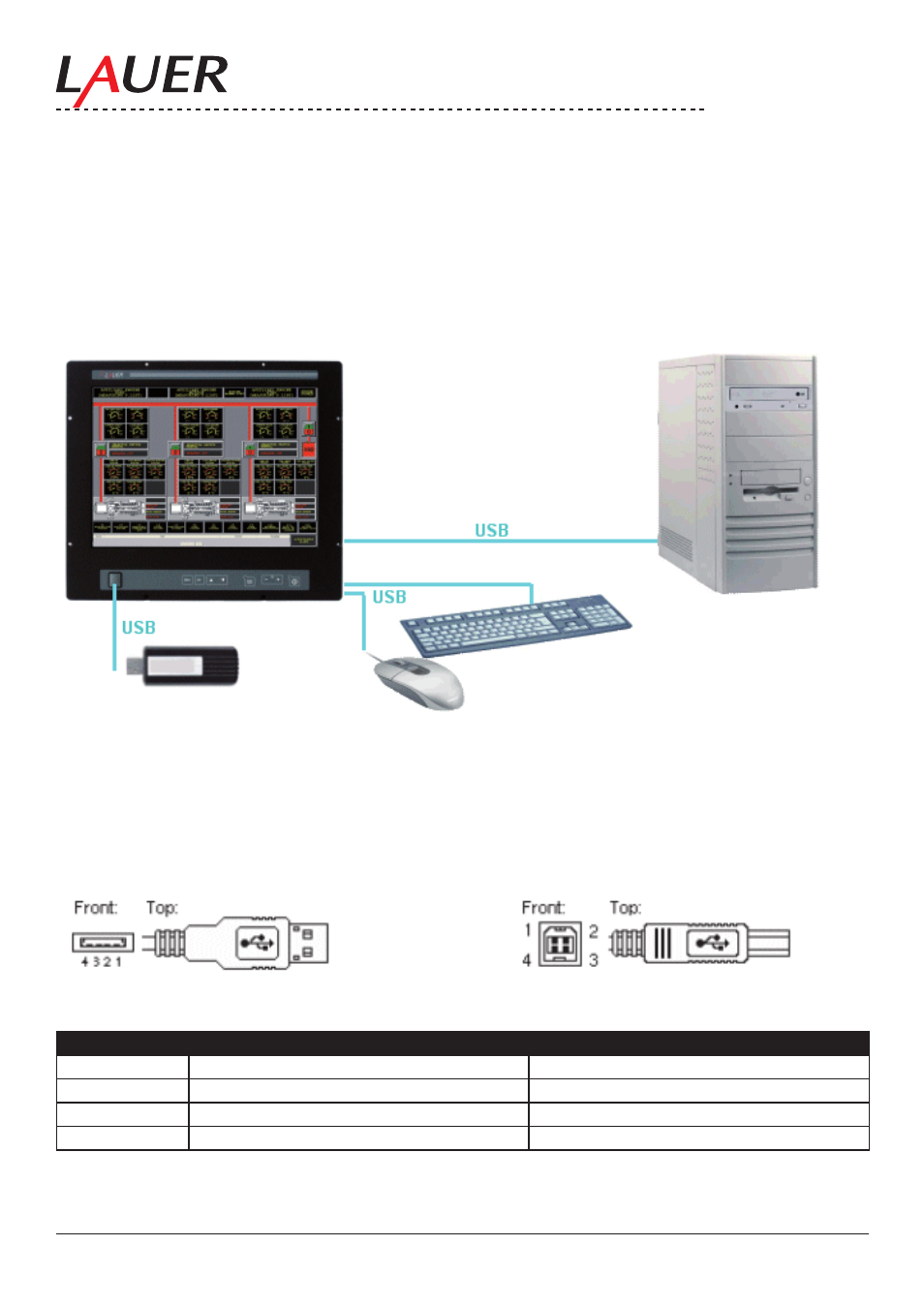

Function:

11 = USB (PC)

“connect through” function of the USB interface of the PC to the monitor front

12 = USB-A / USB-B

USB HUB

Note:

The distances of individual devices is without amplifier for max. 5m appropriate.

7.12. USB connection

Function

Description

VBUS

+5 VDC

D-

Data -

D+

Data +

GND

Ground
