The OSD varies depending upon the straight represented signal source. The following

chapters describe once OSD functionality with represented RGB (VGA) signal and video (FBAS, s-video) signal.

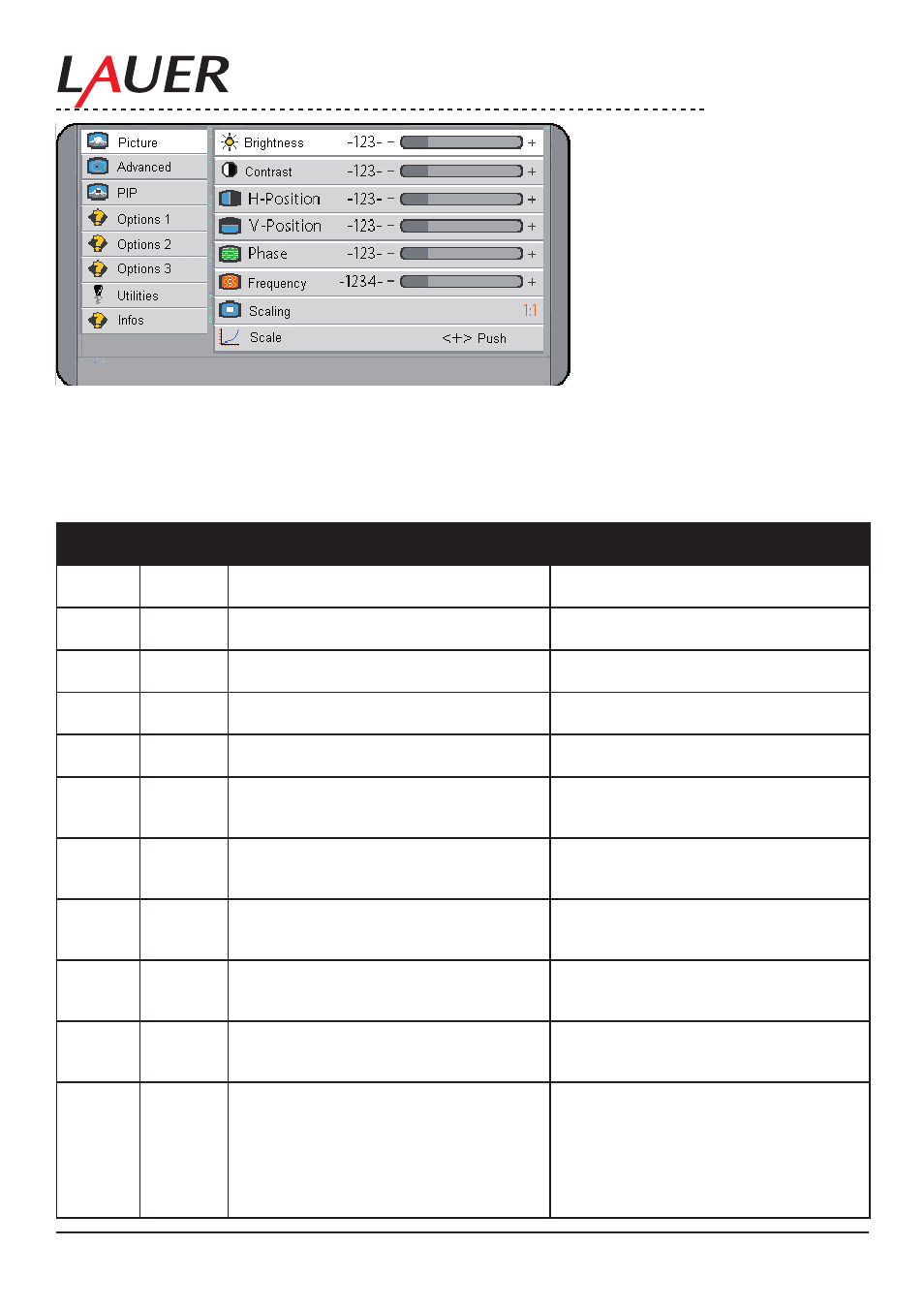

6.4.3. Structure of the OSD menu (RGB)

Main

menue

Function

Adjusting/setting/range of adjustment

Description


Brightness Range of adjustment: 0 to 100 over adjust-

ment keys (UP / DOWN)

Brightness adjustment

Contrast

Range of adjustment: 0 to 100 over adjust-

ment keys (UP / DOWN)

Contrast adjustment

H Position Range of adjustment: 0 to 100 over adjust-

ment keys (UP / DOWN)

Picture in horizontal direction shift

V-Position Range of adjustment: 0 to 100 over adjust-

ment keys (UP / DOWN)

Picture in vertical direction shift

Phase

Range of adjustment: 0 to 31 over adjust-

ment keys (UP / DOWN)

Phase of the input signal adjust

Frequency Range of adjustment:950 to 1050 (picture-

dependently)over adjustment keys (UP /

DOWN)

Frequency of the input signal adjust

Scaling

Format filling; (correct aspect ratio); 1:1

representation

Fix, pre-defined scaling of the pictureIf „va-

riable“ is activated, the setting can be made

manually.

Scale

dependent on resolution of the input signal

Actively only if the function „scaling“ is ad-

justed „variable“. Free, nonlinear scaling of

the picture

Advanced Sharpness 1, 2, 3, 4, 5

Sharpness of the picture by choice one of

the five sharpness degrees(Filter). 1=sharp

and 5= smoothly

Gamma

Linear or CRT

Gamma curve correctionColor values are

provided with a certain factor and passed on

to the display

Color tem-

perature

5000 - 6500 – 9300 - VAR

Desired color temperature and/or color

shadeThree firmly defined and a freely

adjustable color temperature are selectable.

If „VAR“ is activated for R,G, and B, in each

case an adjusting bar is shown. Range of

adjustment: 0 to 100 % (50% factor 1 corre-

sponds)
