7.6. DVI

DVI (digital Visual interface) represents an all digital transmission of video data. Thereby become the quality (which

losses with the transformation of digital data into a analog video signal - and with digital image replication devices with

the transformation back in the digital signal) repaired.

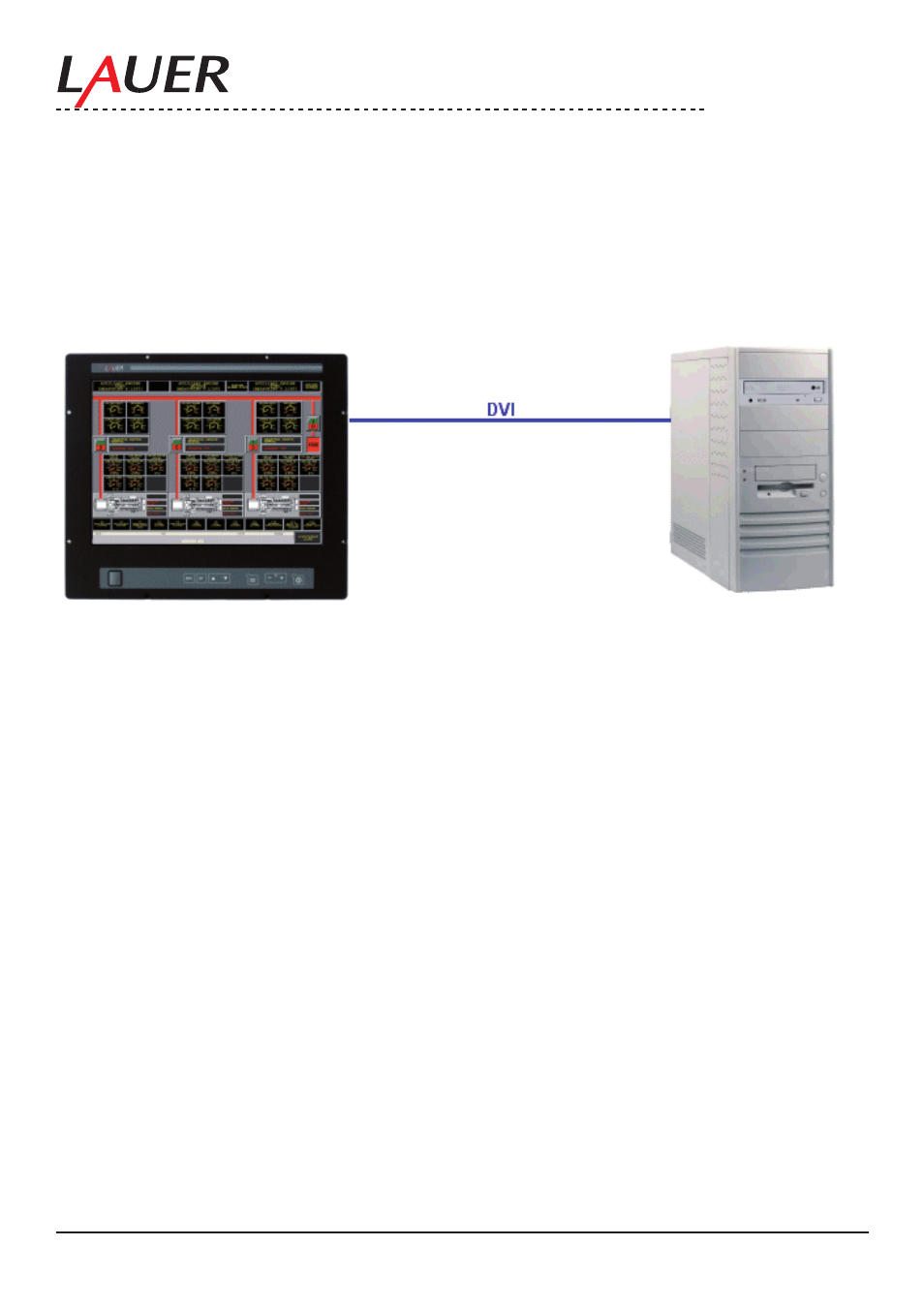

Function: Connection between PC (first video source) and monitor to the transmission the video data

Note:

The selection the videos source(s), synchronization, image position, window position as well as further settings are

accomplished in the OSD menu.

DVI: Technical data:

Transmission of video data over two TDMS links and in each case 3 channels

Maximum pixel clock per channel: 330 MHz

Data transmission rate up to 1,65 Gbit/s

Resolution when using DVI monitors: 2048 x of 1536 pixels

Single Link up to 1600 x 1200 pixel

Dual Link up to 2048 x 1536 pixel
