7.5. VGA

VGA is the abbreviation for video Graphics adapter or video Graphics array. It defines a computer graphic standard

(EISA 1987), concrete combinations of Picture resolution and color‘s number (bit depth) as well as repetition frequen-

cy and is practically identical to the

MCGA (Multicolor Graphics adapter) of IBM. On the other hand it stands also

simply for the resolution 640 × 480 Pixels (aspect ratio 4:3) independently of other parameters.

Function: Connection between PC (first video source) and monitor to the transmission the video data

Note:

The selection the videos source(s), synchronization, image position, window position as well as further settings are

accomplished in the OSD menu.

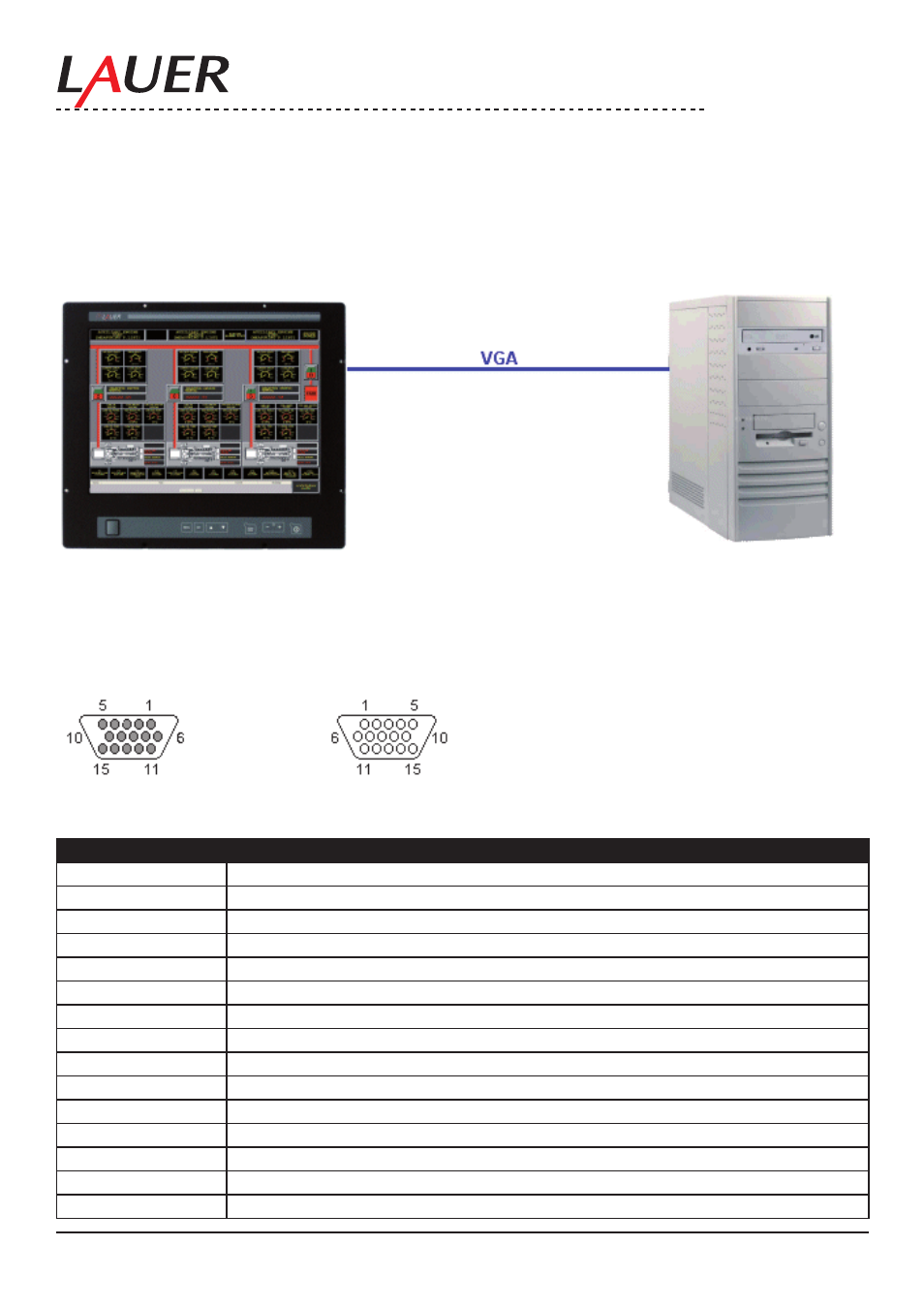

7.5.1. VGA connection

VGA- Connector

VGA-Connector

(Monitor = 15-pol, female)

(15-pol, male)

Function

Red

Green

Blue

Monitor ID 2

05
06

GND

Monitor ID 0

Monitor ID 1

H-Sync

V-Sync

–
