6.5. Front USB connection

The front USB connection (9) is to connect directly devices e.g. keyboards, mouse, Memory stick and a fast and

simply operation and/or data handling. If the USB is not used, then this is locked with a rubber cap and thus IP65

protected.

See also chapter interfaces USB

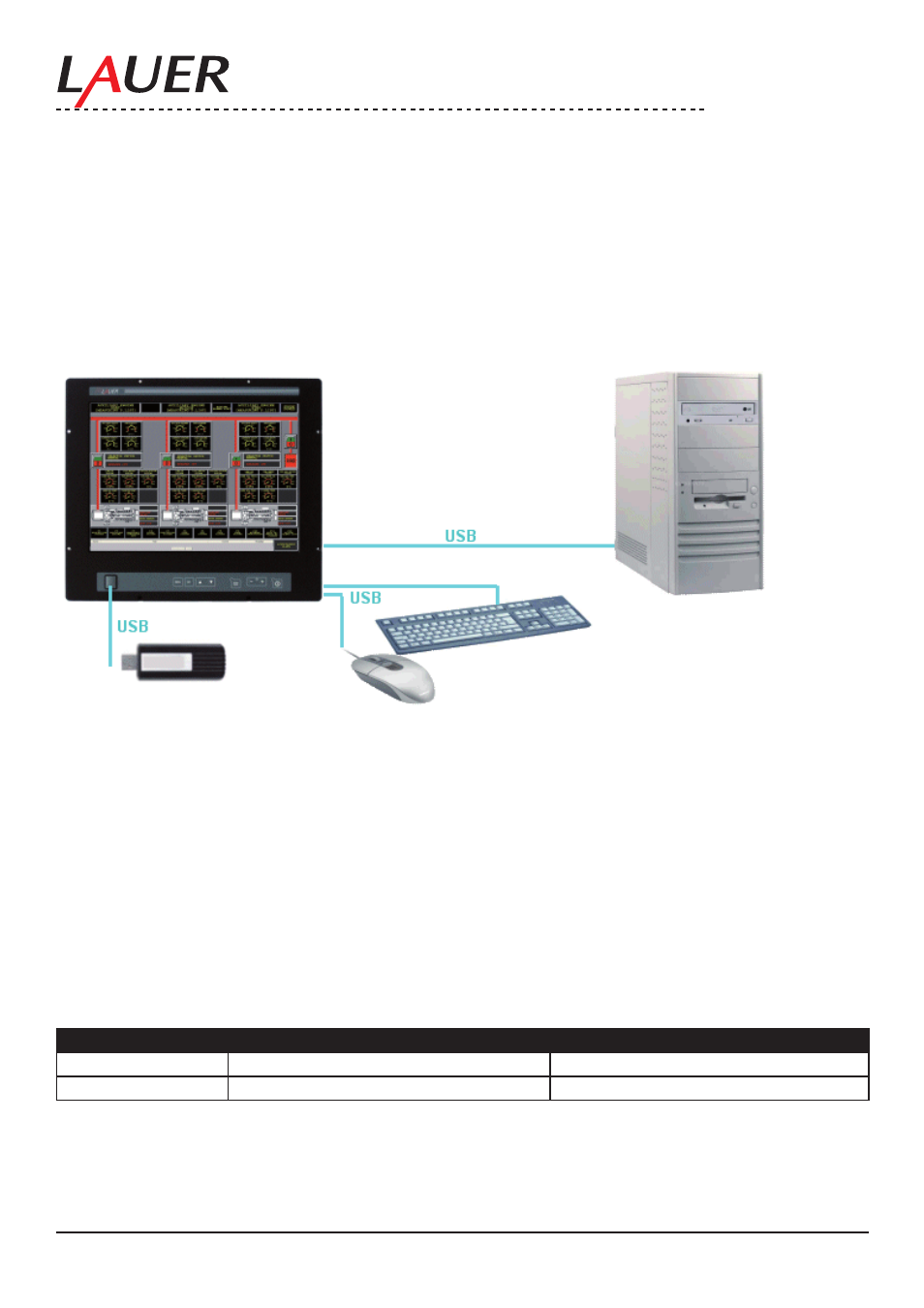

By the interface (11) = USB (PC) the monitor is connected with the PC and thus a connection is realized from the PC

to the monitor front.

Moreover a USB HUB 2.0 is available on the back for further devices.

6.6. Dimming

For the dimming most different possibilities are available:

1. Dimming over the front keys

2. Dimming remote controlled over serial interface as well as over Ethernet

3. Dimming over potentiometers directly attached to the analog input

Characteristic:

The control - LED‘s of the keys are dim linear to the display.

Dim values

Dim value

Display

Function

Darkly + backlight off

255

100%

Brightly

See also chapter “Interfaces and funktion” as well as chapter “programming”.
