7.10. LAN / Ethernet (RJ45)

Ethernet is one frame based computer cross-linking technology for local networks (LAN). It defines cable types and

signaling for the bit transmission layer (physical layer) and package formats and protocols for the medium access

supervision (Media Access Control, MAC) Link layer of the OSI Models. Ethernet is as far as possible in that IEEE

standard 802.3 standardizes. Ethernet can be the basis for network protocols , like e.g. TCP/IP .

Function: Connection between PC and monitor to configure, control and read status.

Functions such as status read (firmware, version, display ID…), control (brightness, backlight, potentiometer…) as

well as configure (IP address, subfunctions of the OSD menu…) are made available. (see chapter programming)

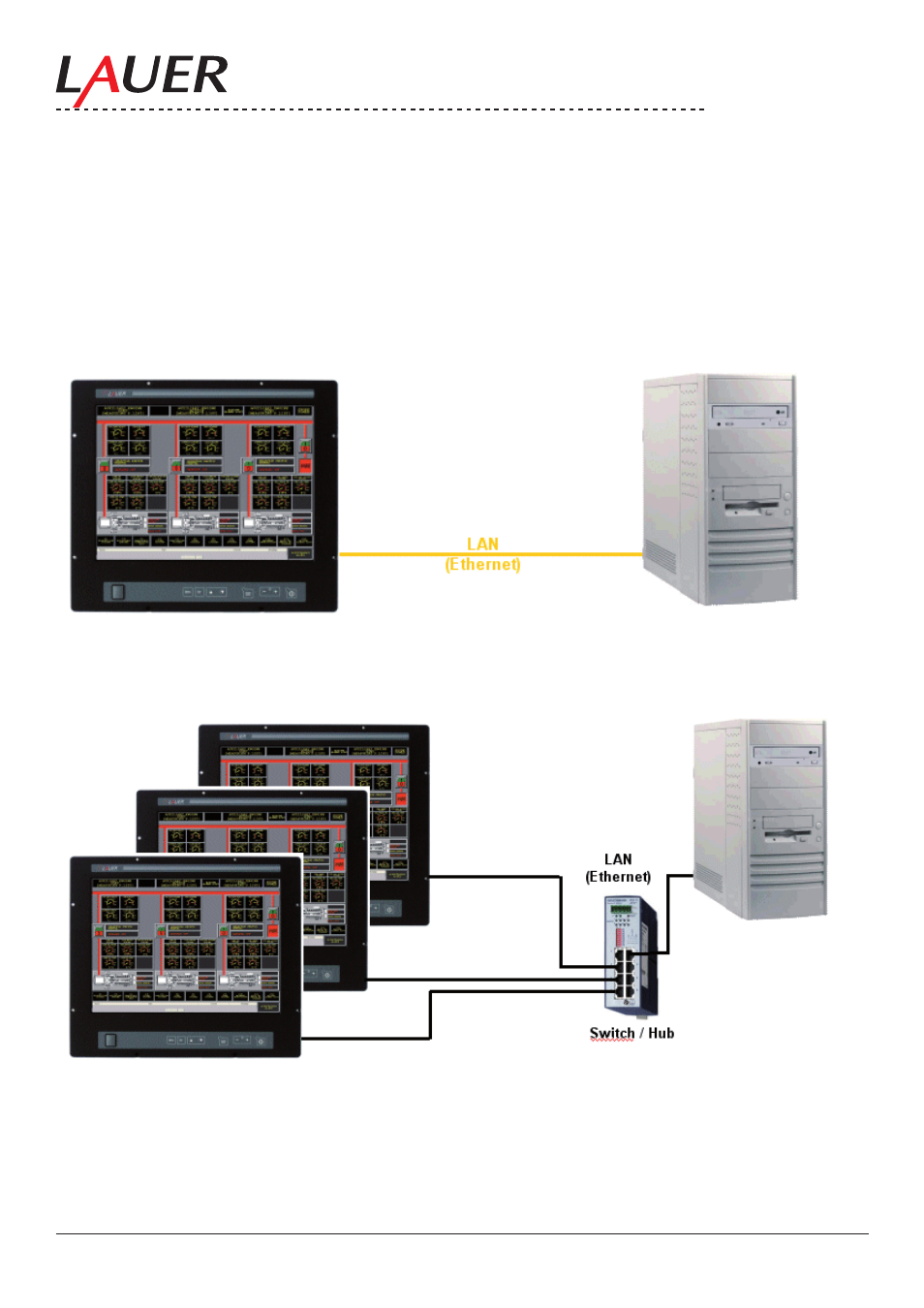

Direct connection

Connection over HUB/SWITCH
