© Elektronik-Systeme LAUER GmbH & Co. KG • 2007 31
7.10.1. Ethernet connection
Pin Function Description
01 Tx(+) Transmit data +
02 Tx(-) Transmit data -
03 Rx(+) Reseive data +
04 --
05 --
06 Rx(-) Reseive data +
07 --
08 --

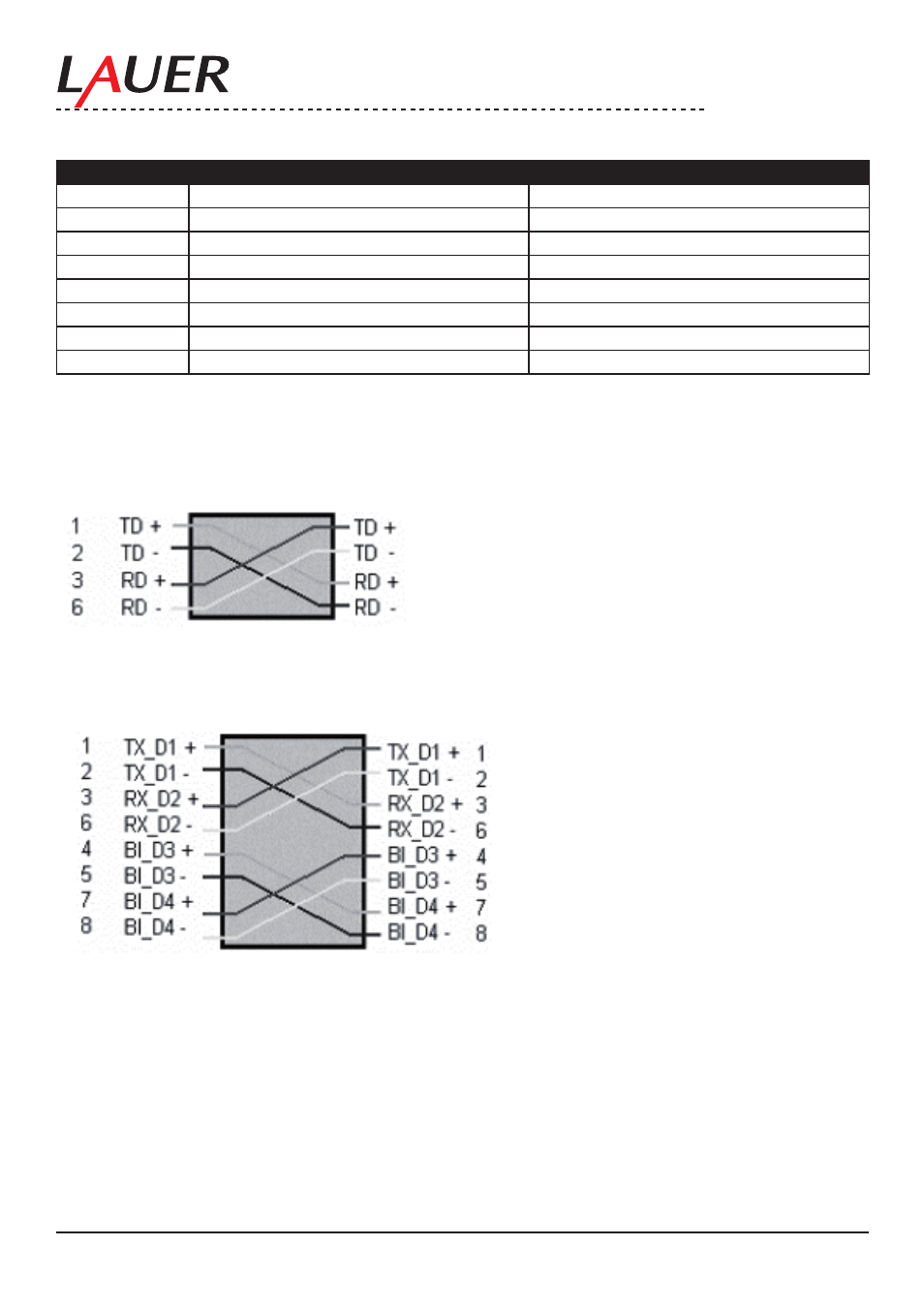

7.10.2. Ethernet Cable
Crosspatch cable: Standard EIA/TIA-T456A
To connect two devices.
Patch cable: Standard EIA/TIA-T456B
To connect devices by HUB / SWITCH.
