7.5.2. VGA Cable

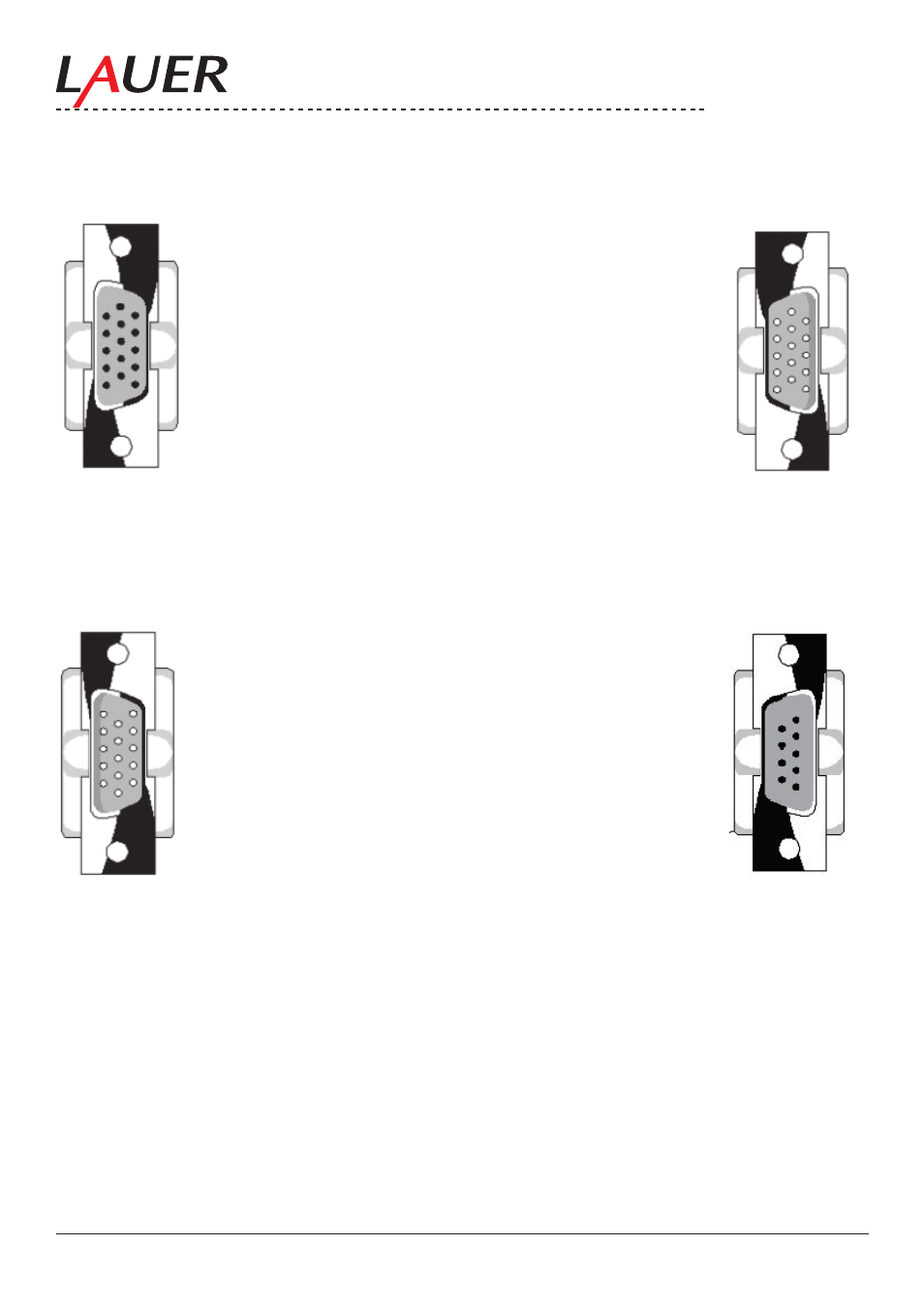

Cable connection 15pol - > 15pol (male or female: Allocation pin number is alike!)
1
red
1
2
green
2
3
blue
3
13
HSYNC
13
14
VSYNC
14
6
red GND
6
7
green GND
7
8
blue GND
8
10
digital GND
10
15 pol DSUB (male)
15 pol DSUB (female)
Cable connection 15pol - > 9pol (male or female: Allocation pin number is alike!)
1
red
1
2
green
2
3
blue
3
13
HSYNC
13
14
VSYNC
14
6
red GND
6
7
green GND
7
8
blue GND
8
10
digital GND
10
15 pol DSUB (male)
9 pol DSUB (female)
