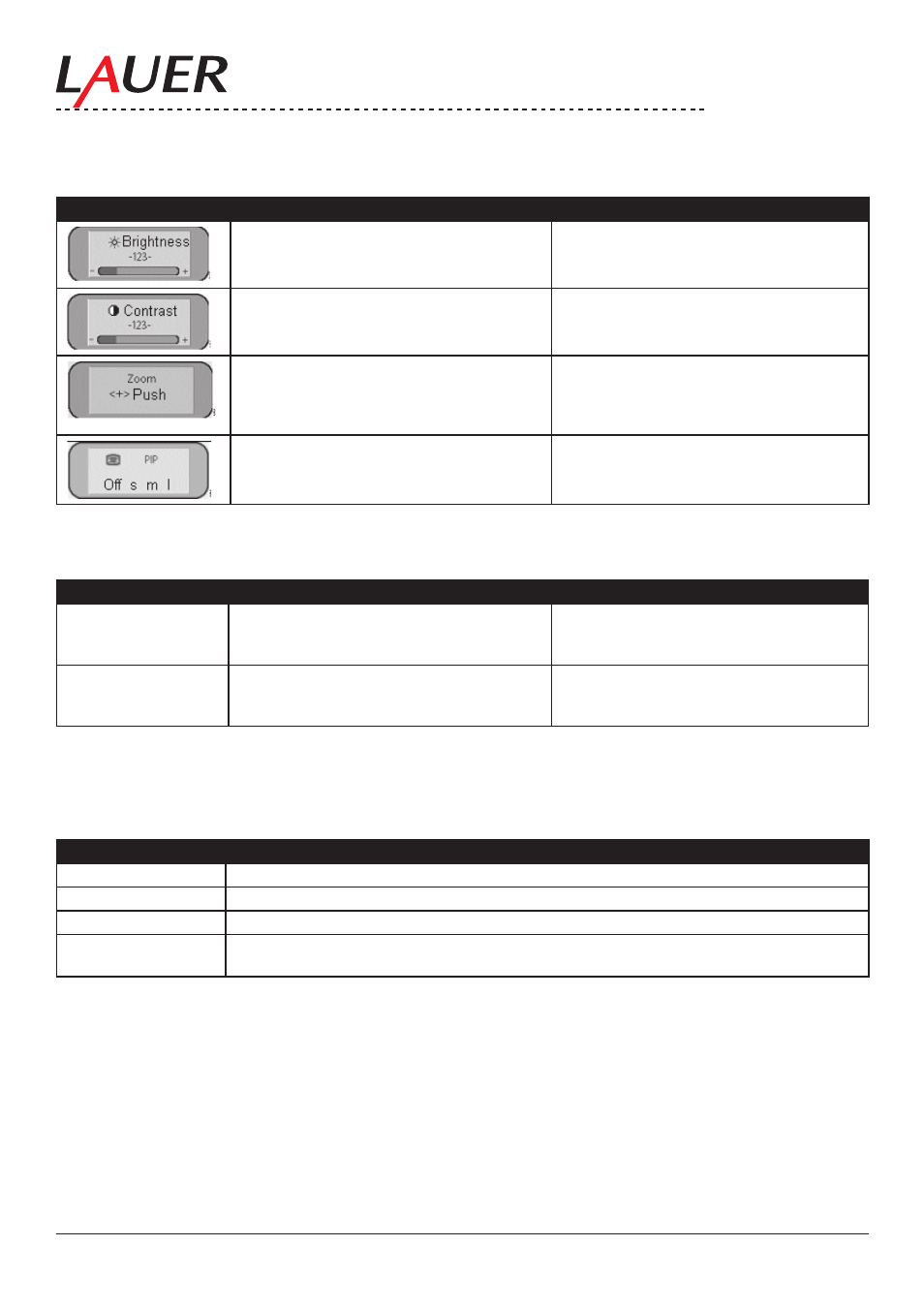

The following settings can be made over the Quick OSD menu:

Start with the key <

SET>

Function

Adjusting/setting

Description

Range of adjustment: 0 to 100 over adjust-

ment keys (UP / DOWN)

Brightness adjustment:

Range of adjustment: 0 to 100 over adjust-

ment keys (UP / DOWN)

Contrast adjustment

Range of adjustment: 0 to 100 over adjust-

ment keys (UP / DOWN)

Zoom adjustment: Enlargement of the

sceen contents. This Quickmenue has

additional submenus, which „zoom“ a shift

screen window is possible.

Range of adjustment small, means, largely

Split Screen: select size of the faded in

video picture (PIP)

Start with the key <

UP>

Function

Adjusting/setting

Description

Source RGB1, RGB2,

Digitally, FBAS, SVi-

deo

Selection with key< SET >, selection with

key

Selection of the Input source

screen alignment

Alignment by renewed pressing of the

key

Accomplishes an automatic screen align-

ment. Alignment of frequency, phase and

picture position

6.4.2. OSD-Menu

The keys have the following Function(s):

Key

Function

Adjusting parameter value increaseMenu selection to the right

Adjusting parameter value degradeMenu selection to the left

MENÜ

OSD StartMain menu/submenu select

SET

Entry of the main menu / Submenu from above step downward, select.Start with key
