7.3.1. Composite connection

FBAS Composite - Connector (male):

Allocation

Level

Impedance

Function

Inside

Video signal

FBAS Y

-0,3V-0,7 V

75 Ohm

Combined video signal brightness, Color,

Sync

Outside

Ground for C 0 V

Signalmasse

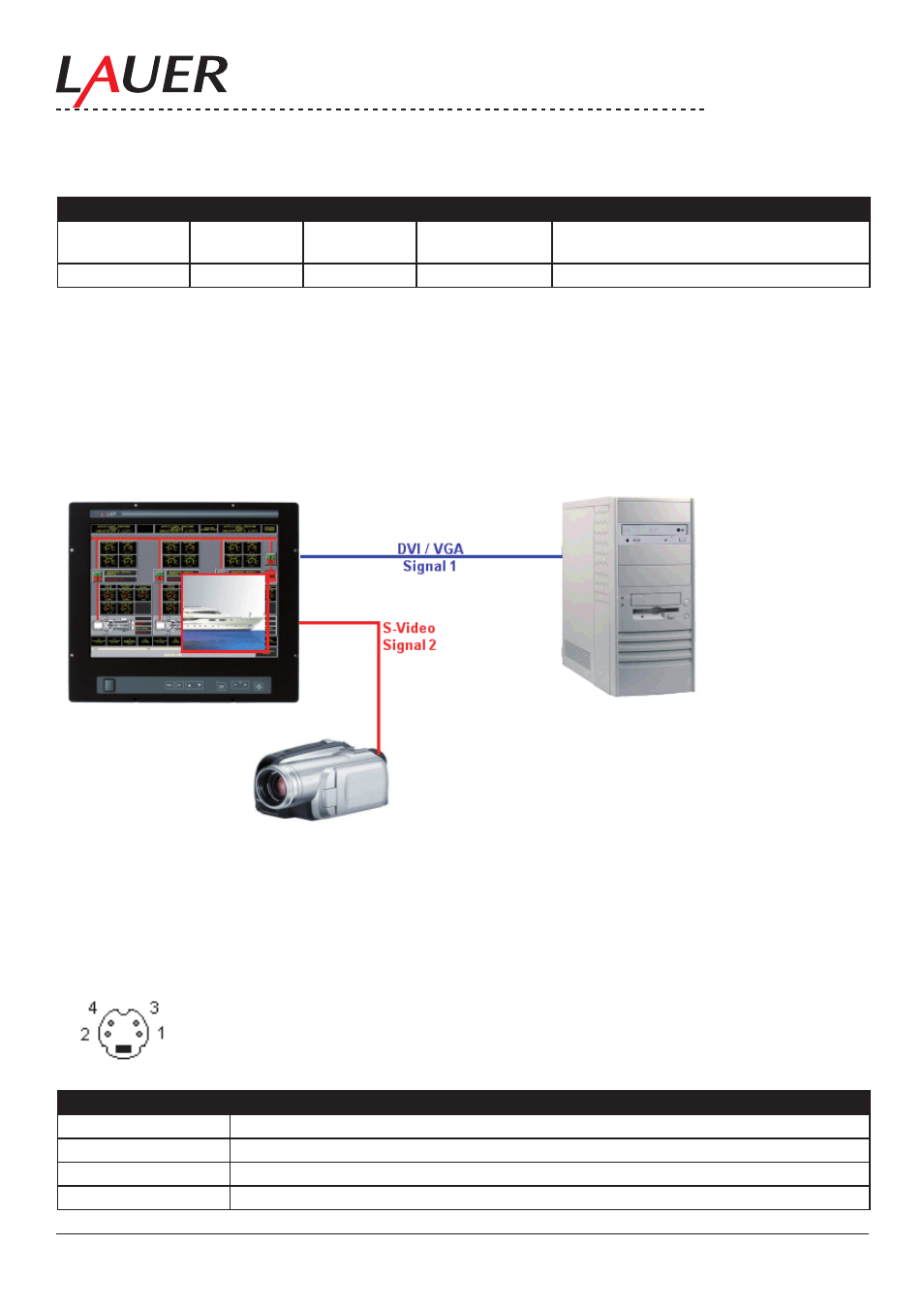

7.4. S-Video

S-Video (also known as Y/C) is a base band analog Video format. It offers a qualitatively better signal than Composite

video, nevertheless a worse than RGB - or Component video. The S-Video format divides the signal into two chan-

nels: Brightness (Luminance) and Color (Chroma).

Function: Connection between second videos source and monitor to the transmission the video data

e.g. for PIP (Picture in Picture „Split screen“) function

Note:

The selection the videos source(s), synchronization, image position, window position as well as further settings are

accomplished in the OSD menu.

7.4.1. S-Video connection:

Function

Ground Luminance (Y)

Ground Chroma (C)

Intensity (Luminance) Y

Color (Chroma) C
