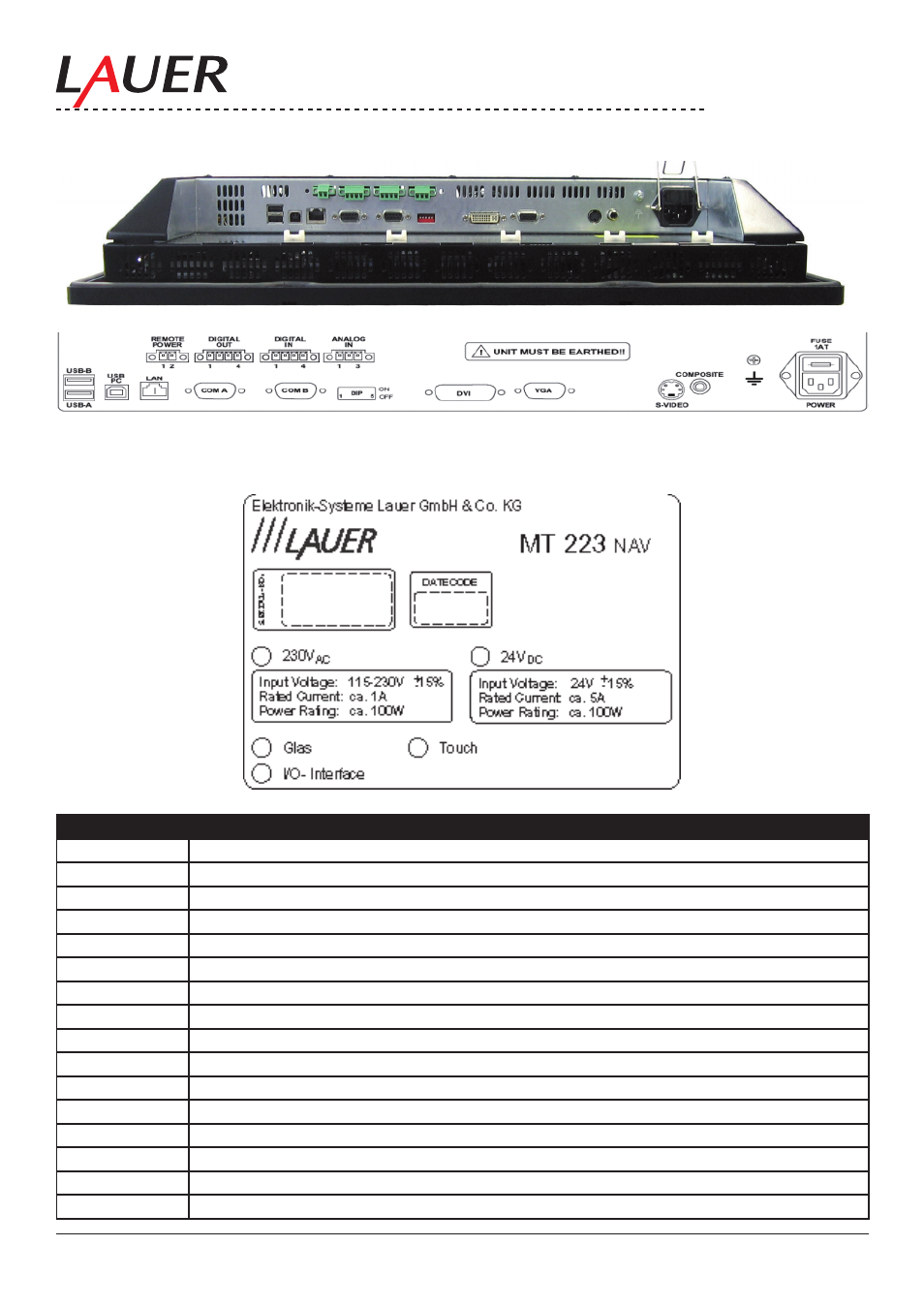

7. Interfaces and functions
16 15 14 13
12 11 10 9 8 7 6 5 4 3 2 1
Nomber Function
1 Power Supply
2 Protected Ground
3 Composite Video second video source, for Picture in Picture function
4 S-Video Video second video source, for Picture in Picture function
5 VGA first video source
6 DVI first video source alternatively
7 DIP Switch Serial mode (RS232/485) + Monitor address
8 Serial COM B configure, control, status,
9 Serial COM A configure, control, status
10 LAN (Ethernet) configure, control, status
11 USB (PC) USB “connect through” function
12 USB-A / USB-B USB 2.0 Hub
13 Analog IN control
14 Digital IN control
15 Digital OUT control
16 Remote Power control
