MOUNTING:

Note: This unit will accept pole tops with an exterior diameter
between 15/8” and 2.375”.

1. When placing the unit on the pole, feed the supply leads
through the mounting tenon.

Note: If unit is pre-wired, instead of step 1, feed the supplied
pre-wire through the tenon and down the pole.

3. Orient the unit so that the bezel hinge is to the street side.

4. Tighten the two mounting set screws.

Caution: Do not tighten set screws beyond 15 ft-lb. torque.

INSTALLATION INSTRUCTIONS

CORVUS LARGE (CVL) cont.

LAMP INSTALLATION:

1. Open the optic compartment (See opening and closing the
unit on page 1)

2. Tighten lamp with enough torque to fully depress and load
the center contact of the socket.

Note: NEMA specifies torque of 35 in-lbs.

4. Close the optic compartment.

6. Energize and verify operation.

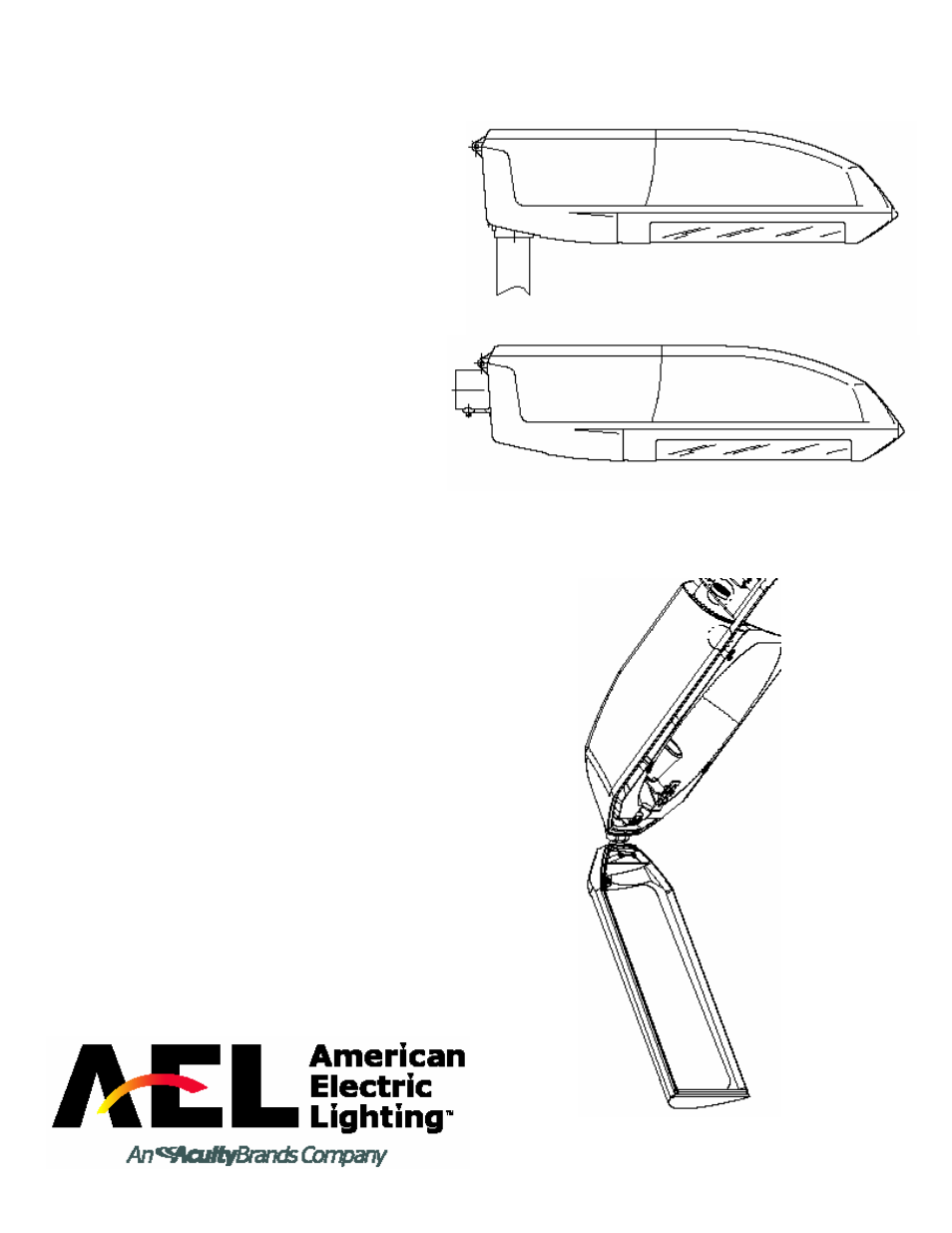

Vertical mounting.
0°, 5°, 10° and 15°

Horizontal mounting
