4

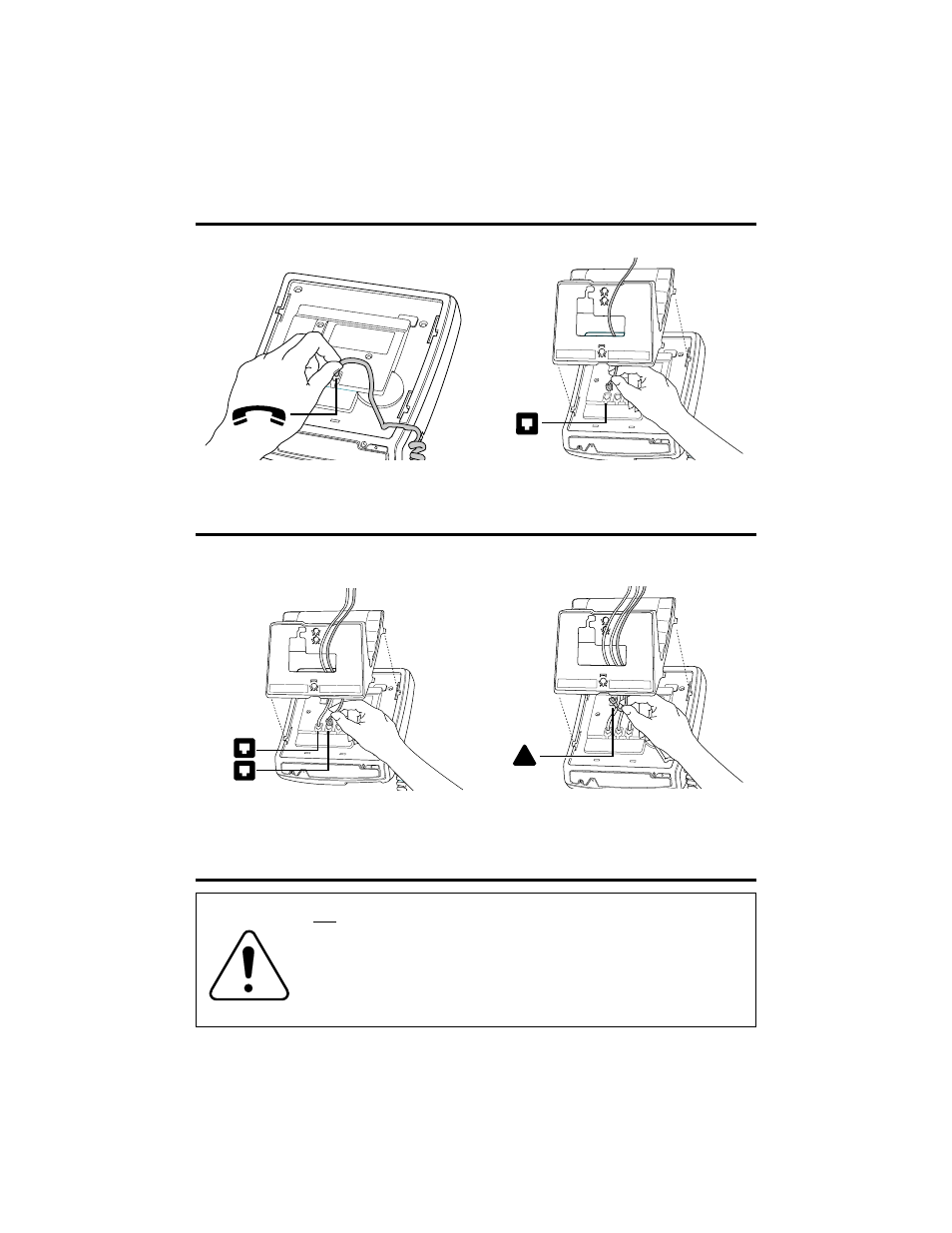

Basic Installation
This section explains how to install your 9516CW telephone.
Connecting the handset cord Connecting the line cord
Attach one end of the handset cord to the
handset and the other end to the handset
jack. Attach one end of the line cord to jack
number 1 and the other end of the line
cord to the wall jack.
Connecting an optional fax
machine or modem Connecting the power adaptor
Attach the line cord to jack number 2 and
the other end to the modem or fax
machine. This line cord is not supplied
with the telephone. Attach the power adaptor to the base of
the telephone where the warning symbol
is marked. Connect the power adaptor
into the closest electrical outlet.
To avoid potential electrical shock hazard to personnel or damage to the telephone, use
only the manufacturer-supplied equipment and installation procedures. Specifically, use
only 4 conductor modular teledapt plug/cords with this product, and an AC transformer
that is CSA/UL or CSA-NRTL/C approved Class 2 level C, rated as follows:
For North American Markets mains nominal AC voltage 110-117V , Input:
110/117VAC, 50/60Hz, 12W and Output: 16VAC 500mA.
For International Markets mains nominal AC voltage 220-240V , Input: 220/
240VAC, 50/60Hz, 12W and Output: 16VAC 500mA.
Substitution of non-approved equipment will void the Aastra Telecom warranty.
