Avaya P130 SMON User Guide 64
SMON Dialog Boxes
To find the next highest peak:
1. Click Find Next . The displays scrolls to the next highest peak value
in the graph.
In Switch Statistics, all counters are listed in the Find Top5 Peaks dialog
box, including those counters not currently displayed in the Traffic Graph.
Using the Sort Dialog Box
You may sort the display by one of the available categories in the list.
To perform a sort:
1. Select Actions > Sort . The Sort dialog box opens.

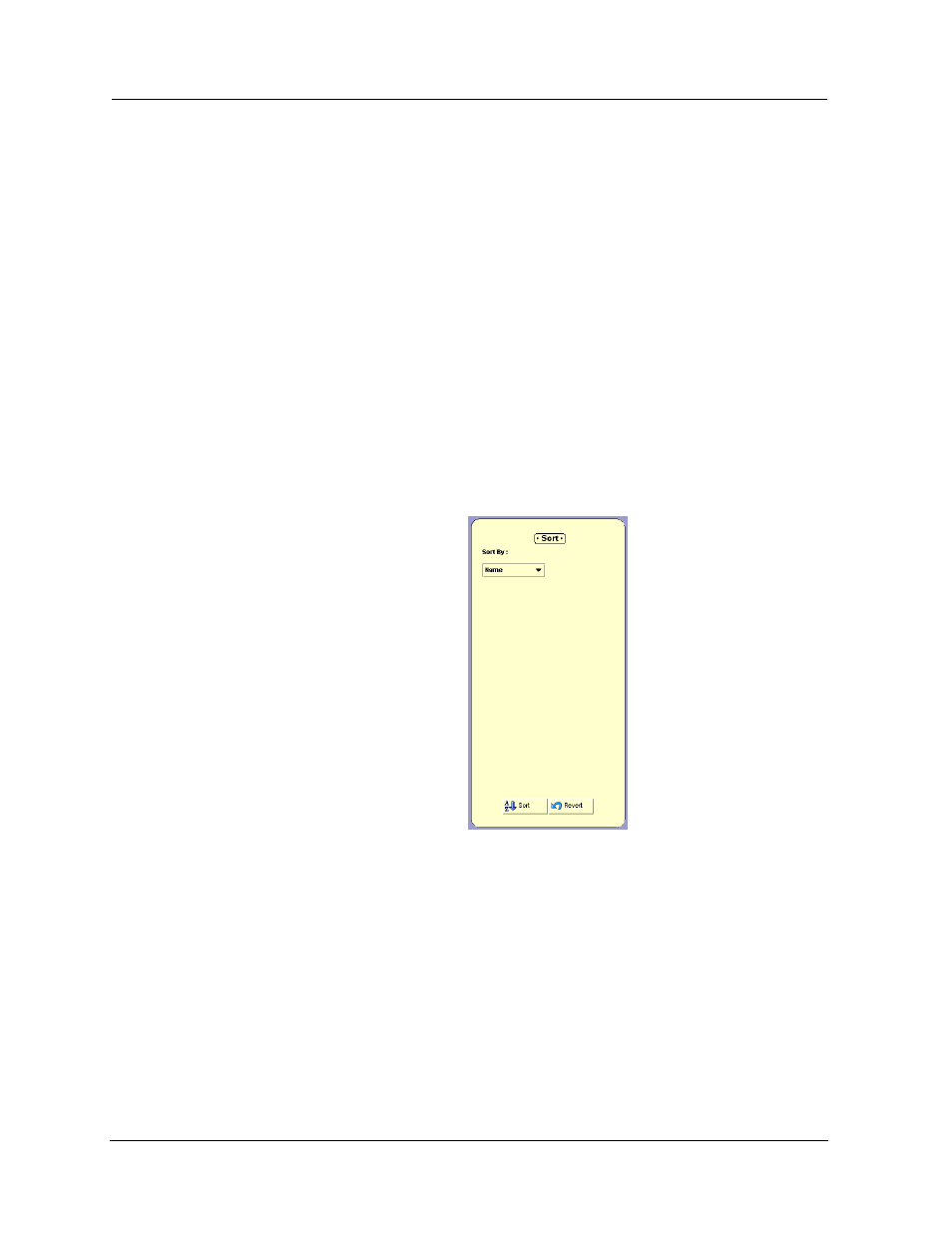

Figure A-11. Sort Dialog Box
2. Select the appropriate sorting criterion from the Sort By drop-down
listbox.
3. Click Sort . Sorting begins immediately. New information is sorted at
each subsequent polling.
When sorting by Name, the bars appear in ascending order from bottom
to top. When sorting by packets, the bars appear in descending order
(most traffic at the bottom, least traffic at the top).
