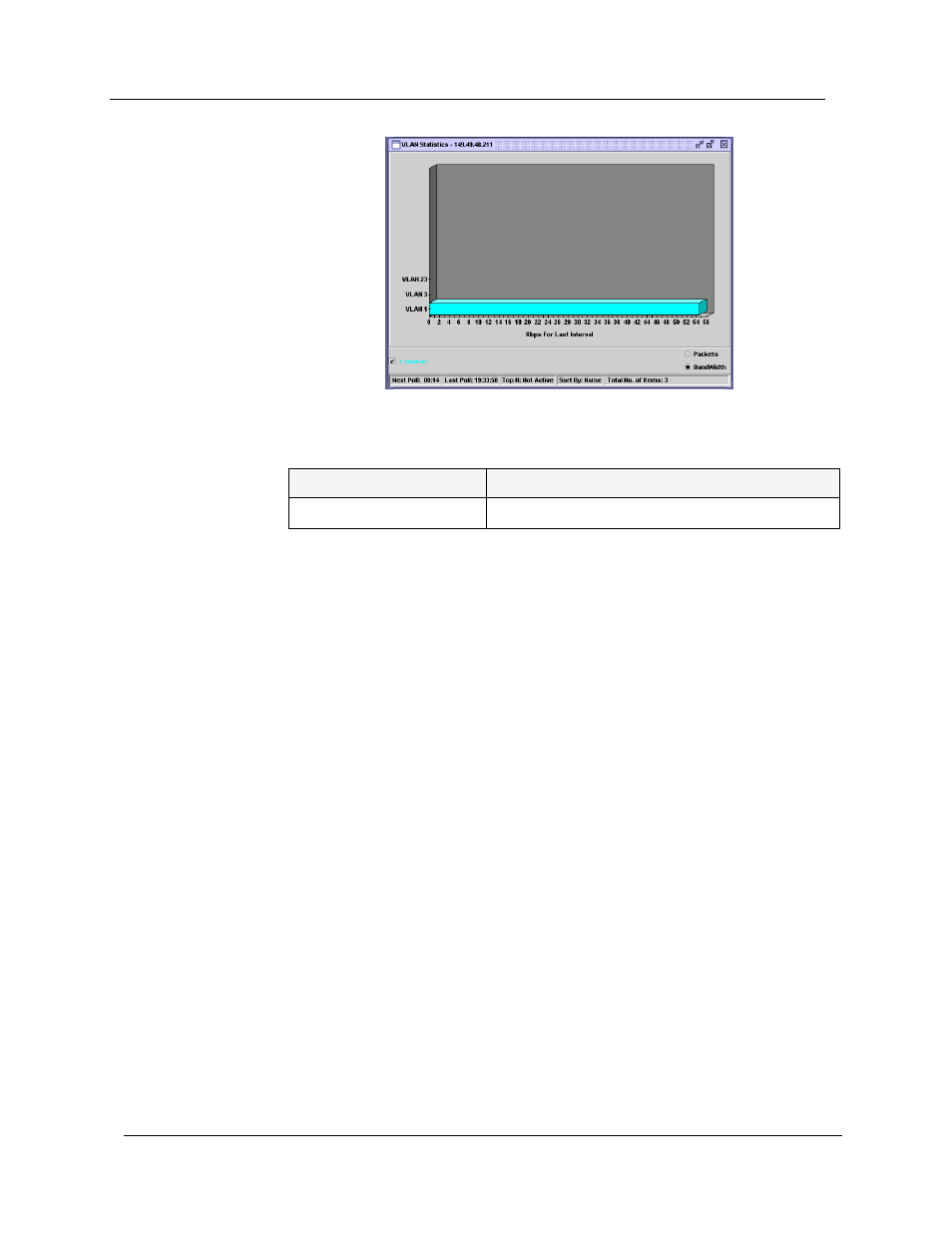

Figure 6-2. VLAN Statistics Window - Bandwidth
Table 6-2. VLAN Statistics Variables - Bandwidth
VLAN Statistics Window
The VLAN Statistics window is organized as follows:
The title of the VLAN Statistics window displays the IP address of
the device.
The X axis relates to packets over time or total packets, depending
on the display mode (refer to Appendix A, Display Mode).
The Y axis relates to the VLAN name. Only VLANs with member
ports or LAGs appear in the window. If no VLANs have been
defined, the Default or Generic VLAN includes all traffic.
For more information about modifying the display, and the available
toolbar, status bar and mouse movement options, refer to Chapter 2,
Working with Device SMON Tools.
Variable
Description
In Bandwidth (Kbits)
The rate at which traffic is entering the VLAN.
