OMNIKEY 2061 Bluetooth Reader 2061-905_ A.1
User Manual, Firmware V1.27
4.2 Reader Management

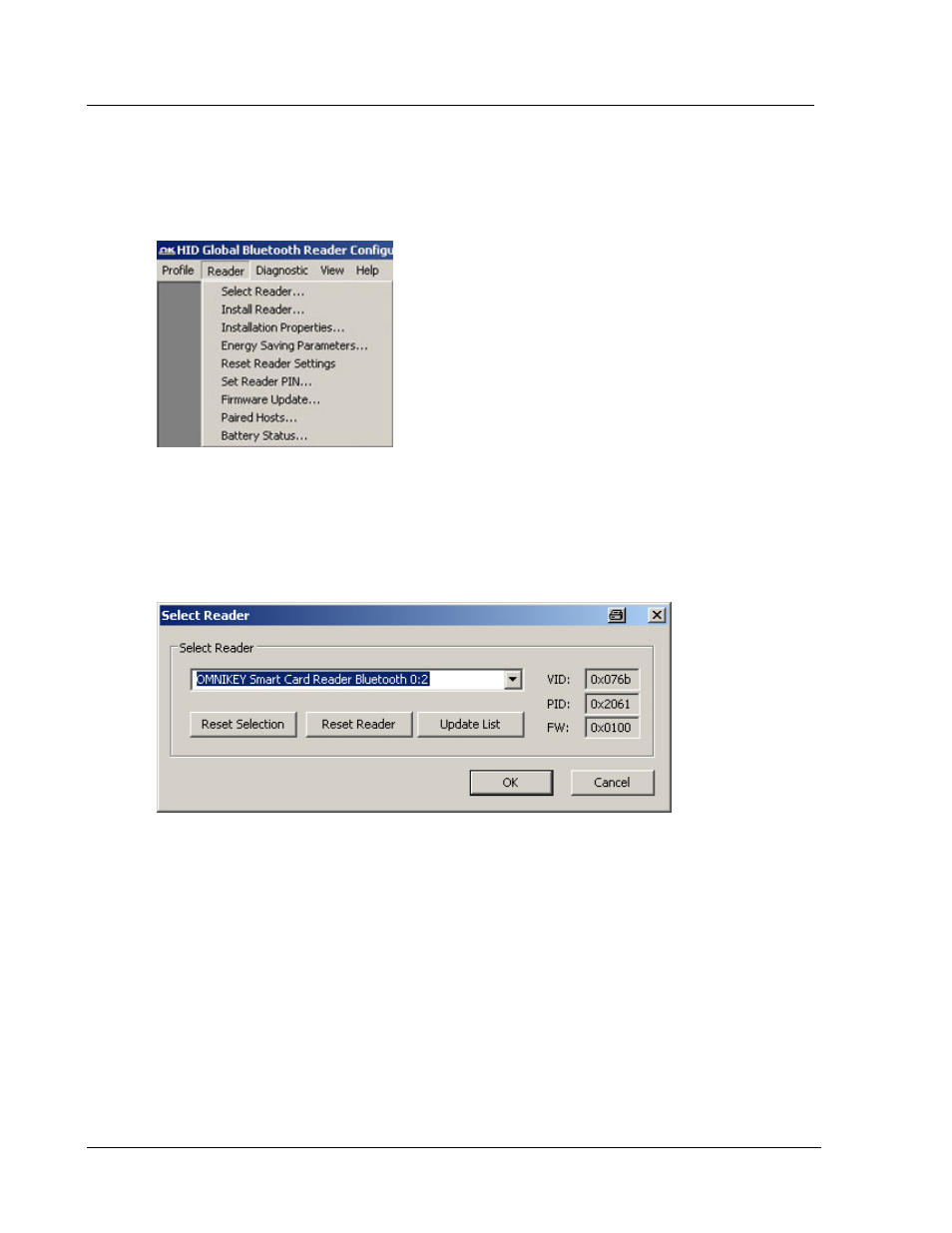

Using the Reader menu you can install, select and configure a USB connected OMNIKEY 2061
Bluetooth reader.
4.2.1 Reader Selection
With the Select Reader dialog, select USB connected OMNIKEY 2061 Bluetooth reader. The list
box lists connected readers. The dialog shows also the vendor (VID), the product id (PID) and the
firmware version (FW) of the selected reader.
The USB path of the selected reader is shown as a suffix to the reader name. In the following
example, the USB path 0:2 indicates this reader is connected on the second USB port on the first
USB hub.
Reset Selection Deselects the currently selected reader.
Reset Reader Resets the currently selected reader.
Update List Updates the list of USB connected readers.
OK Approves the selected reader and loads the reader settings.
