5 Controls

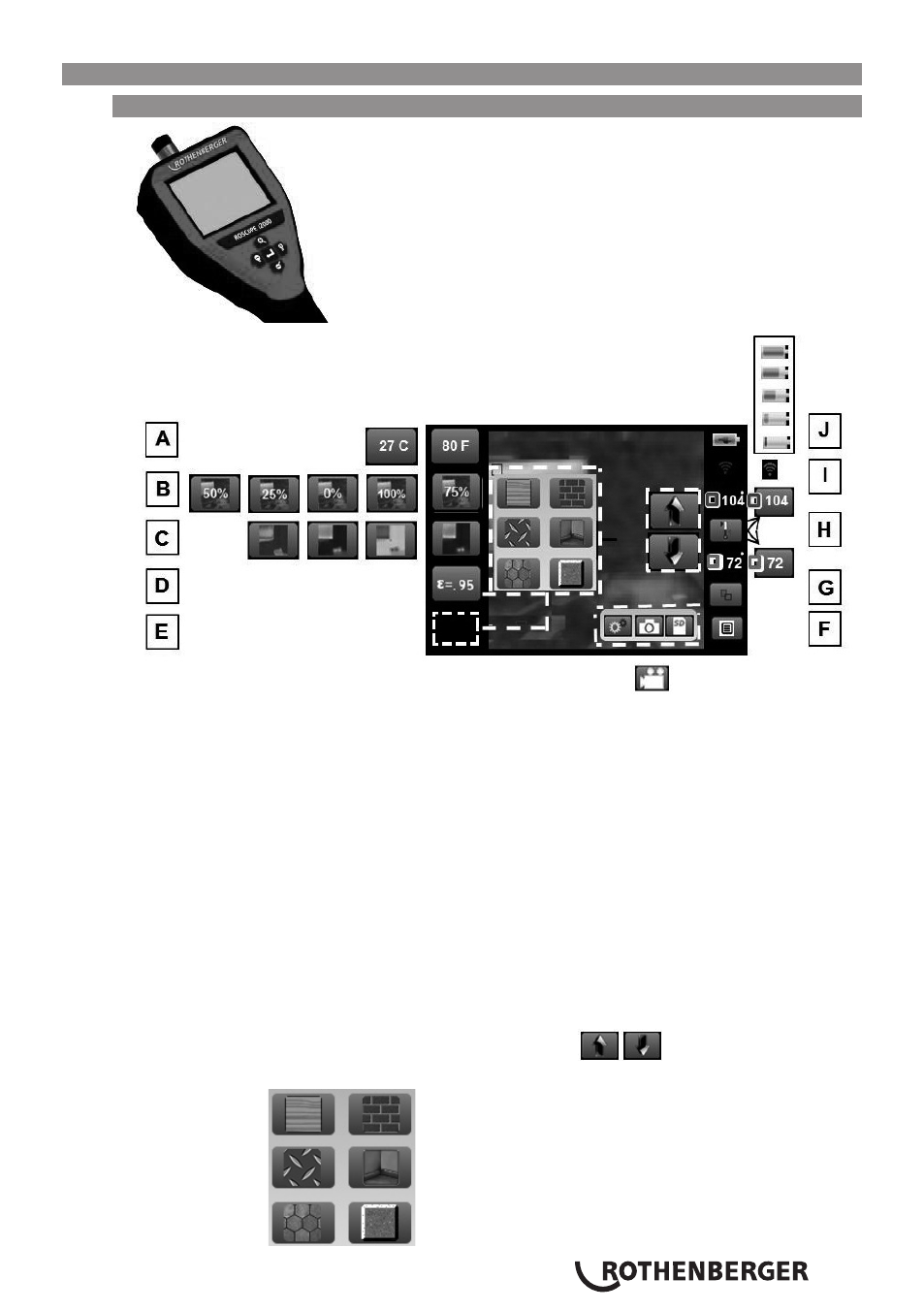

5.1 Using the Thermal Imager with the ROSCOPE i2000
Touch screen (icons) to make setting changes to your thermal imager as described above.
(A) Touch temp to change between Celsius and Fahrenheit.
(B) to select level of transparency (opacity)
• 0% (thermal overlay)
• 25% (thermal overlay)
• 50% (thermal overlay)
• 75% (thermal overlay)
• 100% (thermal overlay)
(C) to select color mode
• Iron Bow (default)
• Black & White (gray scale)
• Hot Metal
• Rainbow (High Contrast)
(D) Select emissivity – touch icon and Quick Picks menu and arrows both appear.
• Quick Picks (pre-selected settings for common material emissivity settings)
• Wood Brick
Metal Plaster
Tile Concrete
