Switch Stacking
Topology
A switch stack creates a powerful logical switch by allowing two or more
individual switches to function as one unit. Switch stacks can simplify
network management because you can manage the switches as a unit,
rather than individually. The network topology in Figure 22 includes
several examples of AT-8326GB switch stacks.

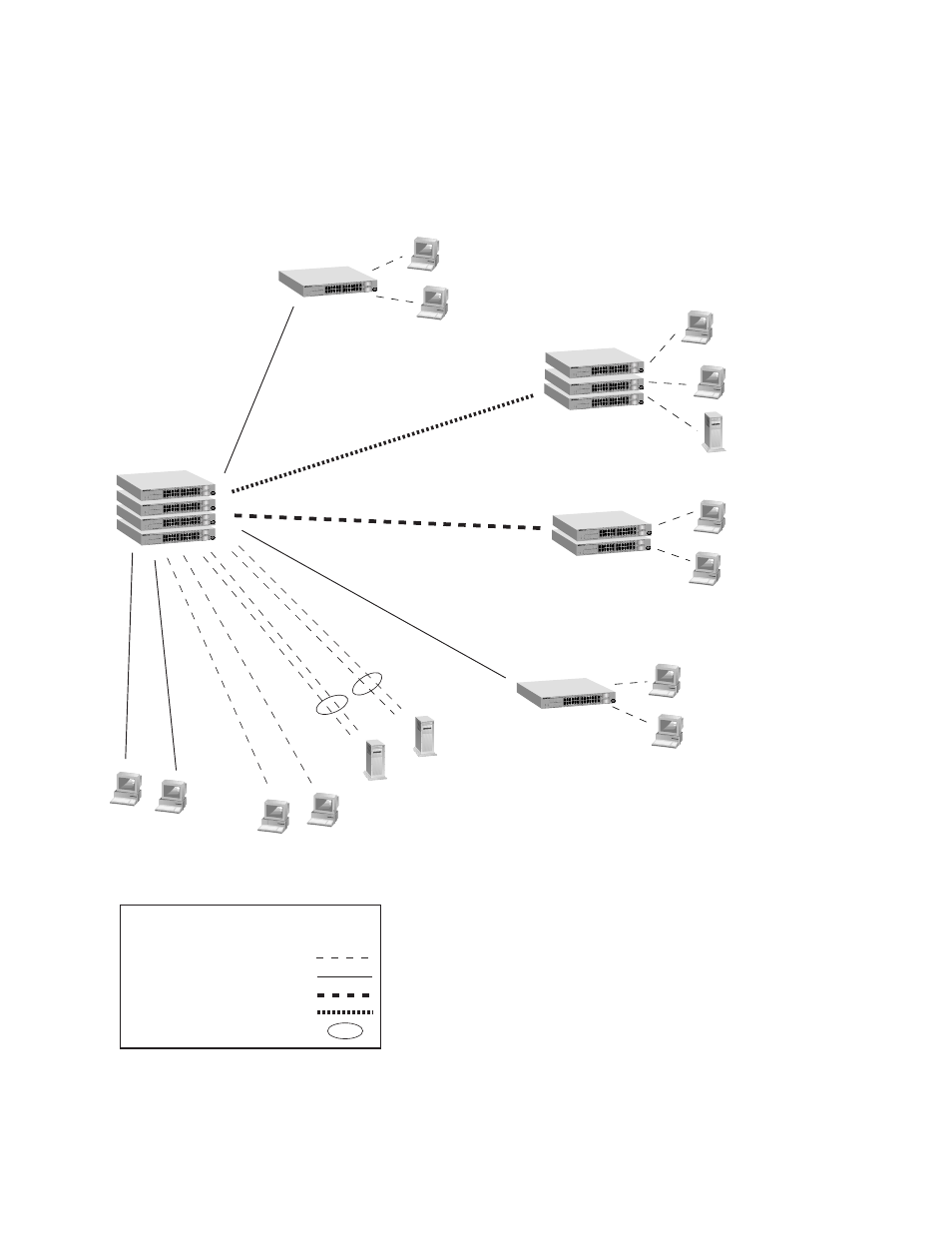

Figure 22 Switch Stacking Topology
Legend
10Base-T/100Base-TX link
100Base-FX link
1000Base-SX link
1000Base-LX link
Port trunk
Site 1:
AT-8326GB
stack
Engineering
workgroup
Sales
workgroup
Sales
workgroup
Production
workgroup
Technical
Support
workgroup
Technical
Support
workgroup
Site 2:
AT-8326GB switch
Site 5:
AT-8326GB switch
Site 3:
AT-8326GB stack
Site 4:
AT-8326GB stack
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL
GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL
GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL
GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL
GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL
GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL
GIGA LNK/ACT
GIGA FDX/COL STACK ID
RS-232
