AT-8326GB Installation Guide
13
Hardware Features
The following sections describe these hardware features of the AT-
8326GB Fast Ethernet switch:
G 10/100Base-TX and 10/100/1000Base-T Ports
G Gigabit Interface Converter (GBIC) Slots
G Stacking Ports
G System LEDs
G Stack ID LEDs
G Port LEDs
G Gigabit Connector LEDs
G RS-232 Terminal Port
G AC Power Connector
Twisted Pair
Ports

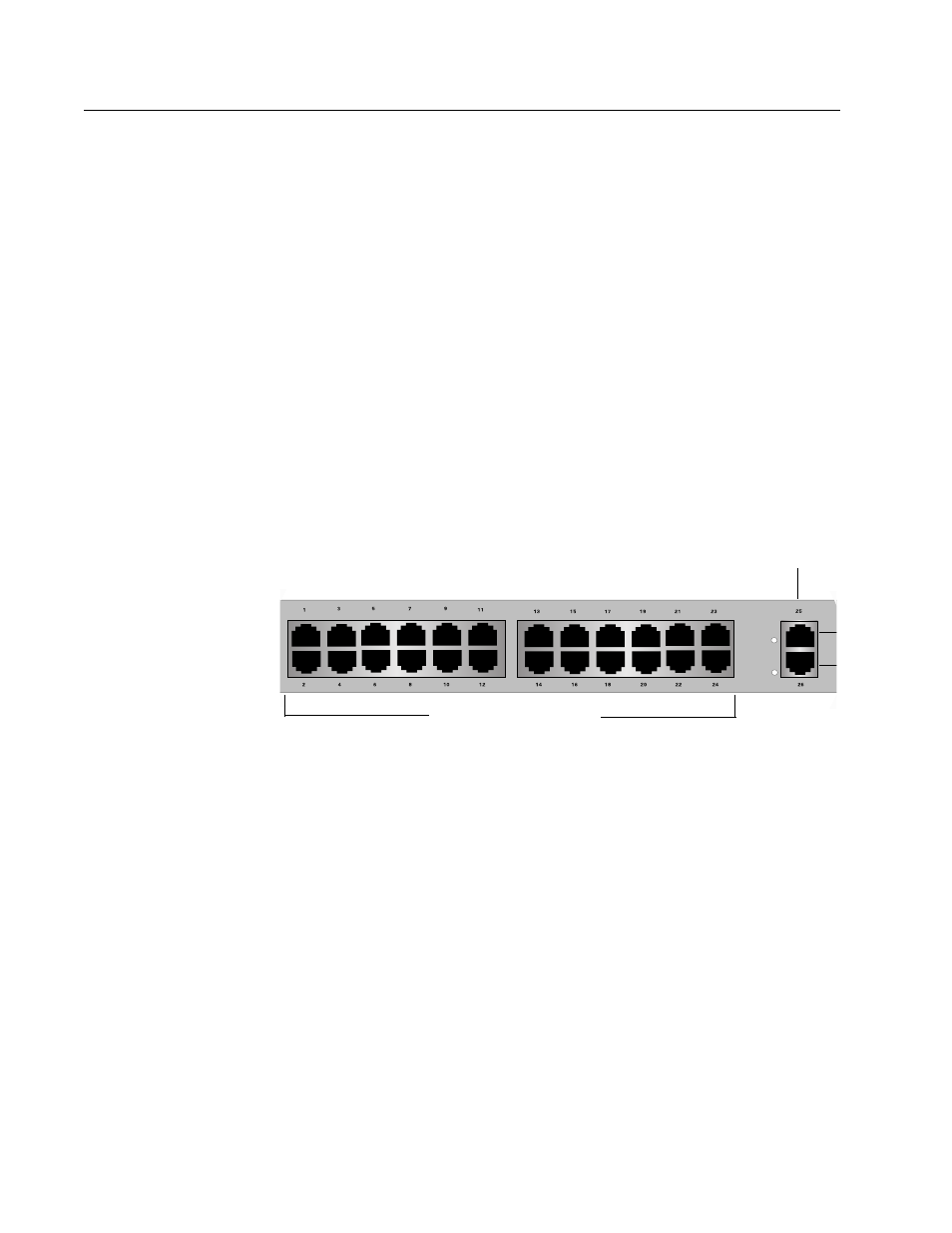

Figure 3 Twisted Pair Ports
The AT-8326GB Fast Ethernet switch features 24 10/100 Mbps twisted
pair ports and two 10/100/1000 Mbps twisted pair ports. The features of
the twisted pair ports are described below.
Type of Connector
All of the twisted pair ports feature RJ-45 connectors. (For the port
pinout details, refer to RJ-45 Port Pinouts on page 15.)
Speed
The 10/100Base-TX ports are capable of 10 megabits per second (Mbps)
or 100 Mbps speeds. The 10/100/1000Base-TX ports are capable of 10
Mbps, 100 Mbps, or 1000 Mbps speeds. You can set the port speed
manually or, since the ports are IEEE 802.3u Auto-Negotiation compliant,
you can allow the switch to set each port’s speed automatically. With
10/100Base-TX Ports
10/100/1000Base-T Ports
