AT-8326GB Installation Guide
15
RJ-45 Port Pinouts

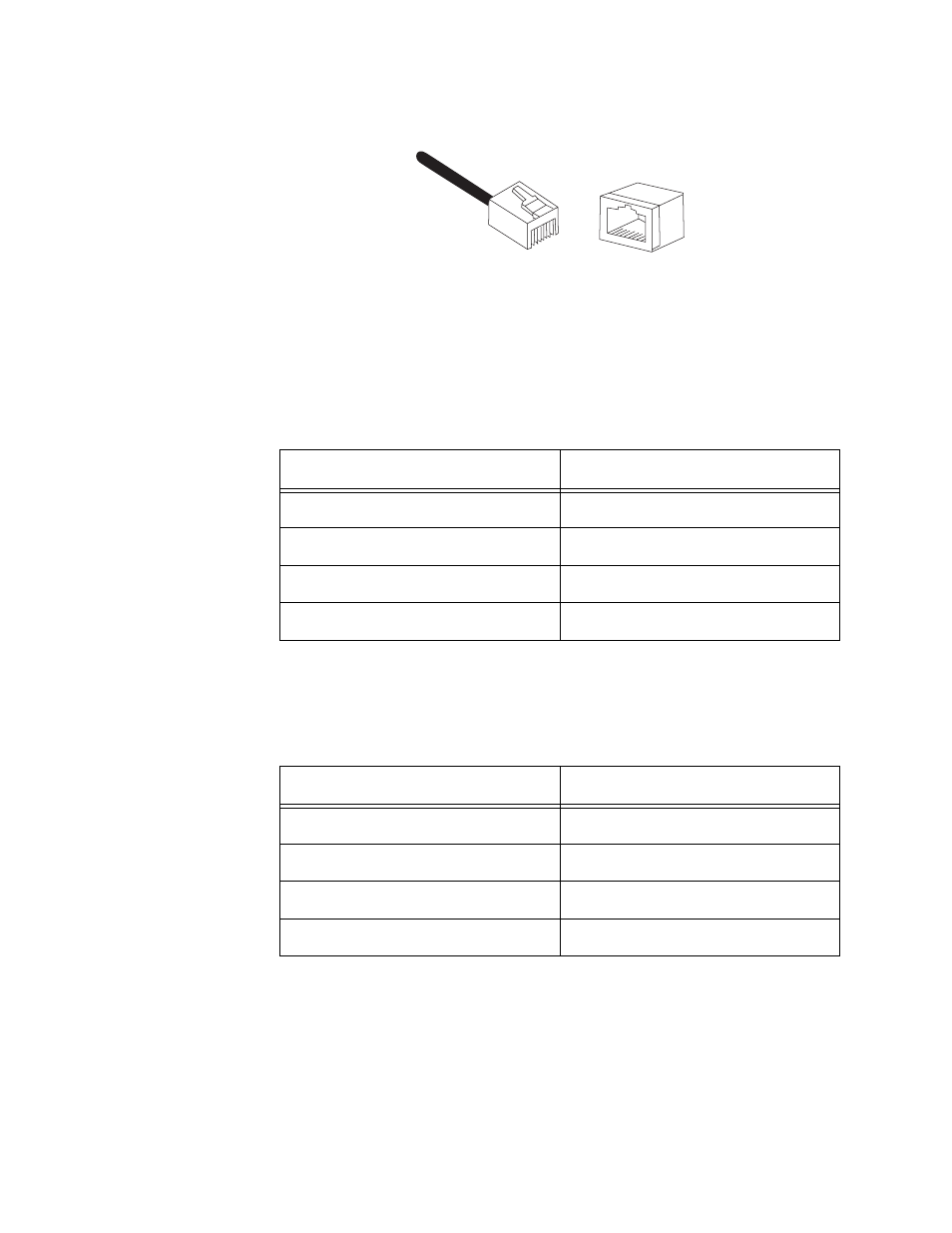

Figure 4 illustrates the pin layout to an RJ-45 connector and port.
Figure 4 RJ-45 Connector and Port Pin Layout
Table 1 lists the RJ-45 pin signals when a twisted pair port is operating in
the MDI configuration.
Table 2 lists the RJ-45 port pin signals when a twisted pair port is
operating in the MDI-X configuration.
Table 1 MDI Pin Signals (10/100 Mbps)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
Table 2 MDI-X Pin Signals (10/100 Mbps)
Pin Signal
1 RX+
2 RX-
3 TX+
6 TX-
8
8
1 1
