AT-8326GB Installation Guide
17
Gigabit
Interface
Converter
(GBIC) Slots

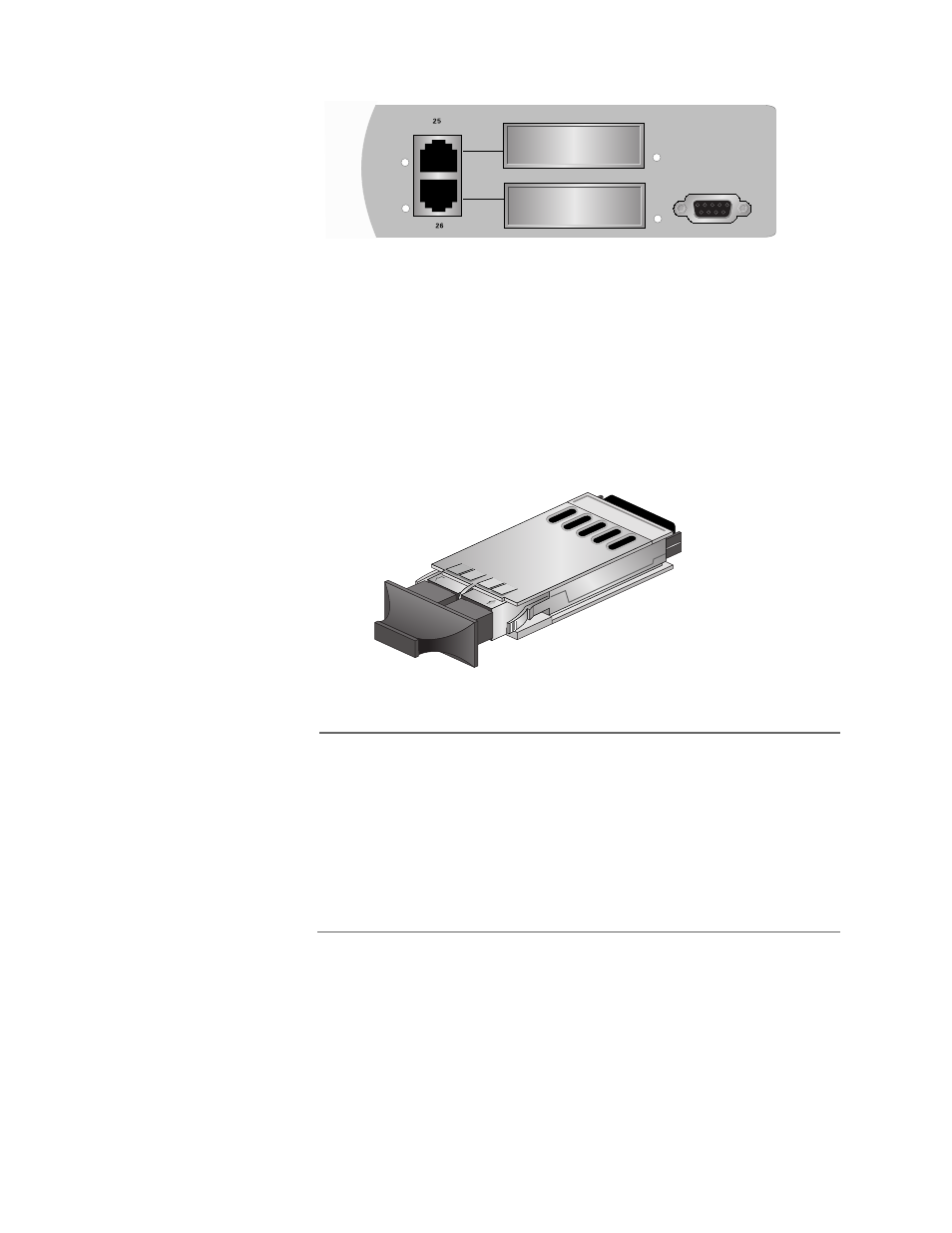

Figure 5 GBIC Slots
The AT-8326GB Fast Ethernet switch has two GBIC slots on the front
panel, which correspond to Ports 25 and 26. Each slot can accommodate
one optional GBIC module.
A GBIC module is a gigabit (1000Base) transceiver. GBIC modules can be
used to extend the distance of your network, build a high-speed
backbone network, or connect additional nodes to the network, such as
high-speed servers. Figure 6 shows an example of a fiber optic GBIC
module.
Figure 6 Example of a GBIC Module
Note
Ports 25 and 26 can each support only one medium type (i.e.,
twisted pair or GBIC) at a time. For example, if you install a GBIC for
Port 25, you cannot use the corresponding twisted pair port.
In order to use Port 25 or 26 with a GBIC module, you must change
the port setting in the management software to GBIC instead of
twisted pair. For instructions, refer to the AT-S41 Management
Software User’s Guide.
The AT-8326GB Gigabit Ethernet Switch supports the AT-G8 series GBIC
modules: SX, LX, LX25, LX40, LX75.
RS-232
