Page 19
AT-8326GB Installation Guide
19
System LEDs

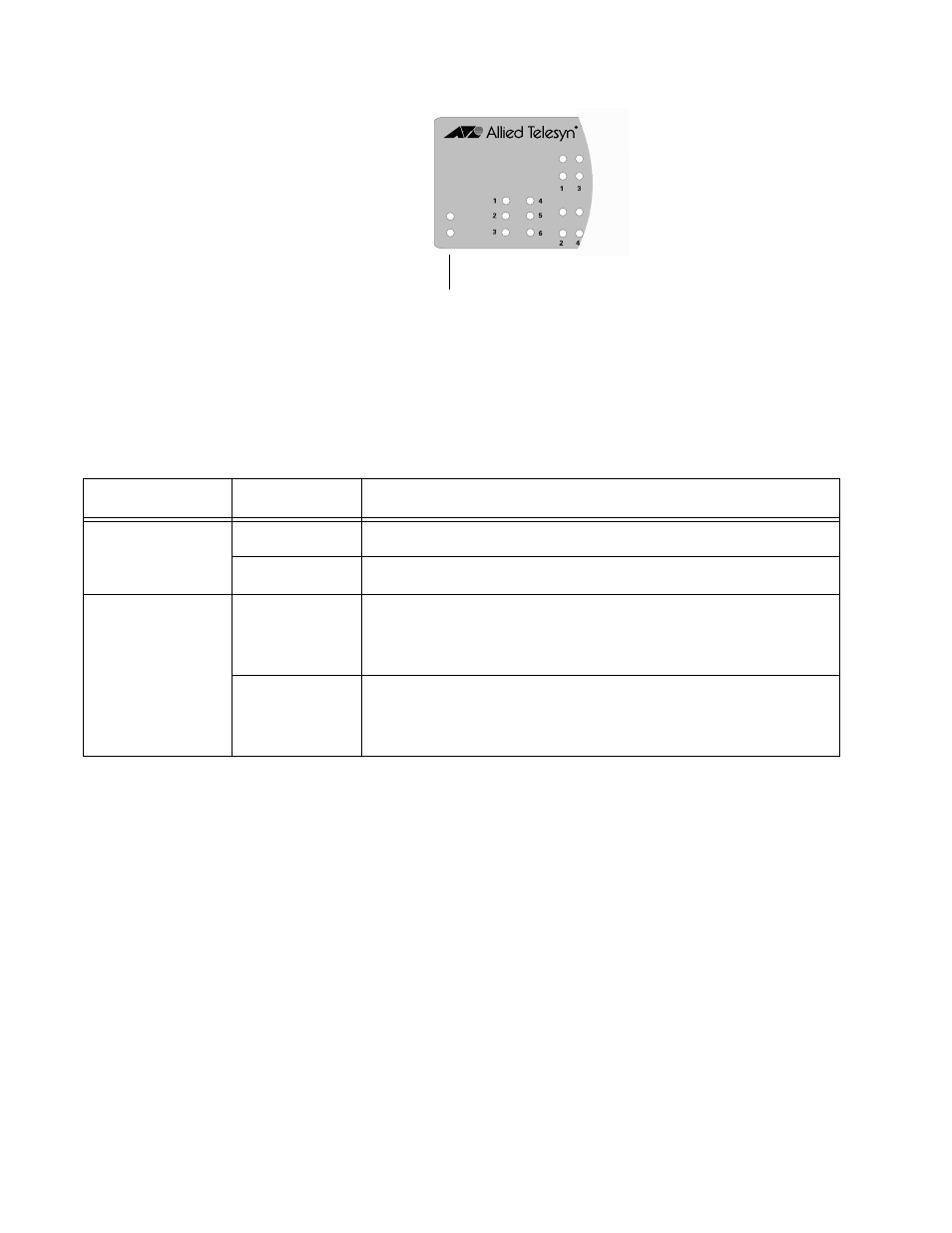

Figure 8 System LEDs
The system LEDs on the front panel display general status information
about the entire switch. The system LEDs are defined in Table 4.
FAULT
PWR
AT-8326GB
24 + 2G Managed Switch
STACK ID
System LEDs
Table 4 System LEDs
LED
State
Description
PWR
Green
System power is ON.
OFF
System power is OFF.
FAULT
Green
The switch or management software has malfunctioned.
(Refer to Chapter 3, Troubleshooting on page 60 for
instructions on how to determine and repair the problem.)
Flashing
Green
The switch is loading its operating software, running
diagnostic tests, writing messages to FLASH, or
downloading files using XMODEM.
