AT-8326GB Installation Guide
40
Collapsed
Backbone - Hub
Topology
In the topology illustrated in Figure 21, an AT-8326GB Fast Ethernet
switch is used to connect 10/100 Mbps Ethernet hubs. This type of
topology is often referred to as a collapsed backbone topology. The
switch functions as the focal point for all workgroup hubs in your
network by acting as a bridge between the different workgroups. The
switch transfers an Ethernet frame from hub to hub only when the
destination node for the frame is on a different hub than the node that
originated the frame. This reduces the amount of unnecessary data
traffic in each workgroup, freeing up bandwidth and improving network
performance.

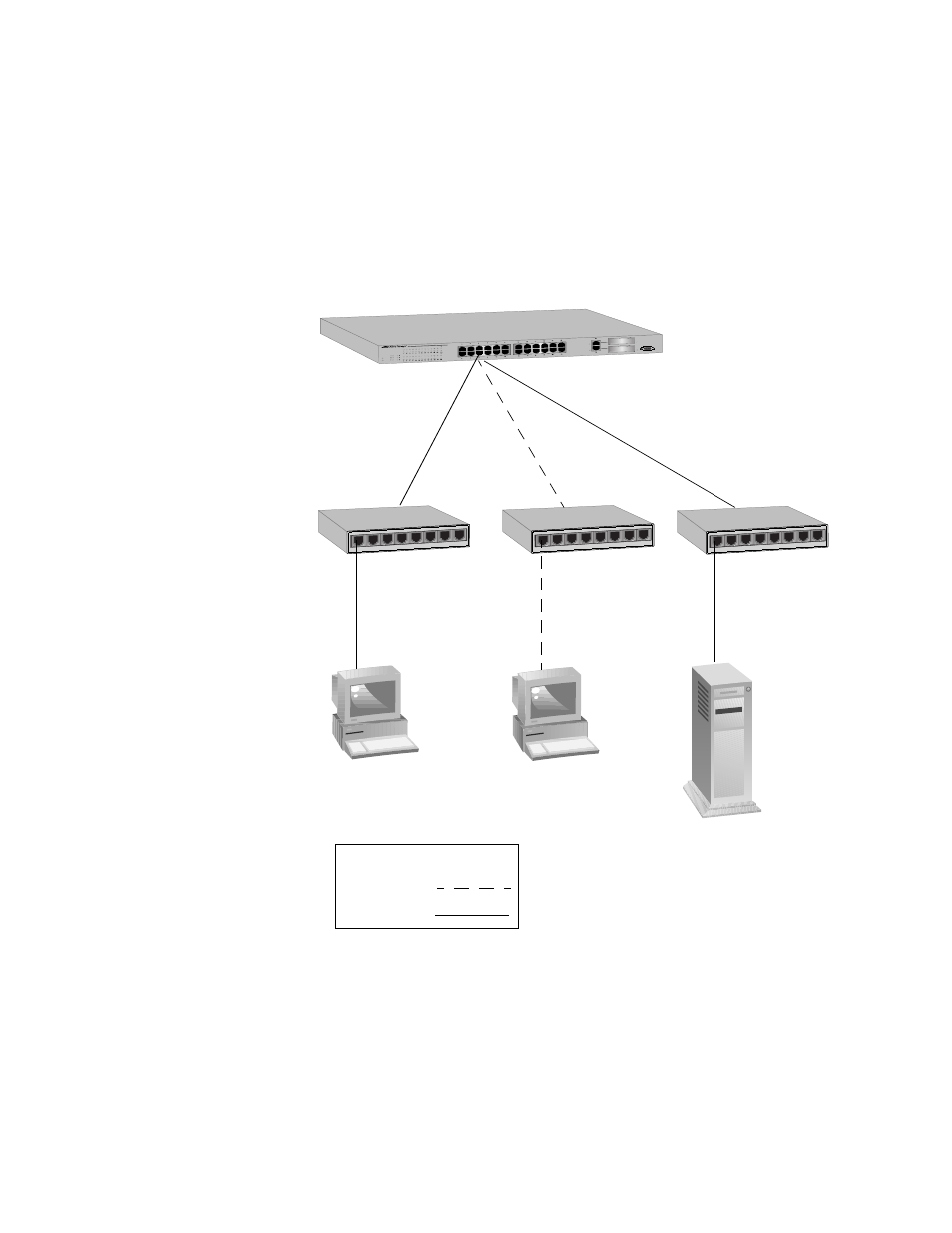

Figure 21 Collapsed Backbone - Hub Topology
FAULT PWR
AT-8326GB 24 + 2G Managed Switch LNK/ACT
FDX/COL
GIGA LNK/ACT
GIGA
FDX/COL
STACK ID
RS-232
5 4 3 2 1
6 7 8 5 4 3 2 1
6 7 8 5 4 3 2 1
6 7 8
Legend
10 Mbps
100 Mbps
AT-8326GB Fast
Ethernet Switch
Ethernet
Hubs
