AT-S63 Management Software Web Browser Interface User’s Guide
Section V: Virtual LANs 367
Displaying the GVRP State Machine
To display the GVRP state machine, perform the following procedure:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 6 on page 42.
2. From the Monitoring menu, select the Layer 2 option.
The Layer 2 page is displayed with the MAC Address tab displayed by
default, as shown in Figure 123 on page 302.
3. Select the GVRP tab.
The GVRP tab is shown in Figure 148 on page 363.
4. In the View GVRP Parameters section, click View GVRP State
Machine for VLAN and enter the VLAN number in the box.
5. Click View.
The GVRP State Machine for VLAN page is shown in Figure 151.

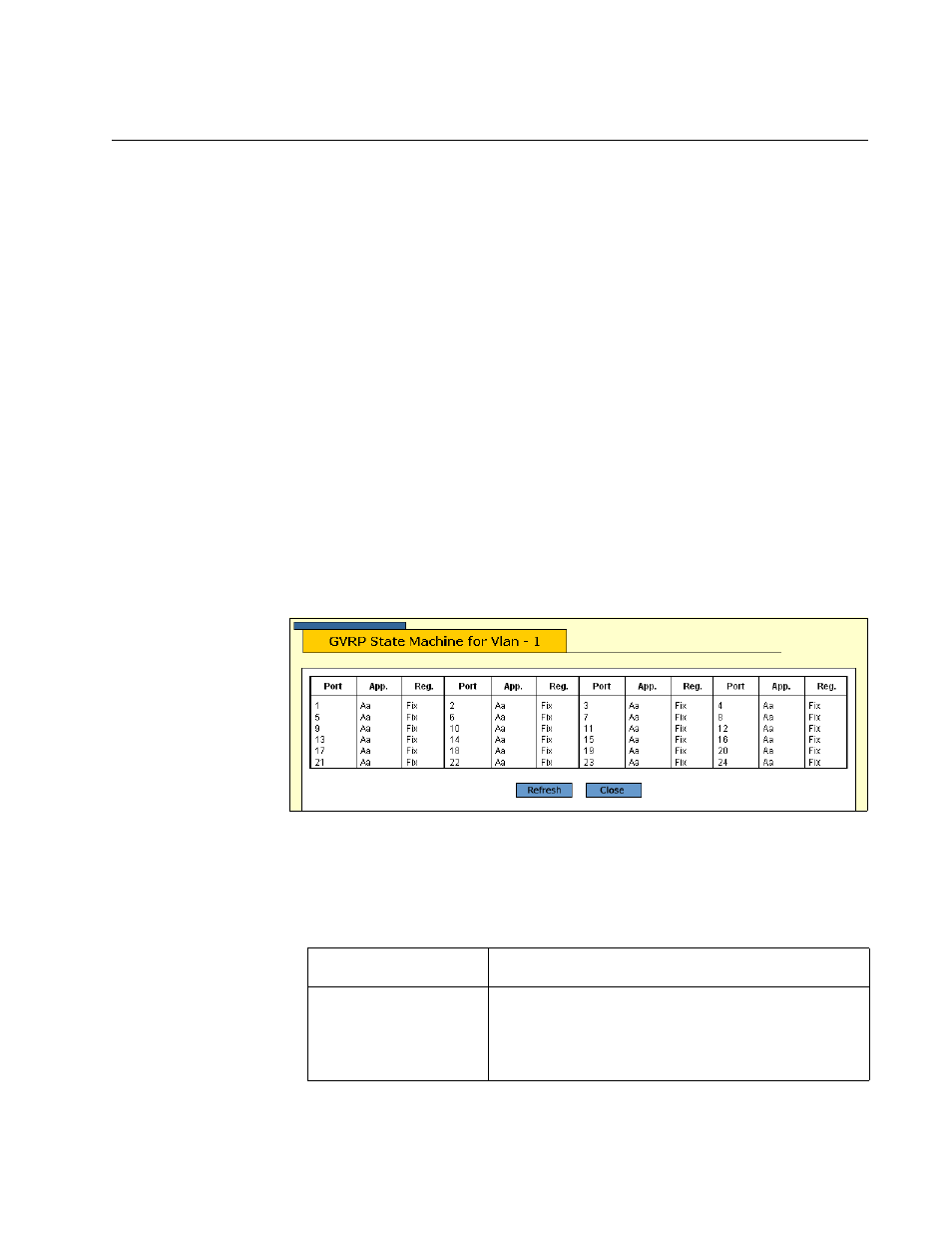

Figure 151. GVRP State Machine for VLAN Page
The GVRP State Machine for VLAN page provides the information
shown in
Table 12 .
Table 12. GVRP State Machine Parameters
Parameter Meaning
Port Port number on the switch; this port belongs to
the GARP application. If the GARP application
has no ports, “No ports have been assigned” is
displayed.
