Appendix A: Technical Specifications

62

Safety and Electromagnetic Emissions Certifications

EMI (Emissions):

FCC Class A, EN55022 Class

A, EN61000-3-2, EN61000-3-
3, VCCI Class A, C-TICK, CE

EMC (Immunity):

EN55024

Electrical and Laser Safety: EN60950-1 (TUV),

UL 60950-1 (

C

UL

US

),

EN60825

Quality and Reliability:

MTBF > 100,000 hrs.

Compliance Marks:

CE,

C

UL

US

, TUV, C-Tick

10/100Base-TX Port Pinouts

This section lists the pinouts for the RJ-45 connector for the
10/100Base-T twisted pair ports. The pin assignments are
shown in Figure 13.

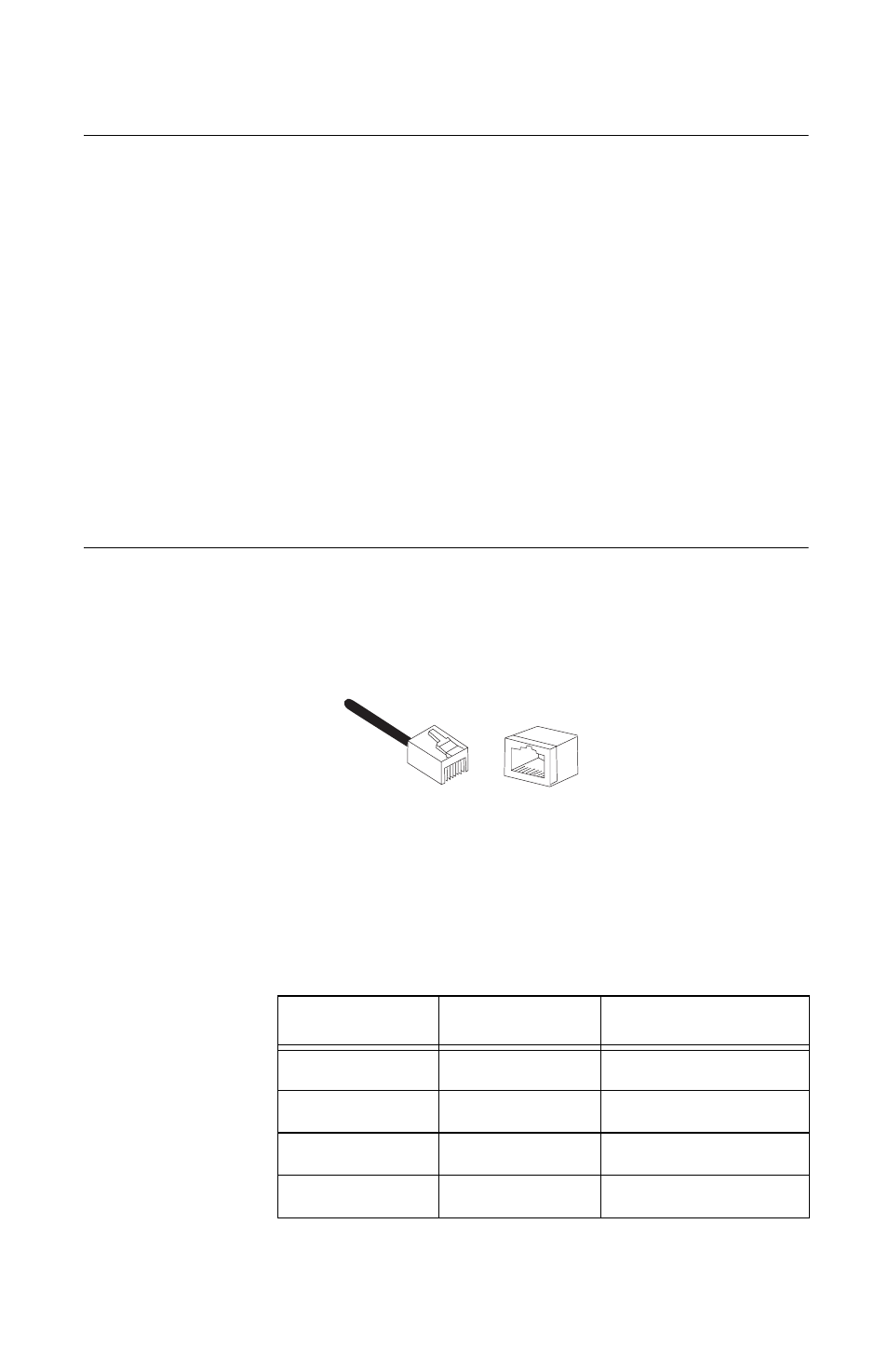

Figure 13. RJ-45 Connector and Port Pin Assignments

Table 10 lists the pins and their signals when the port is
operating in MDI or MDI-X configuration.

8

8

1

1

Table 10. 10/100Base-TX Port Pinouts

Pin

MDI Signal

MDI-X Signal

1

TX+

RX+

2

TX-

RX-

3

RX+

TX+

6

RX-

TX-
