AT-MCF2012LC and AT-MCF2012LC/1 Media Converter Modules Installation Guide

51

6.

Secure the media converter module to the chassis by
tightening the two captive screws on the module using
a cross-head screwdriver. Refer to Figure 12.

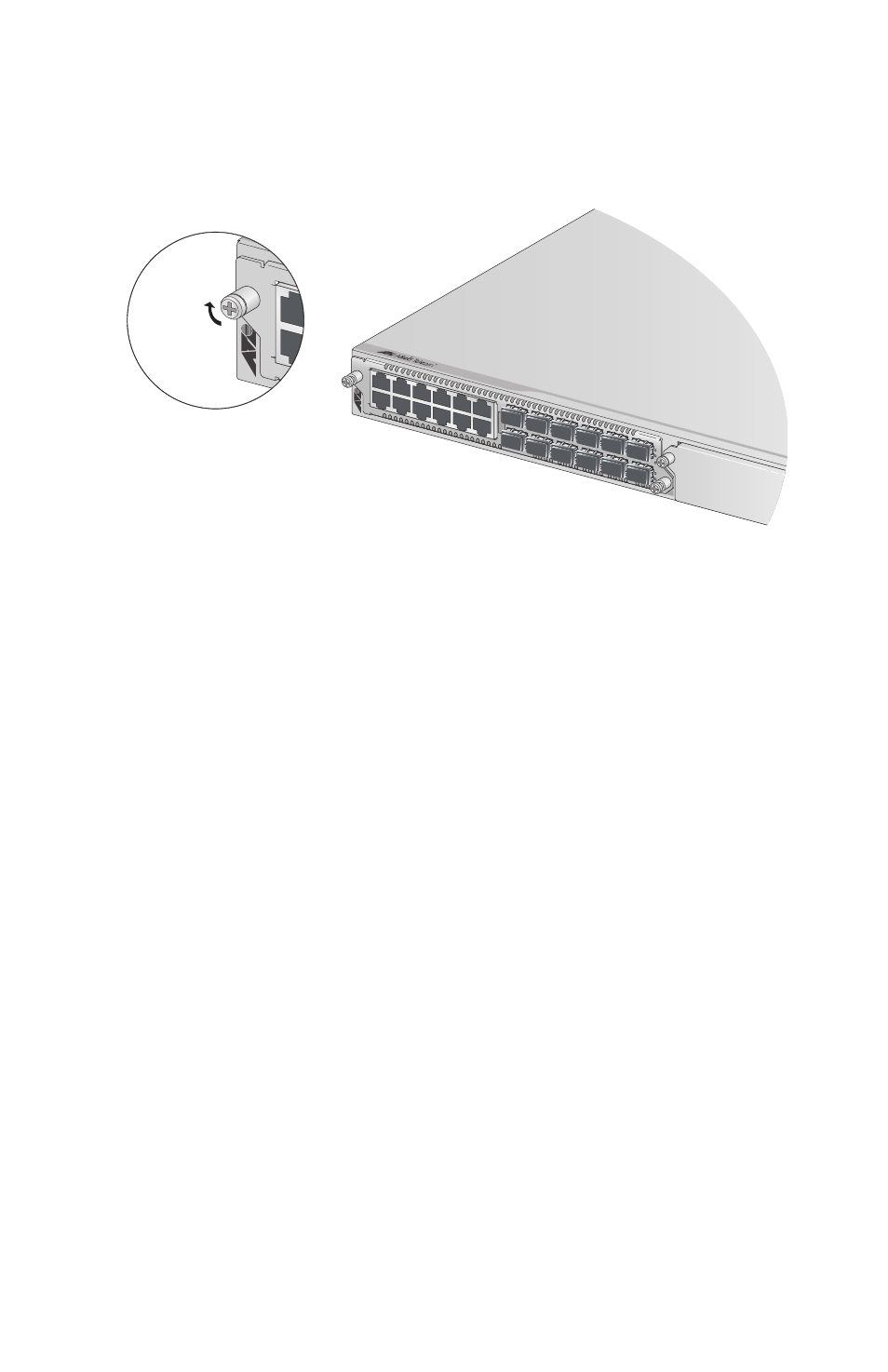

Figure 12. Securing the Media Converter Module

7.

If this is the initial installation of the media converter
chassis, return to the chassis’ Installation Guide and
perform the remaining procedures to complete the
installation. Otherwise, continue to the next procedure
to attach the network cables to the ports on the media
converter module.

1122-a

1

A

T

-MCF2012LC
