Chapter 3: Preparing the Switches of the Stack
64

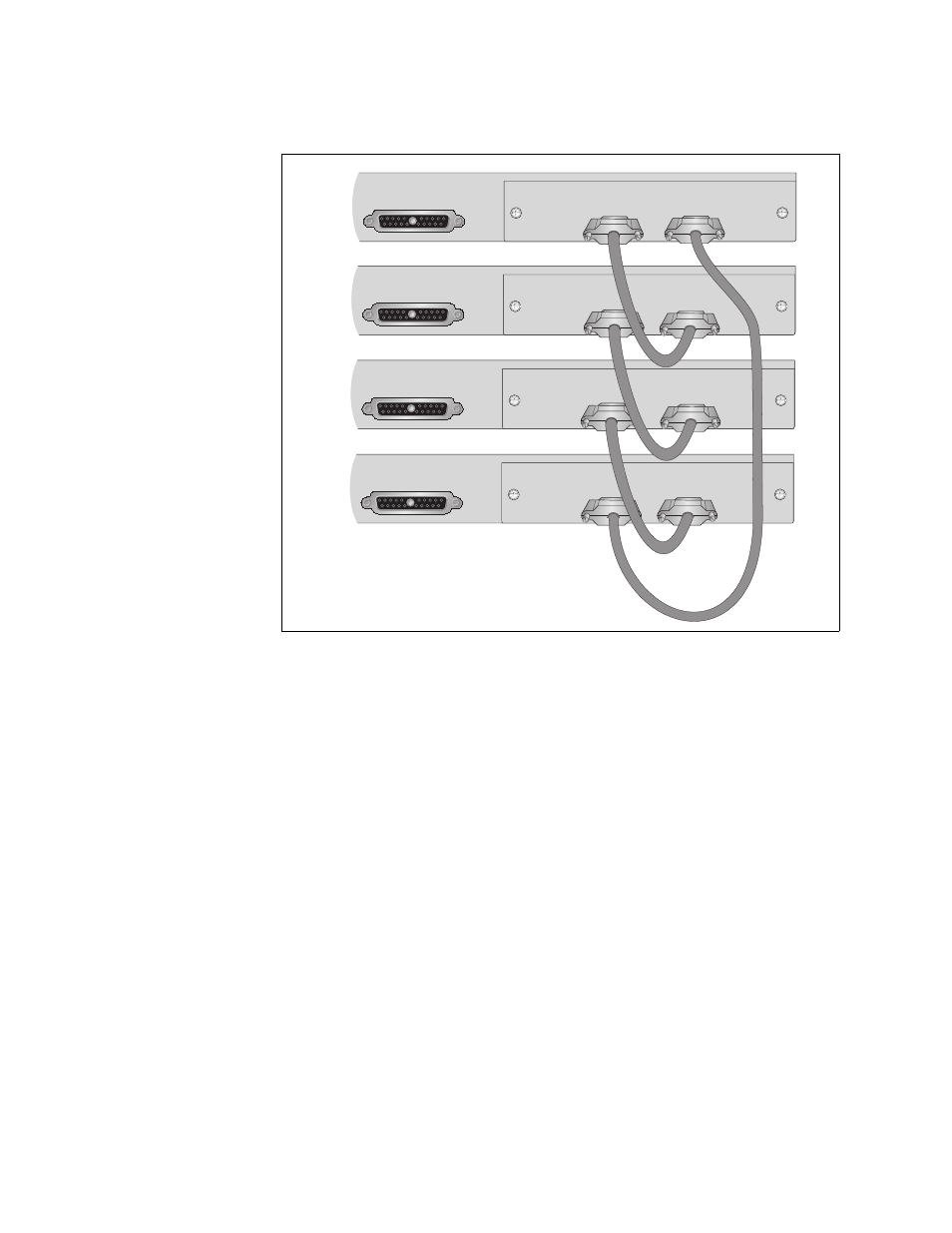

Figure 26 illustrates a stack of four switches in the ring topology.
Figure 26. Example Stack of Four Switches in the Ring Topology
6. Go to the next procedure to apply power to the switches of the stack.
