AT-StackXG Stacking Module
The expansion slot on the back panel of the AT-9424Ts, AT-9424Ts/XP,
and AT-9448Ts/XP Switches is designed for the optional AT-StackXG
Stacking Module and its two
full-duplex, 12-Gbps stacking ports. The module is
used to build a
stack
. Each switch in a stack must have this module.

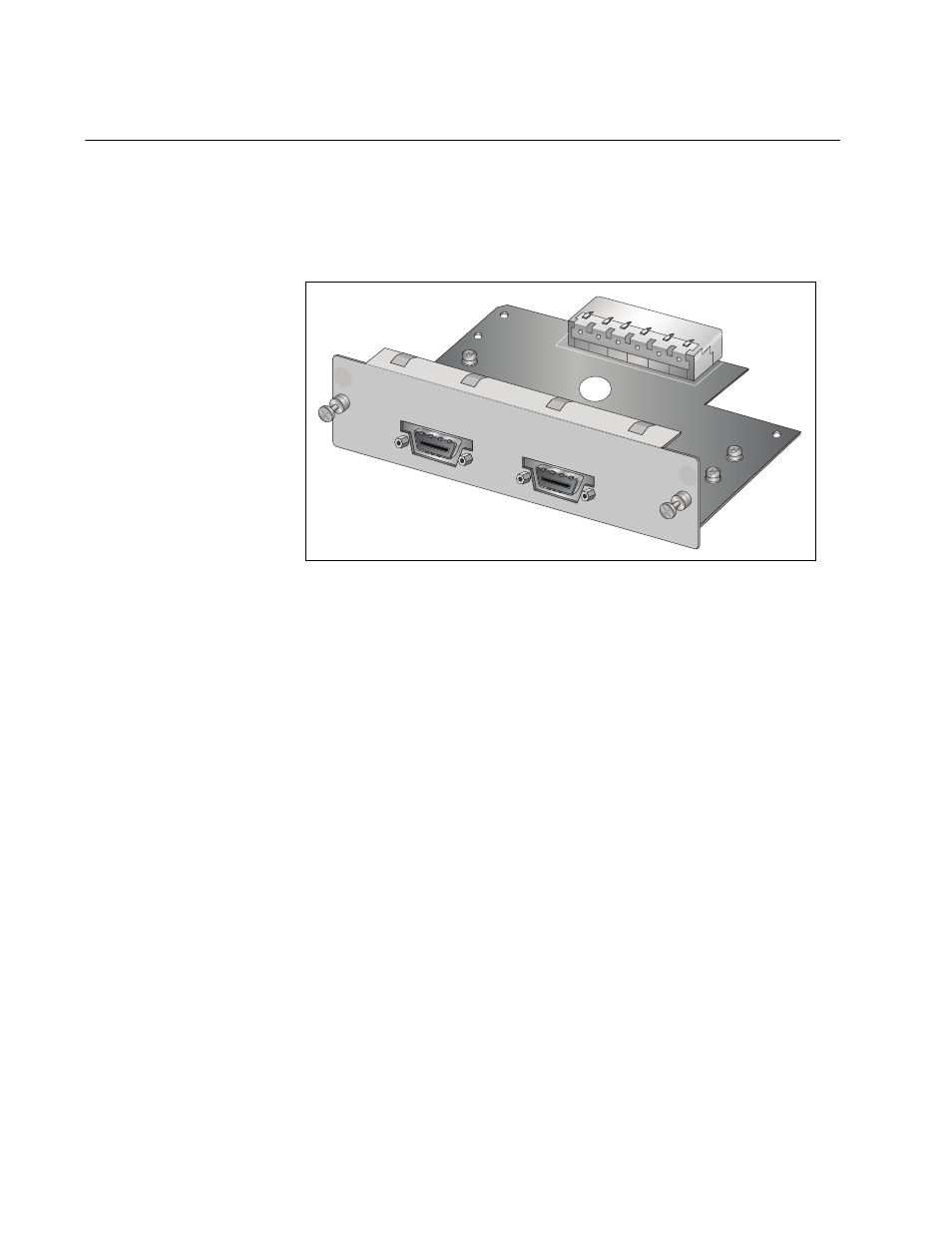

Figure 7
AT-StackXG Stacking Module
1240
AT-LX44CPUCVR
AT-StackXG
Stack Por
t 1
Stac
k Por
t 2
