Chapter 2: Installing the Hardware
50

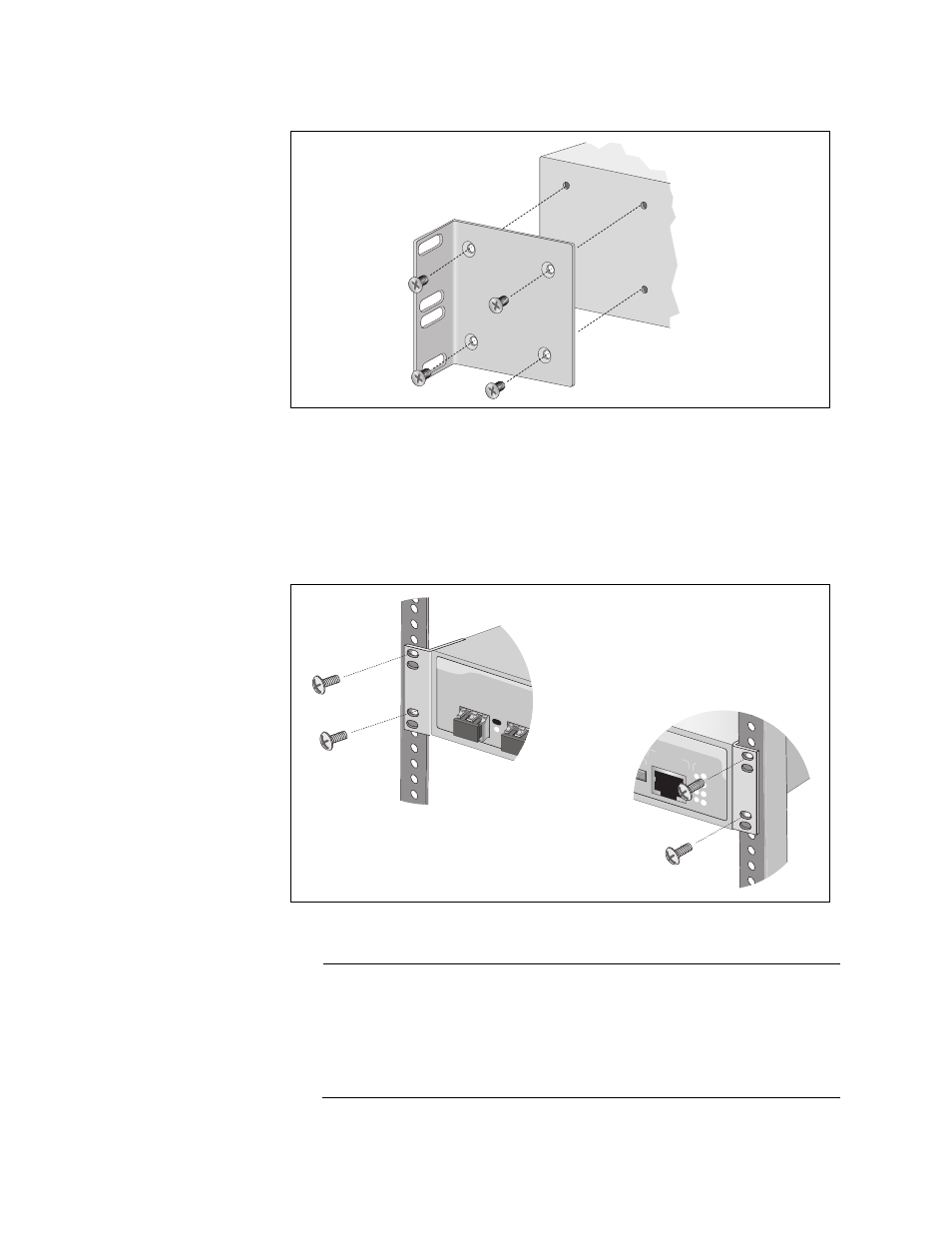

Figure 15. Attaching Rack-Mount Brackets
5. Install the second rack-mount bracket on the other side of the switch
with the four remaining screws.
6. Mount the switch in a 19-inch rack using standard screws (not
provided), as shown in Figure 16.
Figure 16. Mounting the Switch in a Rack
Note
After you have installed all the switches of the stack in the
equipment rack, go to Chapter 3, “Preparing the Switches of the
Stack” on page 51 for instructions on how to verify the version
number of the AT-S63 Management Software on the units, assign
module ID numbers, and power on the stack.
