Chapter 2: Installation

40

Powering On the Chassis

To apply power to the AT-MCF2000AC power supply
module and the AT-MCF2000 chassis, perform the
following procedure:

1.

Verify that the power switch on the module is set to
OFF.

2.

Plug the appropriate power cord for your region or
country into the AC power connector on the back panel
of the unit and plug the other end into an appropriate
power source. Refer to “Power Specifications” on
page 48 or the AT-MCF2000AC Power Supply Module
Installation Guide for the power requirements of the
chassis and the power module.

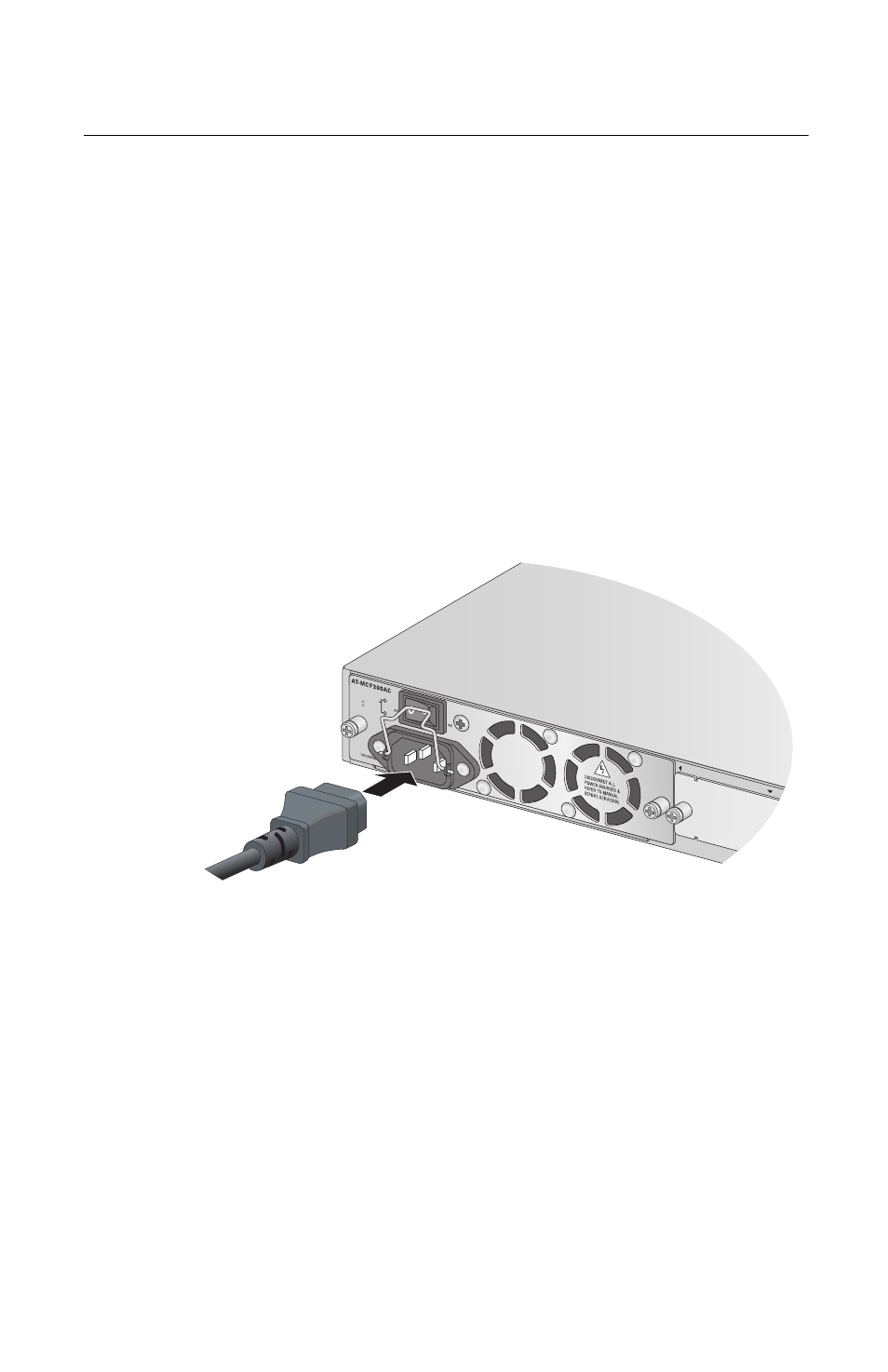

Figure 18. Connecting the AC Power Cord

1116-a

AT-MC

F2KPN

L3

NORMAL
FAULT

STAT

US

PSU

FAN

M

A
