Chapter 1: Overview
16
Media Converter Module Slots
The two slots on the front panel of the chassis are for the
media converter modules, such as the twelve channel
AT-MCF2012LC Fast Ethernet Media Converter Module.
Media converters are designed to interconnect networking
devices over large distances by transferring network traffic
between twisted pair cable and fiber optic cable. For a list of
available media converter modules for the AT-MCF2000
chassis, contact your Allied Telesis sale representative or
visit our web site. For background information and specific
installation instructions for a media converter module, refer
to the Installation Guide that ships with the module.
Management Module Slot
The management module slot on the back panel is intended
for either the AT-MCF2000M Management Module or the
AT-MCF2000S Stacking Module. See the following sections
for a description of these modules.
AT-
MCF2000M
Management
Module
The AT-MCF2000M Management Module allows you to
configure the operating parameters of the media converter
modules, such as the speed and duplex mode of the ports,
and monitor the status of the modules and channels. See
Figure 4.

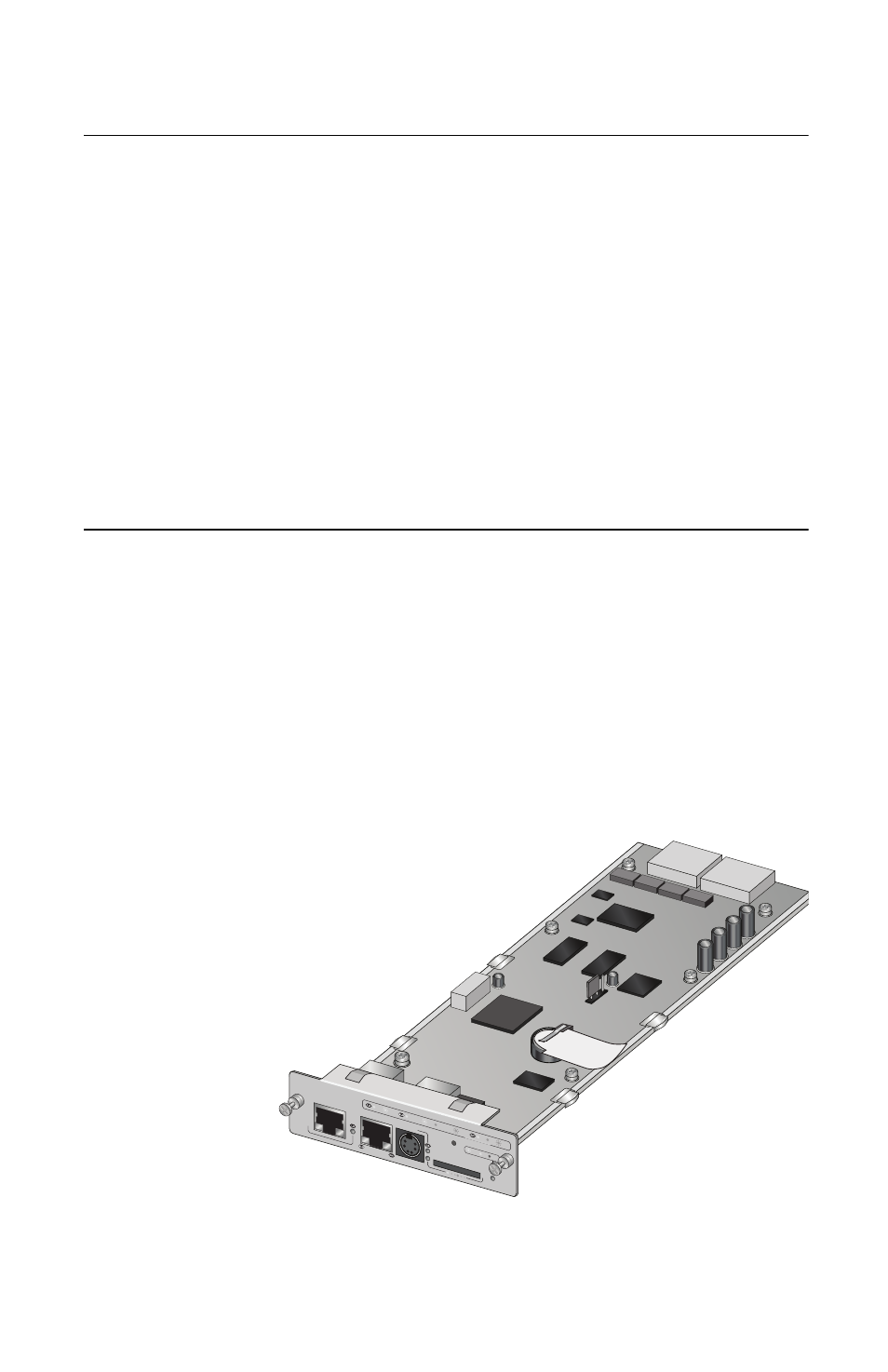

Figure 4. AT-MCF2000M Management Module
AT-MCF2000M
STACK
MANAG
EMENT
TERMIN AL
10/100/1 000BAS E-T
RS-232
RESET
SD
RDY BUSY MASTE R
POWER
BOOT RDY FAULT
1000 LIN K ACT 10/10 0 LINK
ACT
FDX HDX
COL
LINK
ACT
PORT A
CTIVIT Y
1198a
