Chapter 2: installation 30 – Allied Telesis AT-MCF2000 User Manual
Page 30
Chapter 2: Installation
30

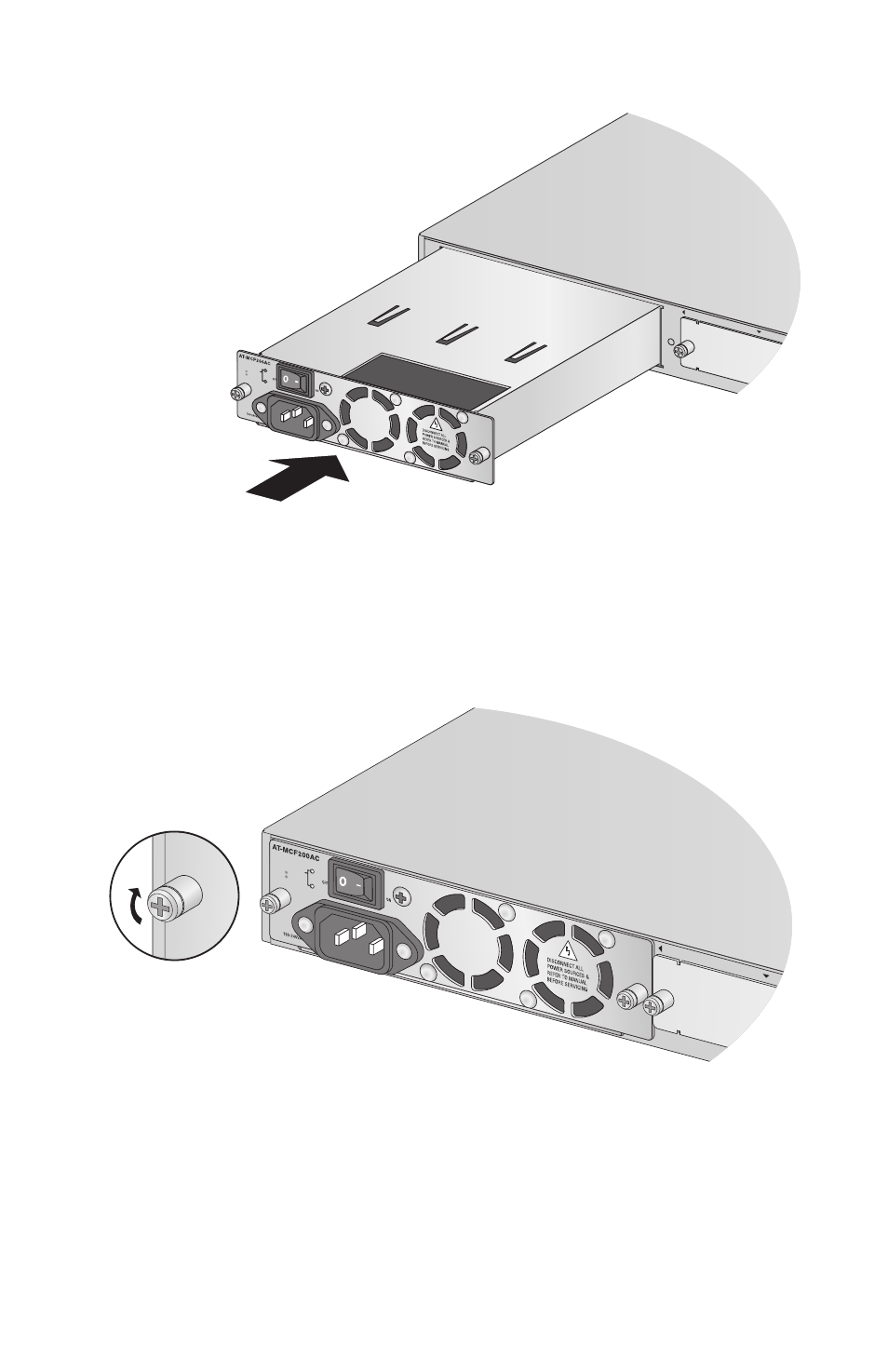

Figure 9. Installing the AT-MCF2000AC Power Supply
Module
5.
Secure the power supply module to the chassis by
tightening the two captive screws on the module using
a cross-head screwdriver. Refer to Figure 10.
Figure 10. Securing the AT-MCF2000AC Power Supply
Module
AT-MCF2KPN
L3
NORM
AL
FAULT
STAT
US
PSU
FAN
1111-a
MANAG
A
1113-a
AT-MCF2KPNL
3
NORMAL
FAULT
STATU
S
PSU
FAN
M
A
