30 AT-WNU300N - IEEE802.11b/g/n 2T2R Wireless Fast USB Adapter - User Manual

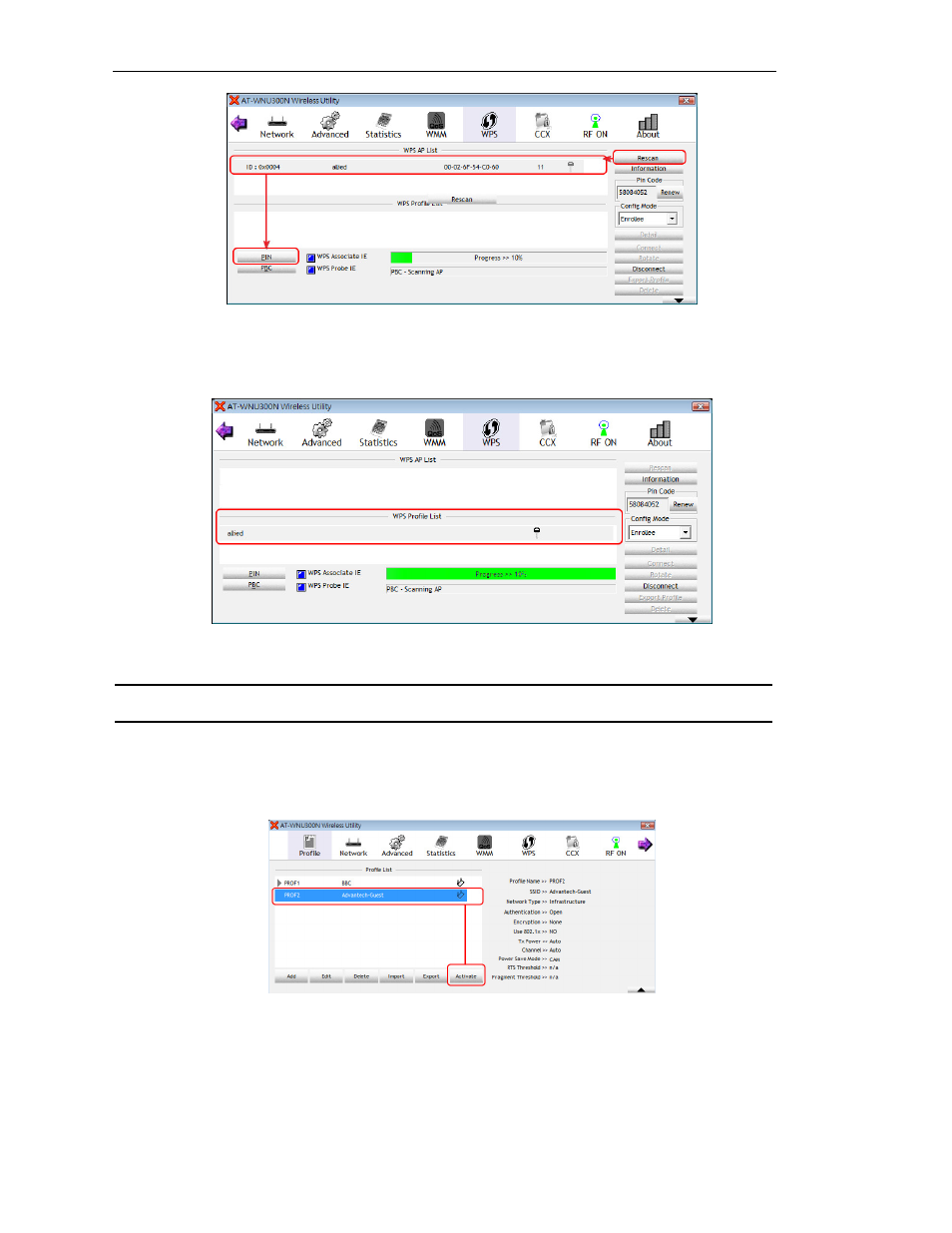

Figure 47: Click on PIN
4. Select the wireless AP from WPS AP List, and then click on “PIN” to implement the connection.
As the connection successes, the network will be shown in the WPS Profile list.
Figure 48: WPS Successfully
Note: After running WPS on wireless AP, you need to push “PIN” button on wireless adapter
in 120 seconds. Otherwise you need to perform the procedure from step 1.
Connect to a Regular Network
You can connect to a saved profile to save time. Please perform the following procedure to connect to a
regular network.
Figure 49: Connect to a Regular Network
1. In “Profile” tab, select a saved profile from profile list.
2. Click on “Active”.
