20

AT-WNU300N - IEEE802.11b/g/n 2T2R Wireless Fast USB Adapter - User Manual

Connect to an Un-secured Network

Please perform the following procedure to connect to an un-secured network.

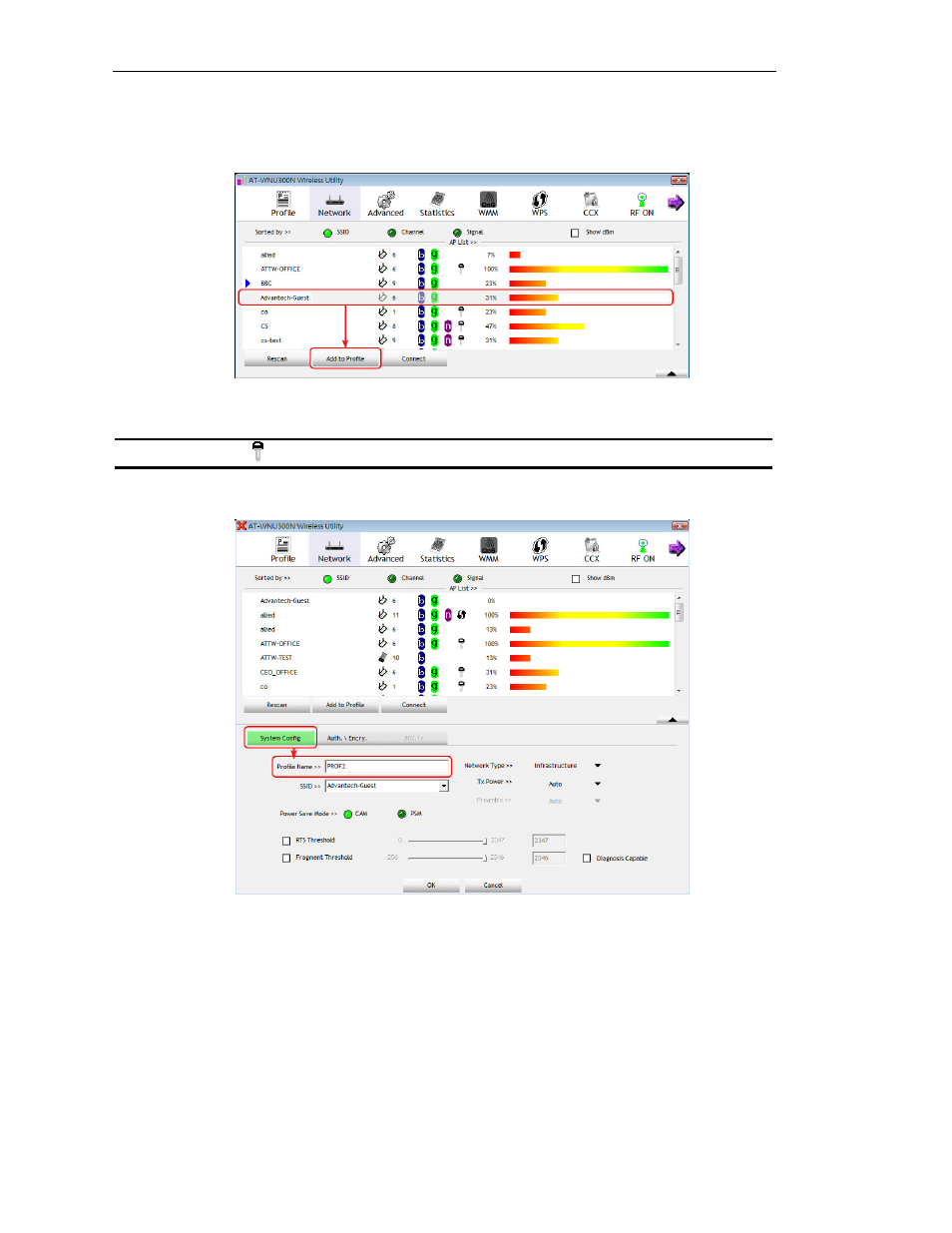

1. Go to “Network”, select the AP you want to connect to, and then click on “Add to Profile”.

Figure 19: Select a Network

Note:

icon in the AP List indicates a secured network.

2. In “System Config” tab, input a Profile Name to identify.

Figure 20: Configure Profile

3. In “Auth.\Encry.” Tab, confirm that the Authentication is “Open” and the Encryption is “None”.
