Allied Telesis AT-WNU300N - Manual (Page 25)

AT-WNU300N IEEE802.11b/g/n 2T2R Wireless Fast USB Adapter User Manual 25

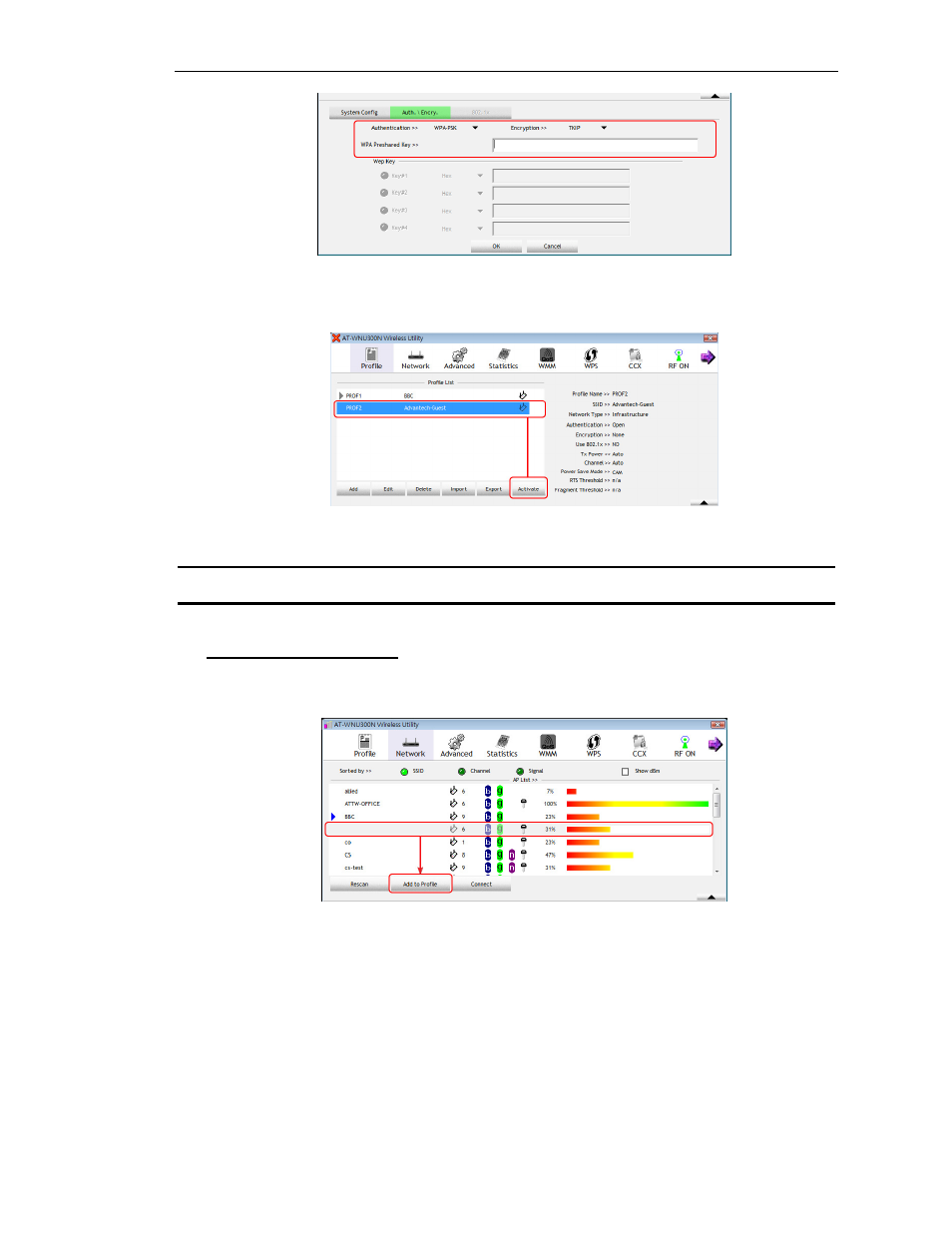

Figure 33: Configure Auth./Encry.
4. In “Profile” tab, select the profile you want to connect to, and then click on “Active”.
Figure 34: Active a Non-broadcasting Network
Note: The SSID and encryption settings must be exactly the same with the wireless AP,
otherwise it will result in a failure.
1. In “Network” tab, select the AP you want to connect to. Non-broadcasting SSID is blank in SSID
column, as shown in figure 34. Click on “Add to Profile”.
Figure 35: Select a Non-broadcasting SSID
2. In “System Config” tab, give the profile a name to identify, and then input SSID. The SSID must be
exactly the same with the wireless AP.
