AT-WNU300N IEEE802.11b/g/n 2T2R Wireless Fast USB Adapter User Manual 23

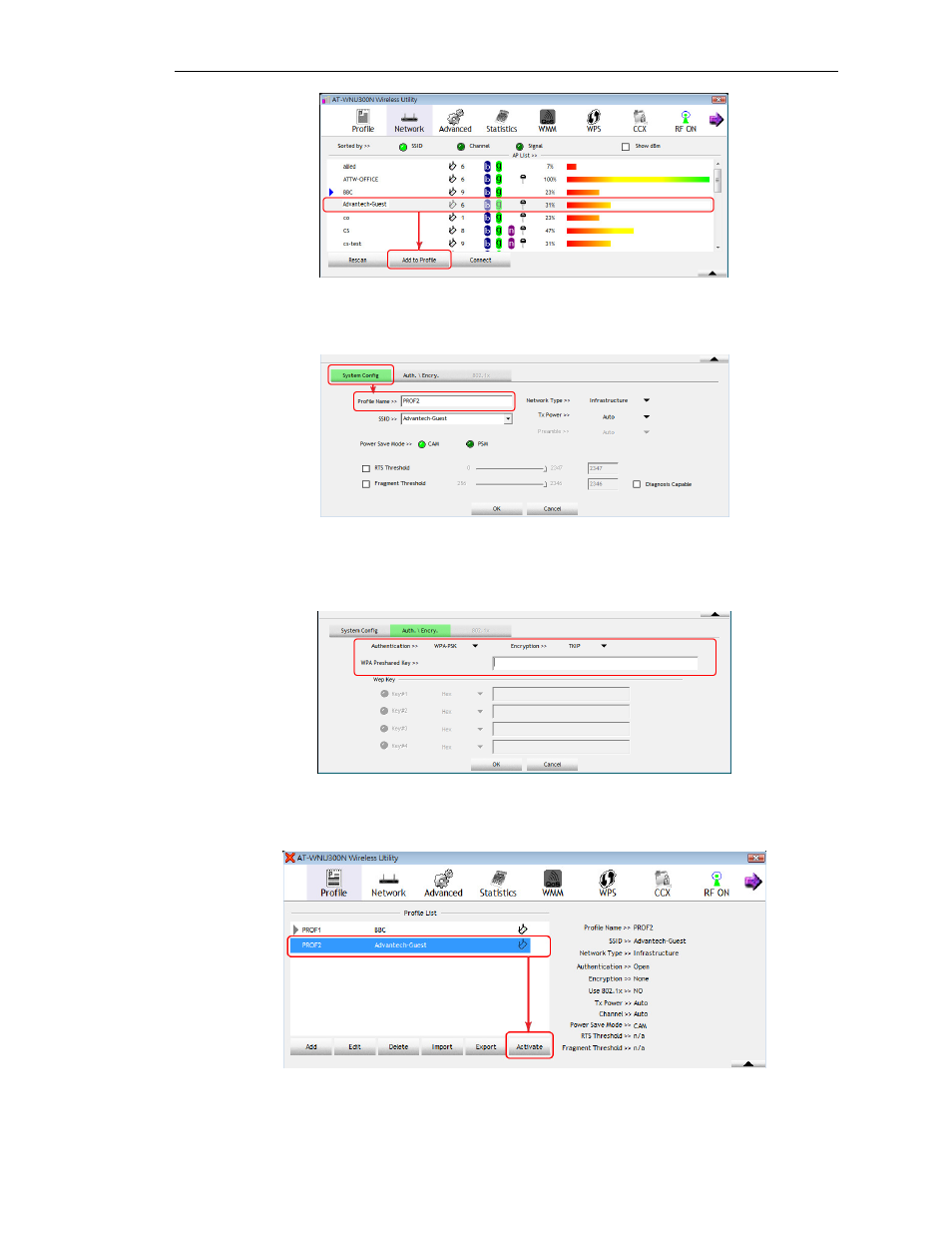

Figure 27: Select a Network
2. In “System Config” tab, give the profile a name to identify.
Figure 28: Configure Profile
3. In “Auth.\Encry.” tab, confirm that the Authentication and Encryption setting is corresponding to the
wireless AP. Input the Key and then click on “OK” to apply the settings.
Figure 29: Configure Auth./Encry.
4. In “Profile” tab, select the profile you want to connect to, and then click on “Activate”.
Figure 30: Active a WPA-PSK/WPA2-PSK Network
