x510DP-52GTX Installation Guide
65
3. Turn the switch over.
4. Attach the two rack mount brackets to the sides of the switch using the
bracket screws included with the unit. Figure 27 on page 65 illustrates
the four possible bracket positions.

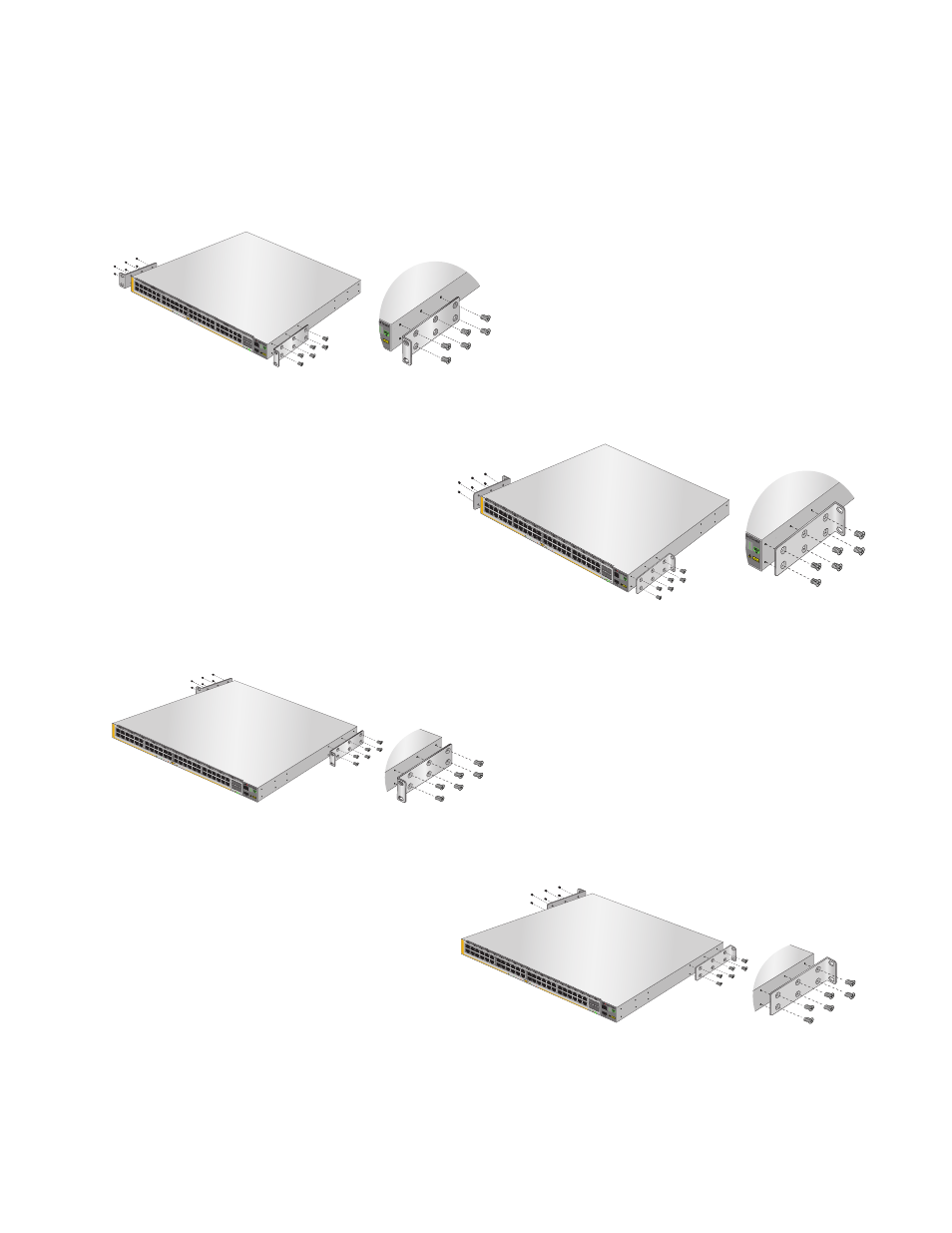

Figure 27. Attaching the Equipment Rack Brackets
2672
