Allied Telesis AT-x510DP-52GTX User Manual
Page 61
x510DP-52GTX Installation Guide
61

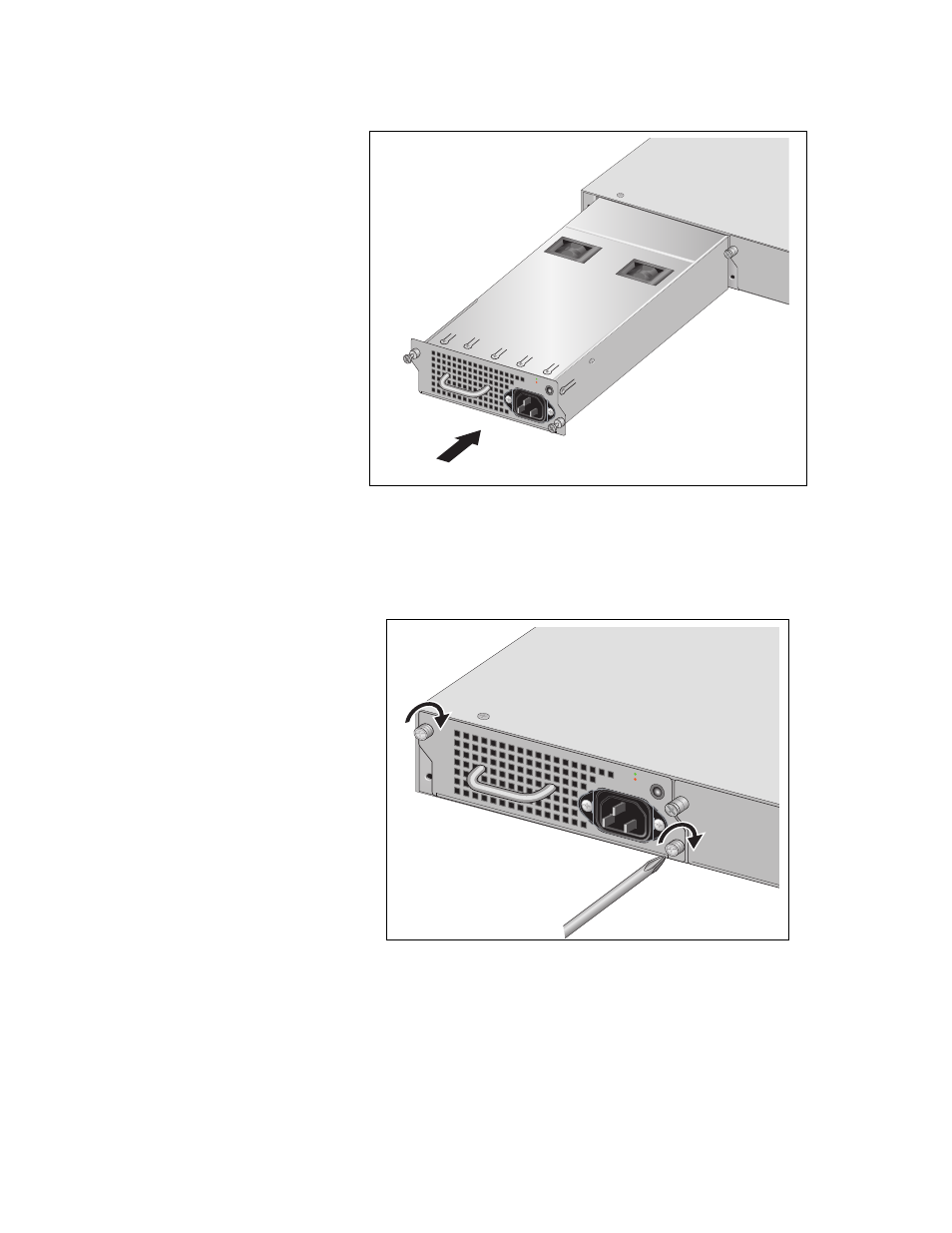

Figure 22. Installing the AT-PWR100R AC Power Supply Module
4. Secure the power supply module to the chassis by tightening the two
captive screws with a cross-head screwdriver, as shown below.
Figure 23. Securing the AT-PWR100R Power Supply Module
2268
DC OU
T
FAUL
T
A
T
-PWR100R
100-240
VAC~ 2
A MAX
2269
DC OUT
FAUL
T
A
T
-PWR100R
100-2
40VAC~ 2
A MA
X
