FOR F-SERIES TERAFAME GEN 2 CABINET

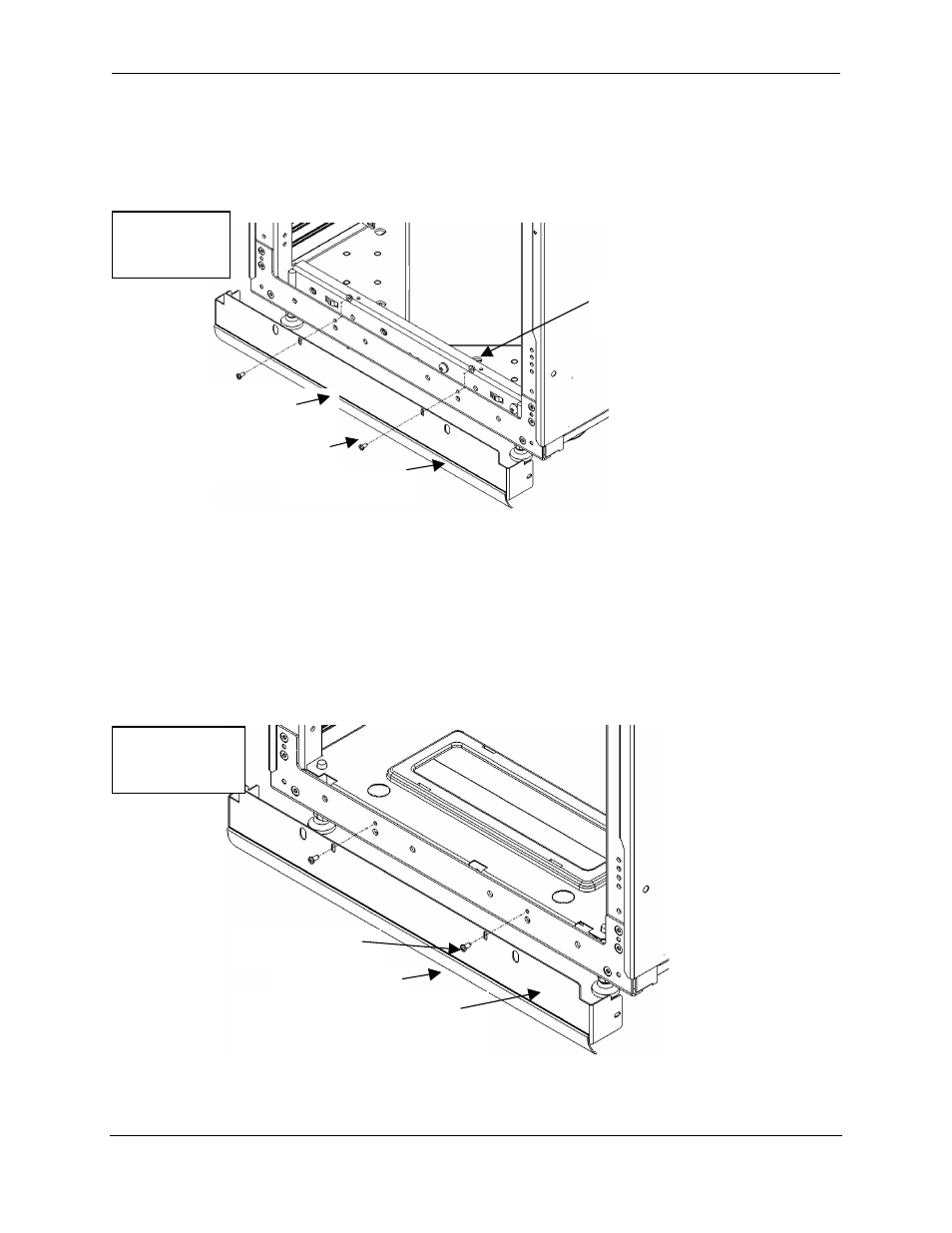

1. Install bottom seals on front and rear of each cabinet as shown.
2. Install side bottom seal on end row cabinets.
FRONT/REAR BOTTOM
SEAL
M4X12 SCREW
RUBBER SEAL
M4
NUT
Without
bottom panel
M4X12 SCREW
RUBBER SEAL
FRONT/REAR BOTTOM SEAL
With bottom
panel
