BTS Aisle Containment Manual, Rev. 1.0 ___ December 2013
Chatsworth Products 19

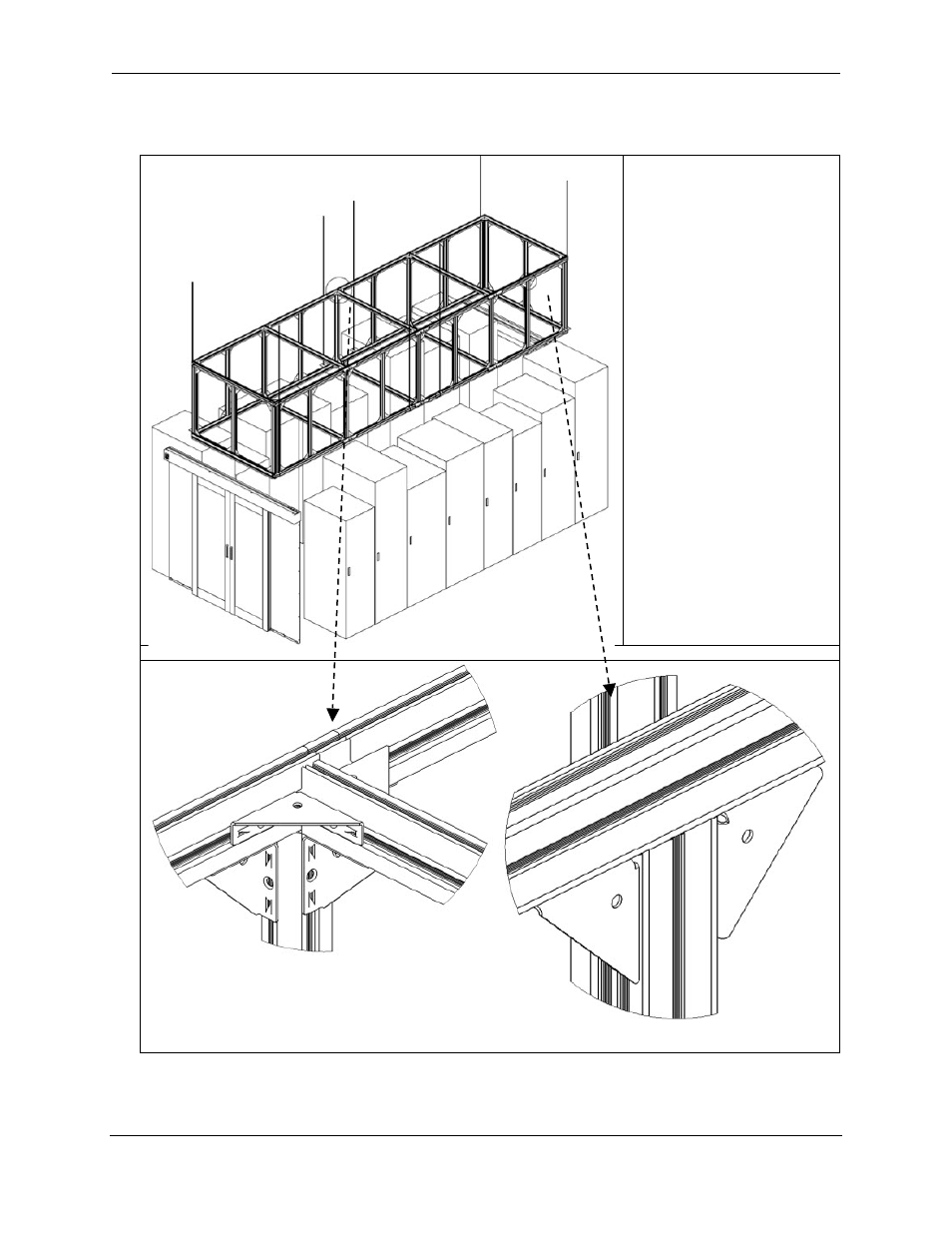

9. Repeat the previous steps to cut and assemble a top frame for the duct. Attach
cross extrusions at the top also.The top frame of the duct touches the drop ceiling.
• The flat side of the
extrusion should
face the inside of the
containment/duct.
• Use two plate
gussets with two
screws each at each
corner.
• Use two plate
gussets with two
screws each at each
vertical extrusion.
• Use three plate
gussets with two
screws each at each
cross extrusion.
