BTS Aisle Containment Manual, Rev. 1.0 ___ December 2013
Chatsworth Products 15

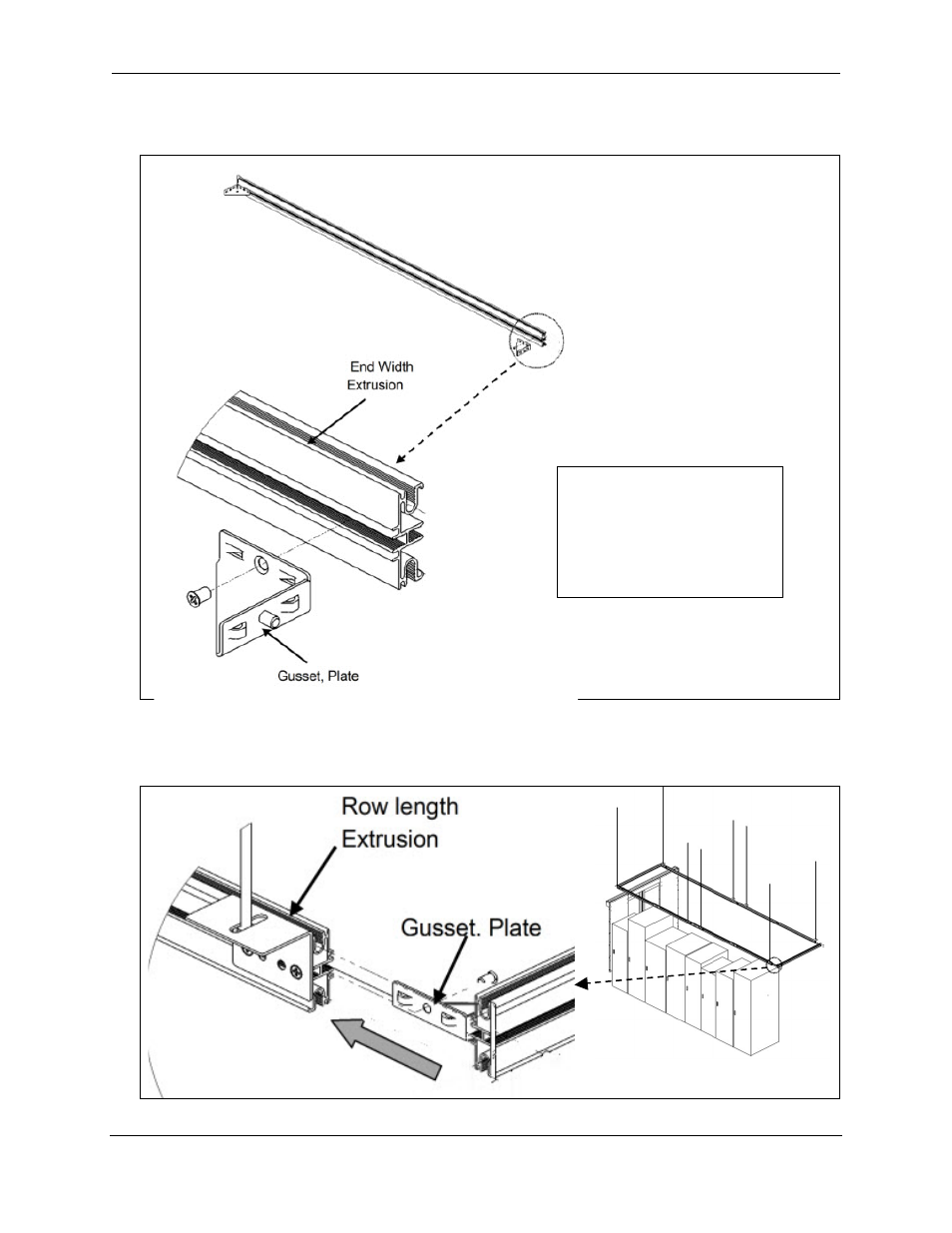

4. Cut extrusions to cap the ends of the duct and attach with Plate Gussets as shown
below. Note the orientation of the Extrusion; the Plate Gusset goes inside the duct.
5. Attach the extrusions to the ends of the duct with the Plate Gussets. Note the
orientation of the Extrusion; the Plate Gusset goes inside the duct.
The flat side of the
Extrusion faces the inside
of the containment. The
curves face the outside of
the containment/duct.
