Horner APG SmartBlock User Manual
Page 2
MAN0980-01-EN
Specifications/Installation
10/29/2013
No part of this publication may be reproduced without the prior agreement and written permission of Horner APG, LLC. Information in this document is subject to change without notice.
Page 2 of 5

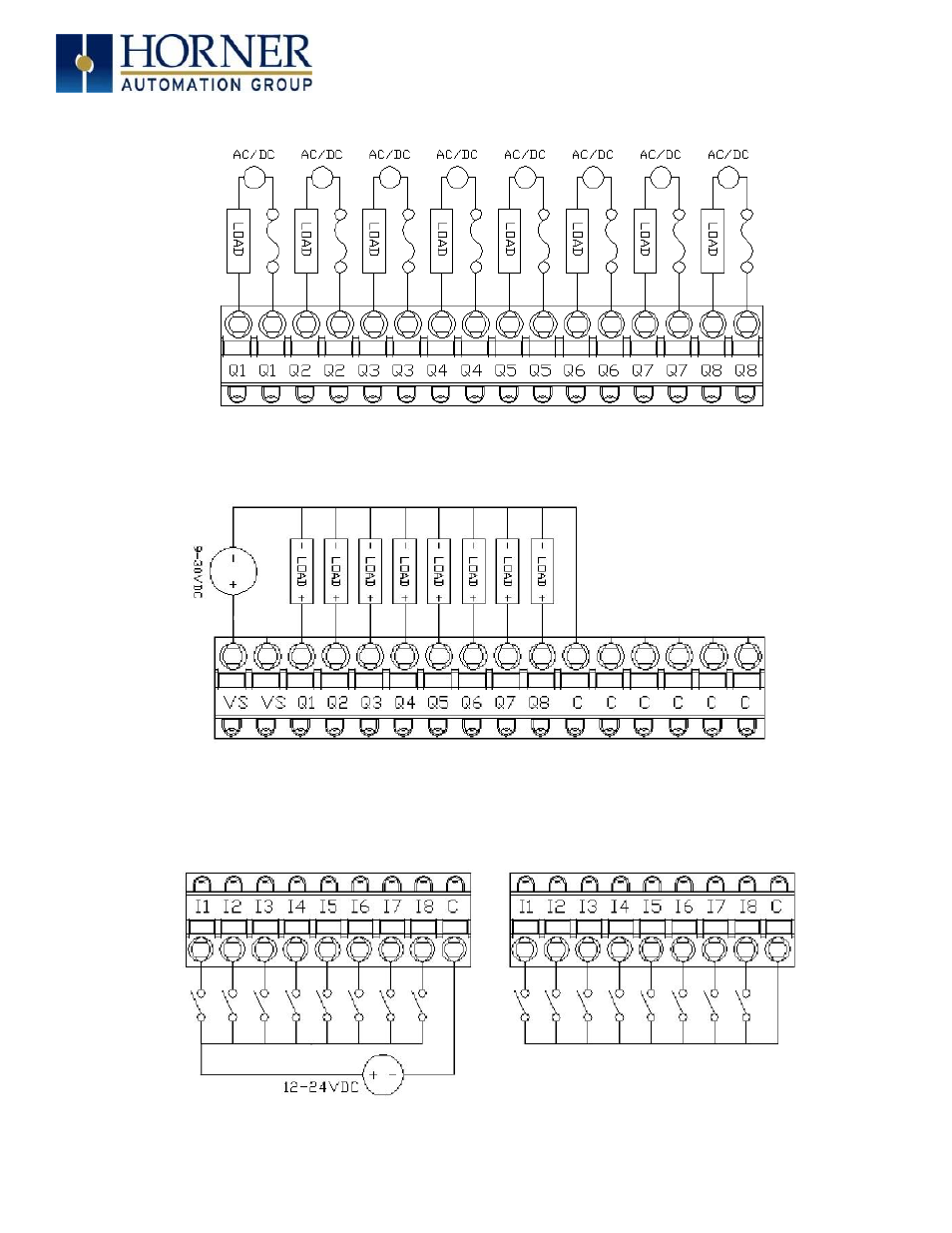

3. INTERNAL WIRING
Figure 1 - HE57DIQ880 Outputs
Figure 2 - He579DIQ881 Outputs
Figure 3 - HE57DIQ880/881 Inputs
Positive Logic
Negative Logic
