PAGE 2 10 NOV 2006 MAN0235-09
ADC020/120
Information is subject to change without notice. SmartStack is a trademark of Horner APG, LLC.

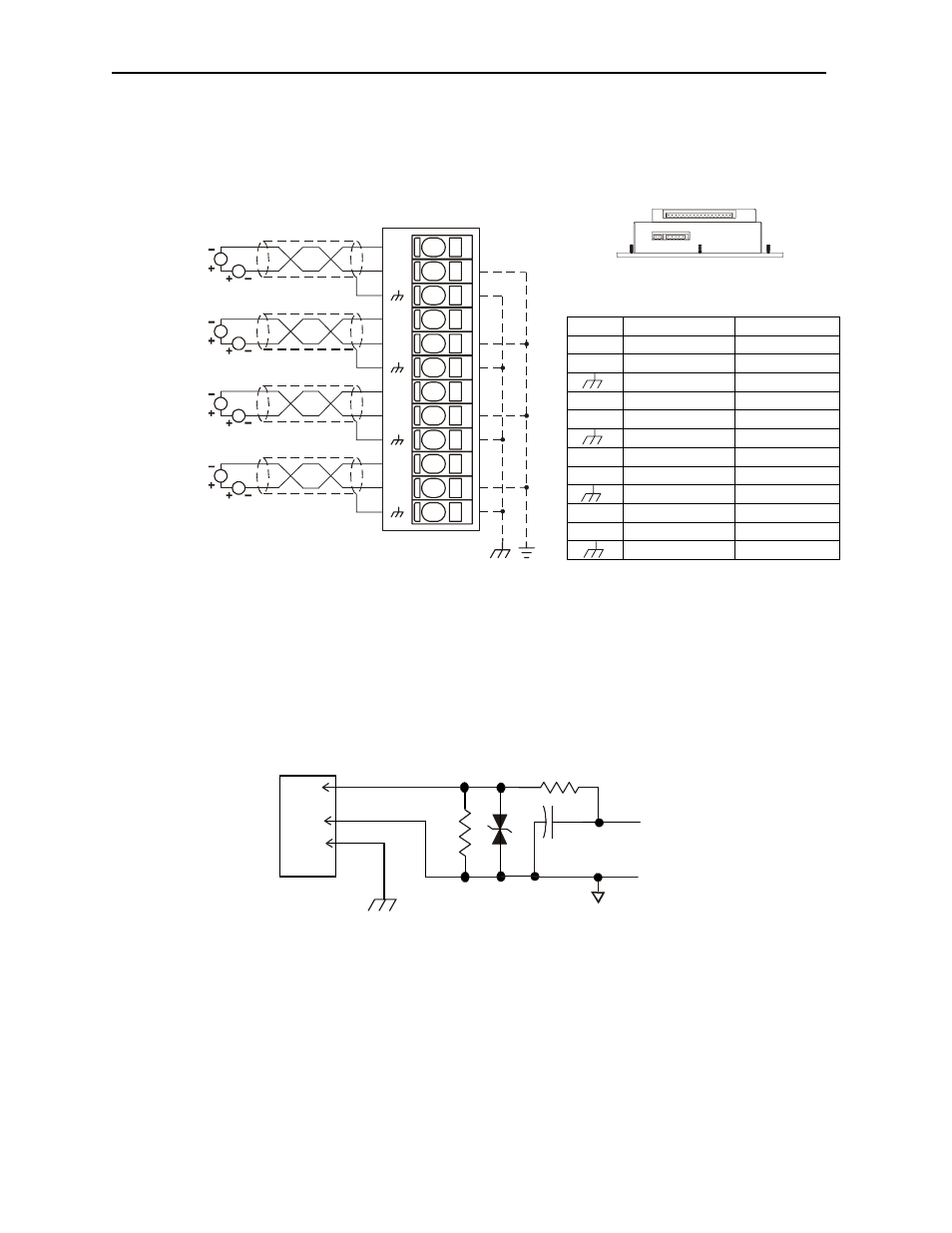

2 WIRING
Pin # ADC120 ADC020
1+ Channel 1+ Channel 1+
1- Common Common
Shield Shield
2+ Channel 2+ Channel 2+
2- Common Common
Shield Shield
3+ Channel 3+
3- Common
Shield
4+ Channel 4+
4- Common
Shield
3 INTERNAL CIRCUIT SCHEMATIC
*
OCS Bottom View – Shows
Corresponding I/O Pin
I/O Connector
Gnd
Shield
1+
1- To
Controller
SmartStack
Field
Side
100Ω
1+
2+
3+
4+
1-
2-
3-
4-
4-20mA
TRANSMITTER
LOOP
POWER
4-20mA
TRANSMITTER
LOOP
POWER
4-20mA
TRANSMITTER
LOOP
POWER
4-20mA
TRANSMITTER
LOOP
POWER
001ADC002
*
