PAGE 2 26 JUL 2004 MAN0416-04
2 INSTALLATION
2.1 Panel
Cut-Out

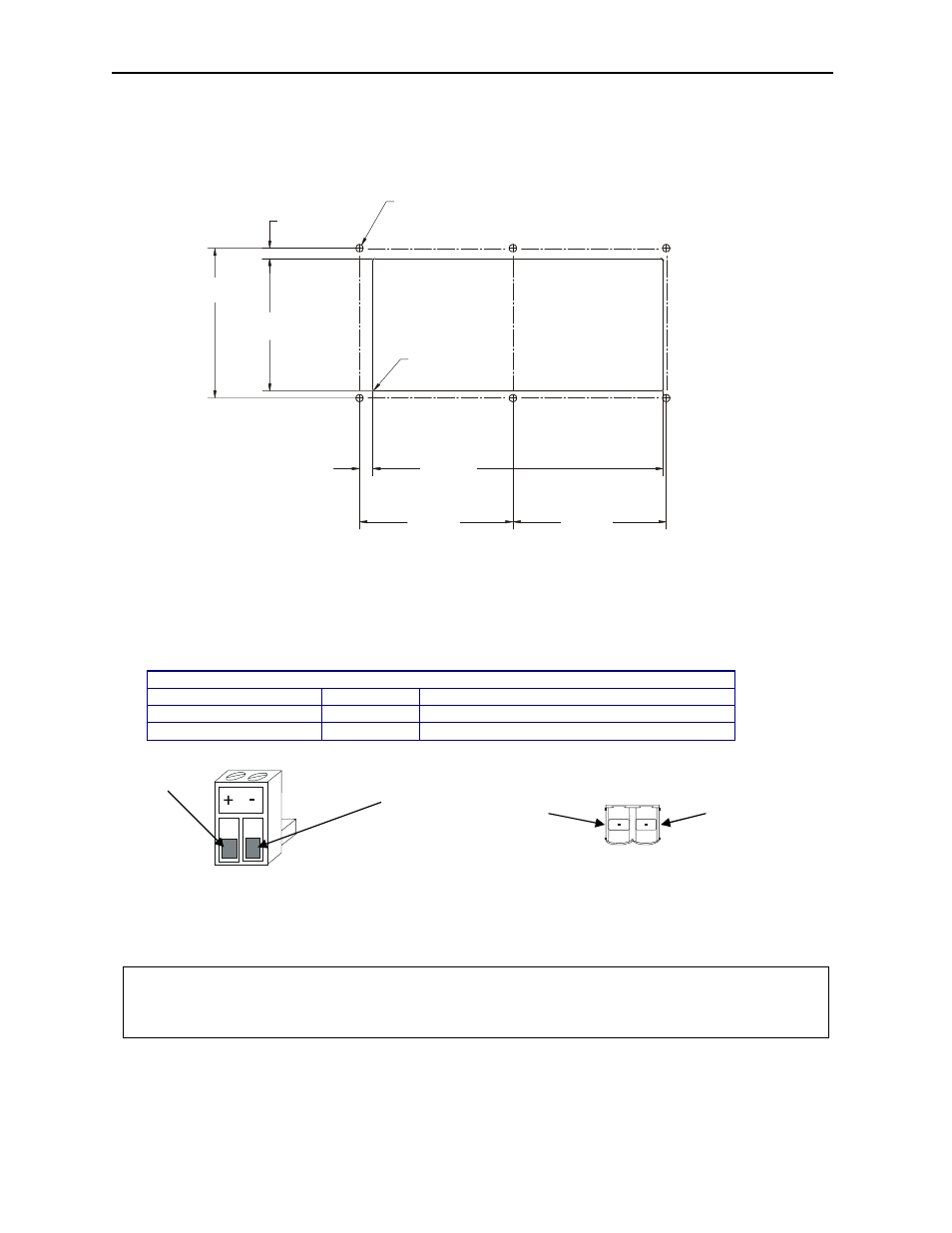

Figure 1 – Panel Cut-Out for the OCS100/110
2.2
Ports, Connectors and Wiring
2.2.1
Primary Power Port
Table 2 – Primary Power Port Pins
Pin Signal Description
1 V+ Input power supply voltage
2 V- Input power supply ground
Note: Power Supply Voltage Range is from 10-30 VDC.
Figure 2 Power Connector Figure 3 As viewed looking at
(Primary Power Port) the OCS models
Pin 2
Pin 1
Pin 2 Pin 1
Warning: To provide maximum noise immunity and to ensure minimum EMI radiation, the V-
signal (DC power return) need to be connected to earth ground at the power supply. The user must
ensure that the power supply selected is compatible with this method of grounding.
.062 (1.57mm)R.
TYP.
.280 (7.10mm)
7.151
(181.63mm)
3.730
(94.74mm)
3.730
(94.74mm)
3/16 (4.76mm) DRILL THRU
6X
3.312
(84.11mm)
3.643
(92.53mm)
0.207 (5.25mm)
001OCS023
