EN - English - I
nstruc
tions manual
17
7.2 Installation
7.2.1 Connecting the cables to the base
h Do not make any changes or install
connections that are not included in this
handbook. Failure to follow the connection
instructions that are given in the handbook
may create serious safety hazards for
people and for the installation.
h Do not change the wiring in the product
as it is supplied to you. Failure to follow
this instruction may create serious safety
hazards for people and for the installation,
and will also invalidate the guarantee.
j If using the washer kit (UPTWAS), the
spray support should be installed before
positioning the pan & tilt and the wiring.
For further explanations see the specific
handbook for the kit.

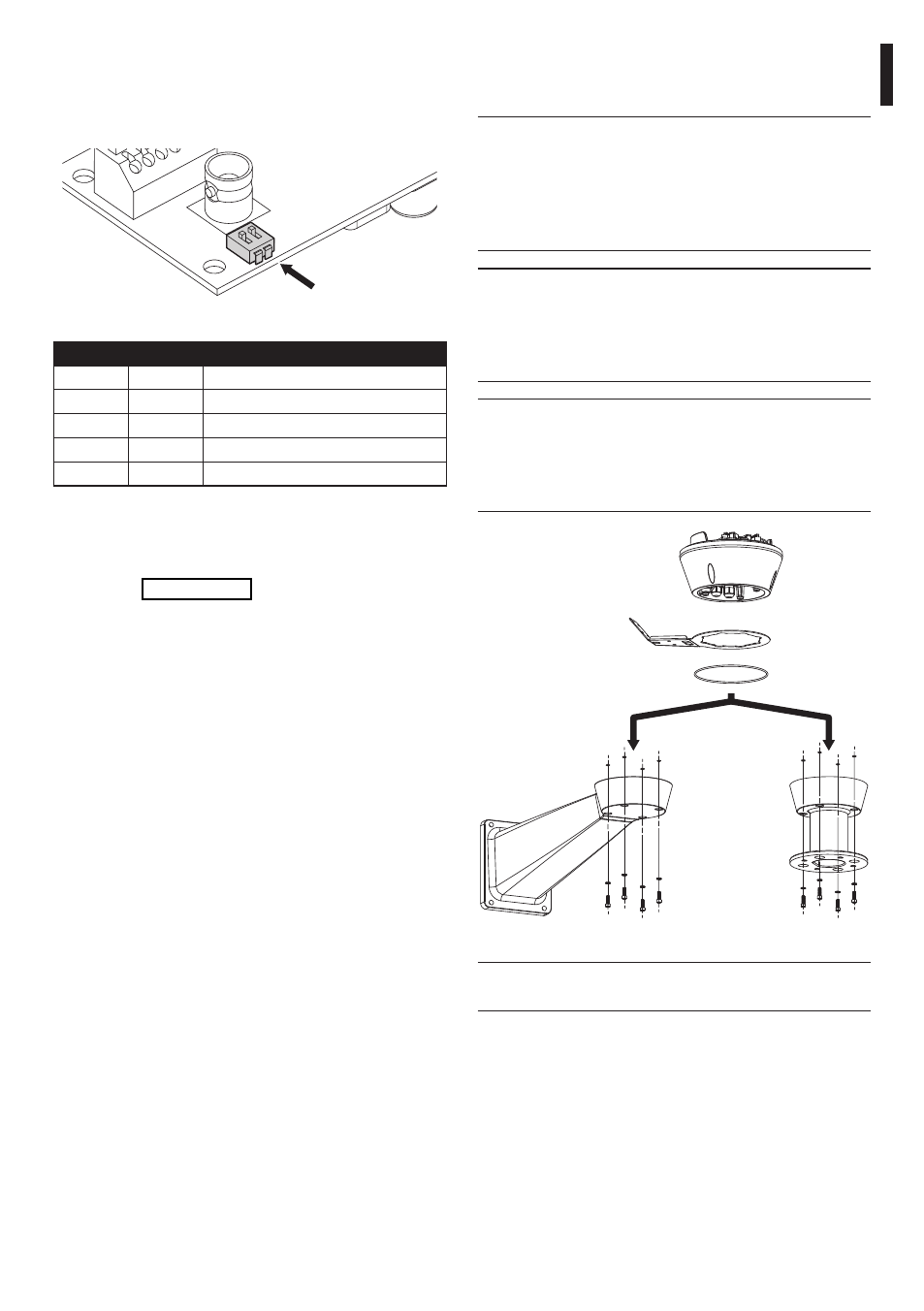

Fig. 25
j Keep a connection diagram for future
reference.
7.1.2.3 Adjusting the power supply voltage
of the lens motors
Before powering the Pan & Tilt, set the lens power
voltage using DIP1.
DIP1
Fig. 24
LENS POWER SUPPY VOLTAGE
DIP 1 DIP 2 Configuration
OFF OFF 15Vdc
ON OFF 12Vdc
OFF ON 9Vdc
ON ON 6Vdc
Tab. 03
7.1.2.4 Closing the housing
Close the housing following the opposite procedure
as shown in Fig. 10, page 13.
