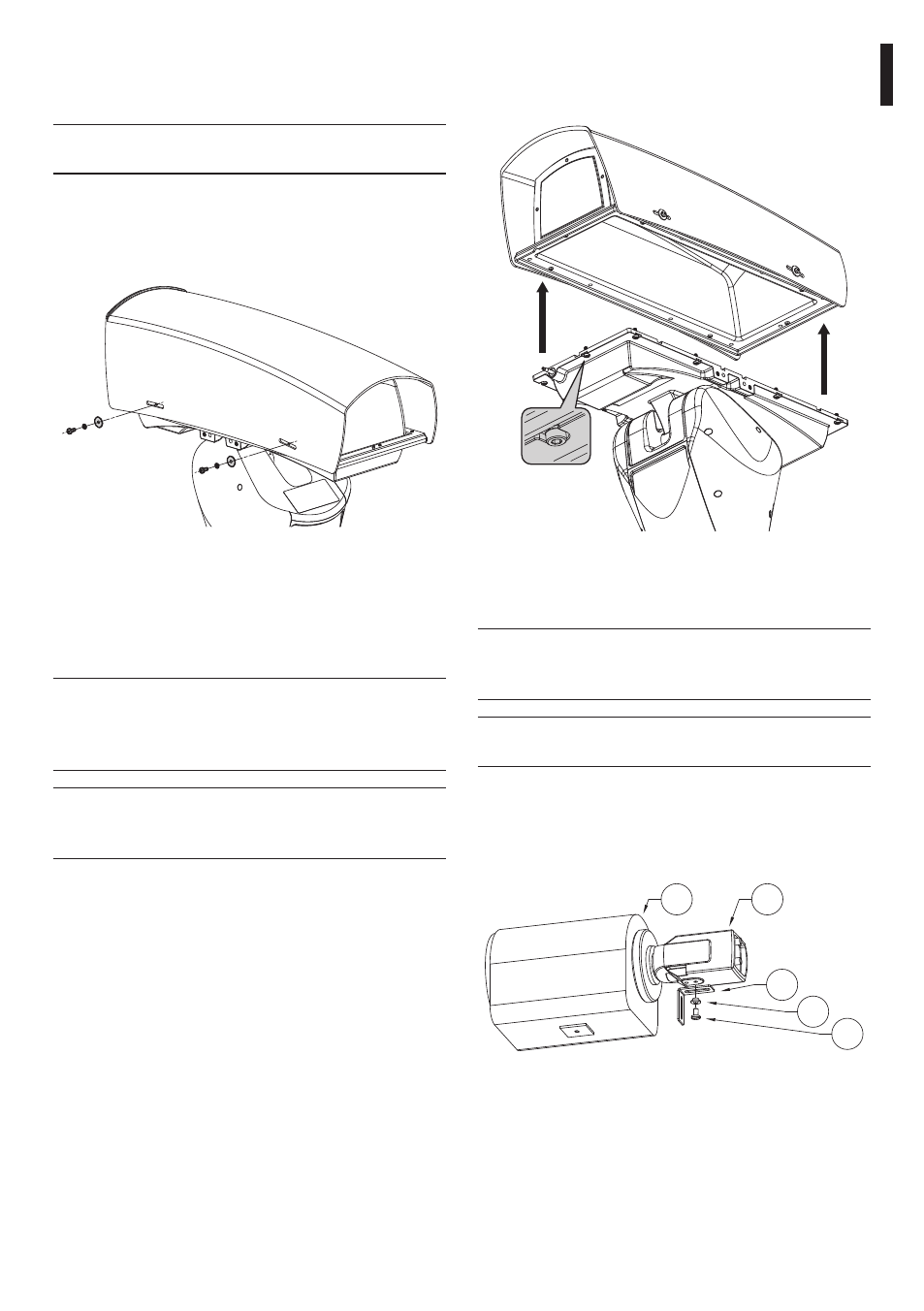

7.1.1.1 Housing opening and camera
installation
Unscrew the captive screws.
Fig. 10
7.1.1.2 Fastening of the lens and camera to
the internal slide
h It is necessary to insulate the camera body
from the attachment slide in order to
prevent interference with the video signal.
h Maximum overall weight allowed for
cameras and lenses must not exceed 4.5 Kg.
Hook the camera (02) to the lens (01).
Fasten the L-shaped small aluminium bracket of the
selected length (03) to the camera by means of the
nylon washer (04) and the 1/4" screw (05).
02 01
03
04
05
Fig. 11
Position the lens on the slide (02) interposing the
plastic spacer (01), and fasten the whole assembly by
means of the nylon washer (03)and the 1/4" screw
(04).
7 Assembling and
installing
h Only specialised personnel should be
allowed to assemble and install the device.
7.1 Assembly
Mount the sunshield to the housing with the four
screws and 4+4 washers provided as standard.
Fig. 09
7.1.1 Assembling the camera and
motorised lenses
For some models of the P&T the customer has to take
care of assembling the camera and lenses.
h The correct device working, in the stated
temperature range, is guaranteed with the
use of camera and lens with temperature
from -10°C up to +60°C.
h The camera output video signal must be of
the composite type with amplitude 1Vpp
(negative sync).
