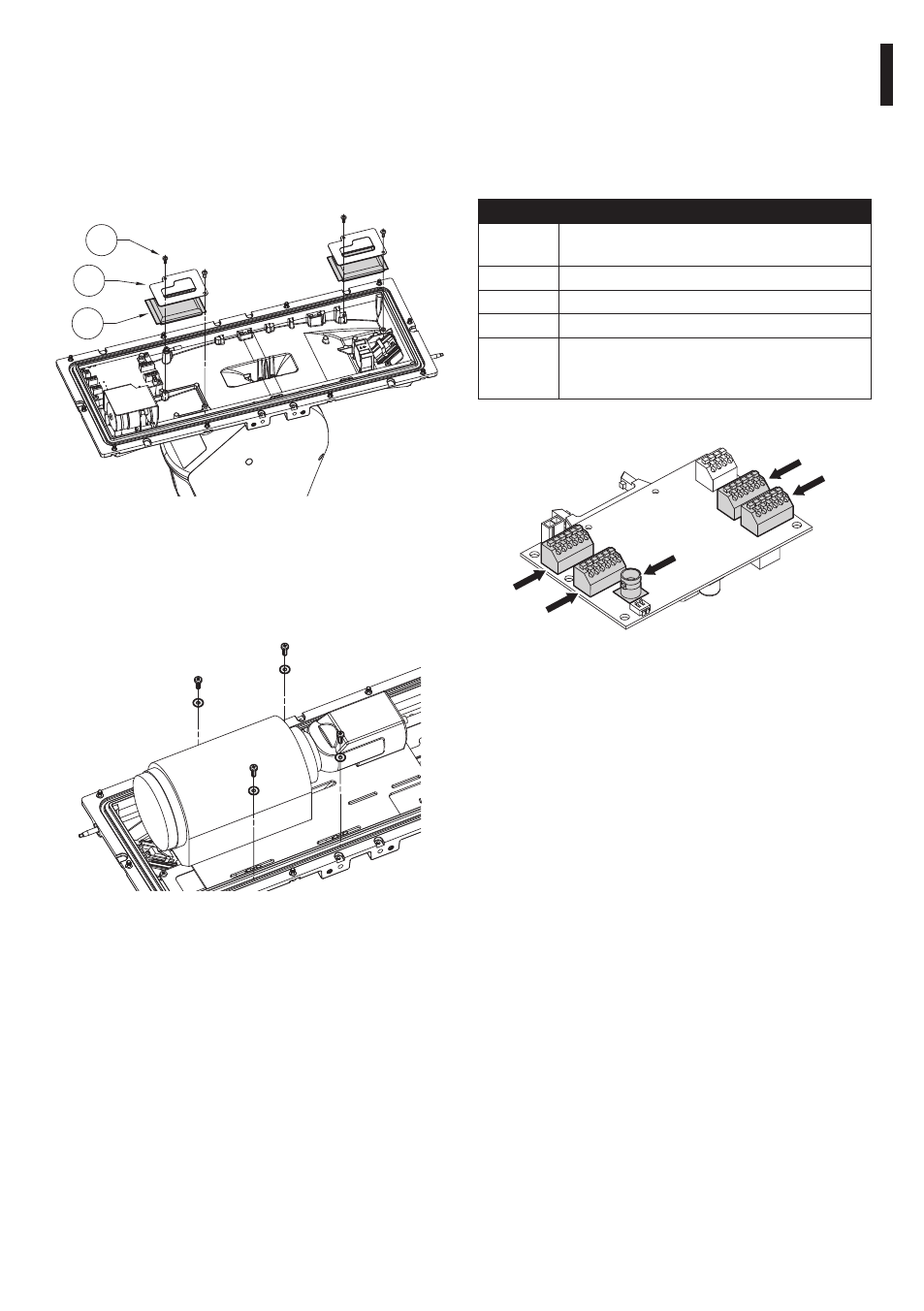

7.1.2 Connection of the camera and
motorised lens
7.1.2.1 Motorised lens PTZ board
The following is a description of the electronics board
inside the housing, which controls all functions of the
motorised lens.
CODE DESCRIPTION
CN1 BNC connector for connecting the video signal
from the camera
CN2 Motorised lens motor control connector
CN3 Motorised lens potentiometer connector
CN6 Serial connector for controlling the camera
CN7 Camera power supply, clean contact for
activating the camera night mode, additional
lines
Tab. 01
CN7
CN2
CN1
CN6
CN3
Fig. 19
7.1.1.4 Desiccant salt
Insert the 2 desiccant salt sachets (01) in the position
indicated in the illustration, after having taken them
out from the transparent packaging and folding them
in half.
Fasten the sachets by means of the plates (02) and
screws supplied (03).
01
02
03
Fig. 17
7.1.1.5 Positioning of the inner slide
Shift the inner slide with lens and camera already
fastened into the wanted position and secure it by
means of the four washers and screws provided.
Fig. 18
