Videotec ULISSE MAXI - Manual (Page 16)

EN - English - I
nstruc
tions manual
14

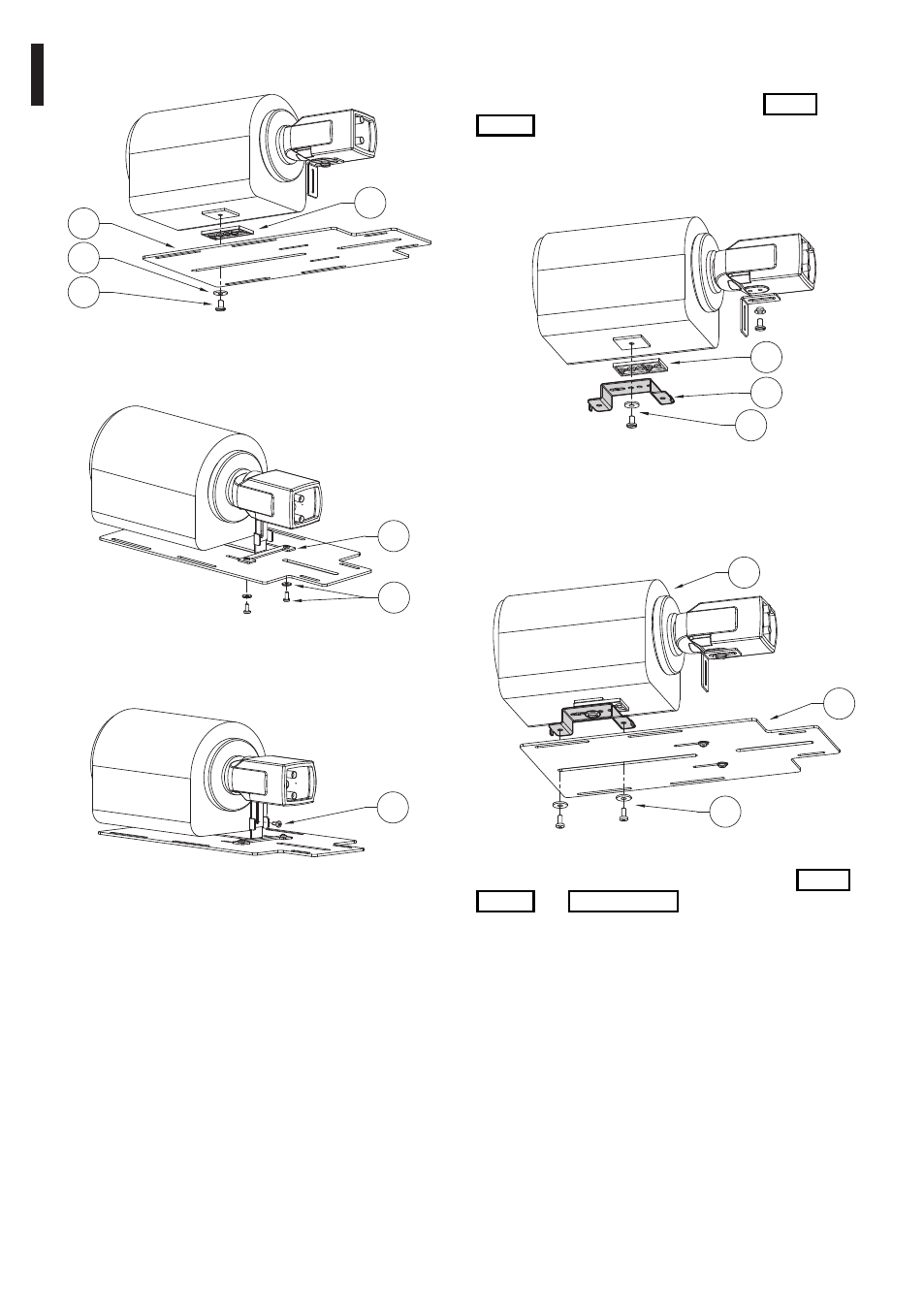

7.1.1.3 Positioning of the H20 spacer in the
inner slide
Perform the same operations shown in Fig. 11,
page 13.
It is possible to fasten the H20 spacer (02) to the
lens, interposing a plastic spacer (01) of the required
thickness, by means of washer and screw (03).
02
03
01
Fig. 15
Position the lens with the spacer (01) in the inner
slide (02) and fasten the spacer by means of the
washers and screws (03) provided as standard.
03
01
02
Fig. 16
Now proceed with the operations shown in Fig. 13,
page 14 and Fig. 14, page 14.
If necessary, use the additional spacers to correctly
position the camera and lens
01
02
03
04
Fig. 12
Fasten the aluminium plate (01) on the slide by
means of the 2 M4 screws and relative washers (02).
01
02
Fig. 13
Then fasten the two small plates with the M4 screw
(01).
01
Fig. 14
