PowerLine System Controller User Guide
Page | 42
PowerLine User Guide

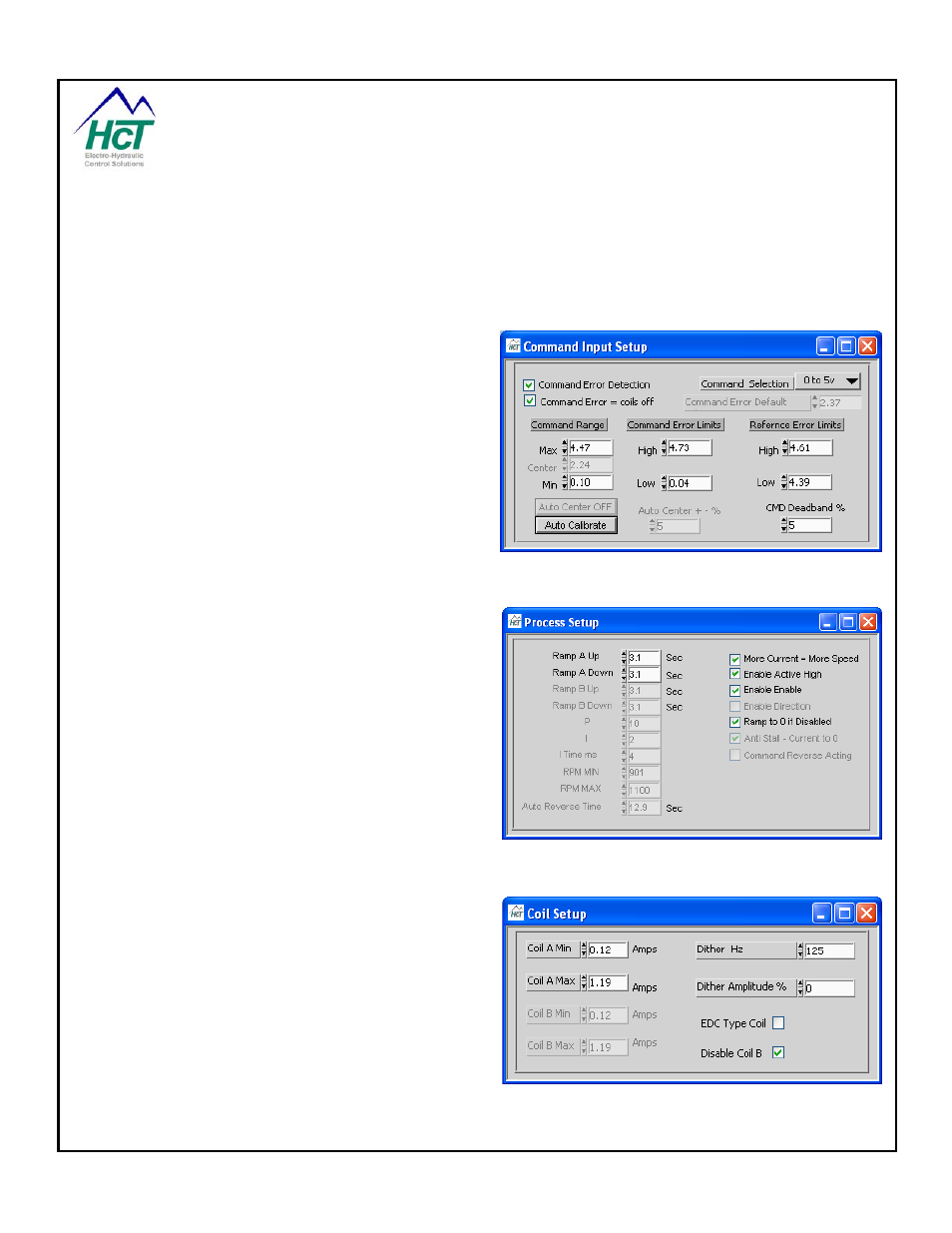

Single Coil Valve Driver
Default File: ValveDriver 1Coil r0.dat
Sets module to Valve Control Mode using the following settings:
Command Input Command Input:
Sets up the Command Input to act as a 0 – 5 Volt input
with a valid range of 0.1 – 4.47 Volts.
Error detection for the Command Input and Reference
Output are active with a Command Error turning off the
coil.
Deadband is redundant in Single Coil Mode.
Process Setup:
Sets the Ramp Rate to 3 seconds Up or Down.
Sets the following options to True (see previous page for
more information):
• Enable the ‘Enable’ select box
• Enable Active High
• Ramp to 0 if Disabled
• More Current = More speed
• All other process options are disabled while in Single
Valve Driver mode.
Coil Setup:
Disable Coil B is set to True: Puts the module into Single
Coil Valve Mode.
Sets Maximum and Minimum Coil Current to 1200mA and
120mA respectively.
In this instance, the Dither has been disabled with a value
of 0%.
